Leeson Motors Motor Washdown Motor-1/2HP, 208-230/460V, 3450RPM, TENV, RIGID C, 1.15 SF, 82.5 Eff.

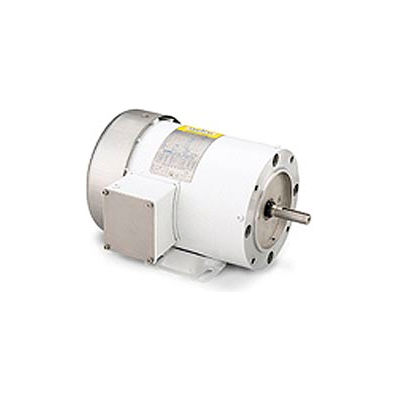

Actual product may differ from image shown

Leeson Motors Motor Washdown Motor-1/2HP, 208-230/460V, 3450RPM, TENV, RIGID C, 1.15 SF, 82.5 Eff.

Item #: WBB228255

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

$941.46 up to 51% OFF

Minimum Quantity: 24

Price: $473.95

Quantity Discount

  • Buy 1-2 $473.95 ea.
  • Buy 3+ $458.95 ea.

Quantity

Customers Also Viewed

Washguard White Epoxy Coated Motor, 3-Phase, TENV: 1/2HP, 3450 RPM, Totally-Enclosed Non-Ventilated (TENV) Enclosure, 56 Frame, RIGID C, 208-230/460V, 3PH, 60HZ, Name Plate Amps 1.7-1.6/.8, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 82.5, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation, Shaft Length: 1-7/8, Shaft Diameter: 5/8.

Enhanced performance in wet, humid areas

  • Durable RUST-OLEUM® white epoxy coating
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Special gaskets, slingers and seals
  • Four endshield drains
  • Moisture-resistant interior components
  • Meets IP55 enclosure protection
  • Suitable for use on VFDs
  • 10:1 ratio for constant or variable torque at 1.0 SF


Product Specifications

  • HORSEPOWER1/2
  • ENCLOSURETENV
  • FRAME56
  • BRANDLeeson
  • MOUNTINGC-Face Rigid
  • MOTOR RPM 60Hz3450
  • RPM3450
  • PHASE3
  • VOLTAGE208-230/460
  • NAMEPLATE AMPS1.7-1.6/.8
  • COMPATIBLE WITH/REPLACESBaldor CWDM3537, Marathon N591
  • HERTZ60
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • CONSTRUCTIONRolled Steel
  • AMBIENT TEMP C40
  • SHAFT DIAMETER5/8
  • SHAFT LENGTH INCHES1-7/8 (4.76 cm)
  • ROTATIONCCW/CW
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT29
  • ULY
  • CSAY
  • LEESON MODEL NO.C6T34VK3HH
  • UPC69172001216
  • DUTYContinuous
  • RPM RANGE3001-3600
  • is_motorYes
  • FL EFFICIENCY82.5
  • CATALOG NUMBER113588.00
  • DESIGNSq Cage Inductor Run
  • BEARING-DRIVE-END6205
  • FL AMPS1.7-1.6/.8
  • MANUFACTURER PART #113588.00
