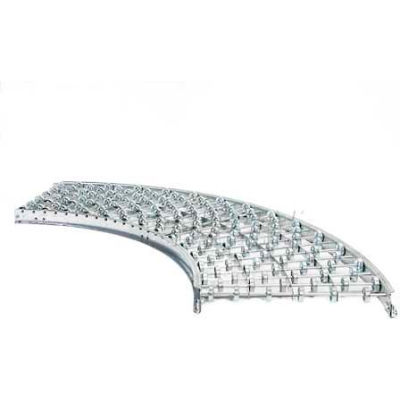

UNEX® SW 18"W 90 Degree Curve Galvanized Steel Skatewheel Conveyor - 16" BF - 18" WPF

UNEX® SW 18"W 90 Degree Curve Galvanized Steel Skatewheel Conveyor - 16" BF - 18" WPF

Item #: WBB1249690

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $1,117.00

Quantity

Customers Also Viewed

UNEX® SW 10'L 24"W Straight Galvanized Steel Skatewheel Conveyor - 22" BF - 20" WPF

UNEX® SW 10'L 24"W Straight Galvanized Steel Skatewheel Conveyor - 22" BF - 20" WPF

UNEX® SW 10'L 18"W Straight Galvanized Steel Skatewheel Conveyor - 16" BF - 16" WPF

UNEX® SW 10'L 18"W Straight Galvanized Steel Skatewheel Conveyor - 16" BF - 16" WPF

UNEX® SW 5'L 18"W Straight Galvanized Steel Skatewheel Conveyor - 16" BF - 16" WPF

UNEX® SW 5'L 18"W Straight Galvanized Steel Skatewheel Conveyor - 16" BF - 16" WPF

Omni Metalcraft Conveyor Box & Parts Counter 115516 with Photo Eye & Digital Display

Omni Metalcraft Conveyor Box & Parts Counter 115516 with Photo Eye & Digital Display

Skatewheel curves are compatible with straight sections, allowing flexibility to conveyor lines. They maintain package orientation due to the differential action of the individual wheels. Zinc-plated steel wheels and galvanized steel frame for corrosion resistance or mill finish aluminum wheels and frame for light weight. Hook and stud couplers for connecting portable sections.
  • 50 lb wheel capacity (steel) or 25 lb wheel capacity (aluminum)
  • Up to 210 lbs per foot load capacity (steel) or 120 lbs per foot (aluminum)
  • 1/4" diameter carbon steel axles, threaded with locknut, spaced on 3" centers
  • 1-15/16" diameter zinc-plated steel wheels
  • C-Channel 2.5" high by 1" leg (7/8" for carton flow) by 12 ga. galvanized steel channel frame


Weights & Dimensions

  • Between Frame Width 16 IN (40.64 cm)
  • Width 18 IN (45.72 cm)
  • Outside Radius 54 IN (137.16 cm)
  • Skate Wheel Diameter 1-15/16 IN (4.92 cm)
  • Inside Radius 36 IN (91.44 cm)
  • Axle Center 2-1/8 IN (5.4 cm)
  • Weight Capacity 60 per Ft.
  • Weight 56 LBS (25.45 kg)

Product Details

  • Assembly Required Assembled
  • Type 90 Degree Curve Conveyor Section
  • Brand Unex
  • Series SW
  • Material Galvanized Steel
  • Manufacturers Part Number 1836SWGS1890
  • Conveyor Section 90 Degree Curve
  • Color Family Silver
  • Wheels per Foot 18

Warranty

  • Warranty 2 YR
