Global Industrial™ Portable, Flexible & Expandable Conveyor Steel Skate Wheels,6'2"-24'8", 24"W

Global Industrial™ Portable, Flexible & Expandable Conveyor Steel Skate Wheels,6'2"-24'8", 24"W

Item #: WB168113

(6)

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $3,079.00

Quantity

Customers Also Viewed

Global Industrial™ Portable Flexible & Expandable 6'2"-24'8" Conveyor Steel Skate Wheels - 18"W

Global Industrial™ Portable Flexible & Expandable 6'2"-24'8" Conveyor Steel Skate Wheels - 18"W

Global Industrial™ Portable Flexible & Expandable 6'2"-24'8" Conveyor - Nylon Wheels - 18"W

Global Industrial™ Portable Flexible & Expandable 6'2"-24'8" Conveyor - Nylon Wheels - 18"W

Global Industrial™ Portable Flexible & Expandable 2'4"-8'11" Conveyor Steel Skate Wheels - 14"W

Global Industrial™ Portable Flexible & Expandable 2'4"-8'11" Conveyor Steel Skate Wheels - 14"W

Global Industrial™ Mobile Single Scissor Lift Table, 32" x 19" Platform, 550 Lb.Capacity

Global Industrial™ Mobile Single Scissor Lift Table, 32" x 19" Platform, 550 Lb.Capacity

Interion® Executive Chair With Headrest, High Back & Fixed Arms, Leather, Black

Interion® Executive Chair With Headrest, High Back & Fixed Arms, Leather, Black

Omni Metalcraft Conveyor Box & Parts Counter 115516 with Photo Eye & Digital Display

Omni Metalcraft Conveyor Box & Parts Counter 115516 with Photo Eye & Digital Display

Global Industrial™ Industrial Duty Pallet Jack Truck, 27"W x 48"L Forks, 5500 Lb. Capacity

Global Industrial™ Industrial Duty Pallet Jack Truck, 27"W x 48"L Forks, 5500 Lb. Capacity

Global Industrial™ PORTABLE FLEXIBLE & EXPANDABLE CONVEYOR

Retracts to 6'2" to Save Space!

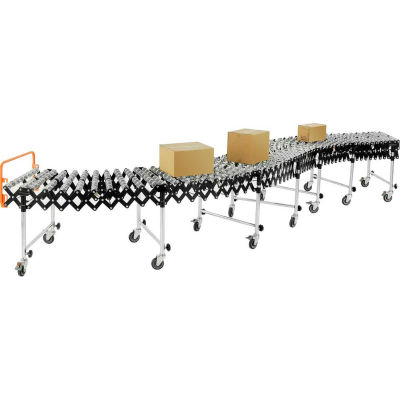

Instantly set up conveyor lines for shipping, receiving, assembly and packaging areas. Flexible, portable gravity conveyor expands from 6'2" to 24'8". Rugged 5/16" steel axles and self-tracking skate wheels with enclosed steel ball bearings offer smooth material flow. 175 lbs. per foot capacity. 1-1/4" (compressed) to 4" (expanded) axle centers for a 7" minimum package size. Seven zinc plated telescopic legs with 4" thermoplastic rubber swivel casters adjust independently from 31-3/4" to 40-1/2" to achieve maximum gravity flow and create banked curves. Units bend around a 27" radius. End legs have locking brakes. Includes convenient box stop and hook couplers to connect additional conveyors. Assembles easily. 1 Year Limited Warranty.

Click here to see our full selection of Portable Conveyors, Flexible Conveyor and Expandable Conveyors.

Product Details

  • Leg Sets per Unit 7
  • Wheel/Roller Material Steel
  • Assembly Required Unassembled
  • Skate Wheels per Axle 8
  • Type Portable Flexible Conveyor
  • Brand Global Industrial
  • Warranty 1 YR
  • Material Steel
  • Manufacturers Part Number 168113
  • Conveyor Section Flexible

Weights & Dimensions

  • Max Leg Height 40-1/2 IN (102.87 cm)
  • Width 24 IN (60.96 cm)
  • Inside Radius 27 IN (68.58 cm)
  • Adjustable Length 6'2 to 24'8 IN
  • Axle Center 4 IN (10.16 cm)
  • Min Leg Height 31-3/4 IN (80.65 cm)
  • Weight Capacity 175 . per ft. LBS
  • Overall Length Range 21'0" to 30'11"
  • Weight 474 LBS (215.45 kg)
Customer Review

5.0

  • 5 Star

    4
  • 4 Star

    2
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Daniel

    Date: September 13, 2019

    Industrial Coneyor
    Your review:
    This industrial conveyor perfectly fit our needs and the product was received within the confirmed delivery date. If you need an industrial conveyor, I do suggest this model.
  • Reviewer: Victor

    Date: April 23, 2019

    Portable Conveyor
    Your review:
    Great product, I've had it for several months now and its a solid item
  • Reviewer: ANDREW

    Date: April 23, 2019

    Time Saver
    Your review:
    This product saved us hours unloading a container. It decreases the amount of people you need as well.
  • Reviewer: Christy

    Date: April 23, 2019

    AWESOME PRODUCT
    Your review:
    We have several containers a week, and this flexible conveyor has help tremendously!! I would definitely recommend this product!!
  • Reviewer: MICHELLE

    Date: April 23, 2019

    CONVEYOR
    Your review:
    WORKS GREAT
  • Reviewer: J-Lok

    Date: April 23, 2019

    Excellent Value and Durable
    Your review:
    This skate wheel conveyor is excellent and very well built for the price. Has many useful features and is very easy to move around. The quality of the unit is much better than previous flexible conveyors we have purchased that cost significantly more. Very good investment.
Product Q & A

There are 2 questions and 2 answers for this product.

  • Can you purchase replacement adjustable legs with locking wheel and or any component that may need to be replaced

    Question Asked By: DON, May 21, 2020

    Answer This Question

    Question Answered By:

    • Product Expert, May 27, 2020

      Hello Don, yes legs set kits with wheels are readily available, as well as replacement skate wheels. Please contact our sales team on the Contact Us Page on our website or by requesting a sales agent via our Live Chat feature. Thank you for your question.

  • Will this conveyer work on stairs?

    Question Asked By: Diane, April 11, 2019

    Answer This Question

    Question Answered By:

    • Product Expert, April 11, 2019

      Hello Diane, we apologize but the ability in question is not suitable for this unit. Thank you for your time.
