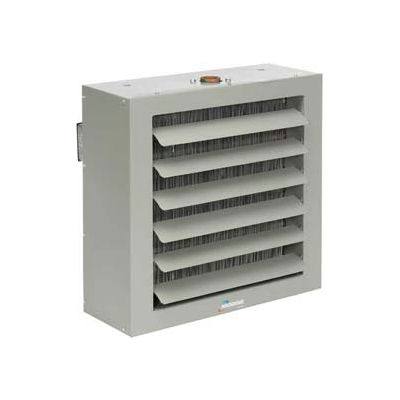

Modine Steam or Hot Water Unit Heater With Explosion Proof Motor HSB108SB06SA, 108000 BTU

Modine Steam or Hot Water Unit Heater With Explosion Proof Motor HSB108SB06SA, 108000 BTU

Item #: WBB631216

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $2,896.00

Quantity

Customers Also Viewed

Modine 108000 BTU Steam or Hot Water Unit Heater With Explosion Proof Motor

The Modine HSB108 Horizontal Hydronic Unit Heater Features:

  • Horizontal airflow
  • Top and bottom steel female pipe connections. This permits the unit to be rotated 360° without piping changes
  • Copper tubes
  • Aluminum fins
  • Adjustable louvers
  • Balanced fan
  • Fan guard
  • Motor and electrical junction box
  • Units have a 2-piece casing for easy coil access
  • HSB models have tapped holes for suspension by threaded rod or optional pipe hanger adapter kit
  • Serpentine copper tube coil design has high resistance to thermal shock, even under high steam pressures
  • Absence of coil headers eliminates potential leaks and increases coil face area without increasing the size of unit
  • Coil designed for greater water carrying capacity with lower friction loss
  • CSA certified.
  • MADE IN U.S.A. 1 Year Limited warranty.

Click below to view the following:

  • BRAND Modine
  • LENGTH INCHES 25-1/2 (64.77 cm)
  • WIDTH INCHES 21 (53.34 cm)
  • HEIGHT INCHES 24-7/16 (62.07 cm)
  • CONNECTION SIZE INCHES 1-1/4 (3.18 cm)
  • FAN DIAMETER INCHES 18 (45.72 cm)
  • MAXIMUM MOUNTING HEIGHT FEET 17 (5.18 m)
  • WEIGHT LBS 74 (33.64 kg)
  • CONSTRUCTION Steel
  • MANUFACTURER PART# HSB108SB06SA
  • INPUT (BTU/H) 2 LB STEAM 60°F ENTERING AIR 108000
  • OUTPUT (BTU) HOT WATER 200°F IN 60°F ENTERING AIR 83700
  • FINAL AIR TEMPERATURE °F (STEAM) 109
  • FINAL AIR TEMPERATURE °F (HOT WATER) 98
  • VOLTAGE 115
  • PHASE 1
  • HORSEPOWER 1/8
  • HEAT THROW FEET 31 (9.45 m)
  • WATER FLOW (GPM) 8.7
  • TYPE Horizontal
  • LISTING, RATING, CERTIFICATION CSA Certified
  • LIMITED WARRANTY YEARS 1
  • ENTERING AIRFLOW CFM 2010
  • HEAT SPREAD FEET --
