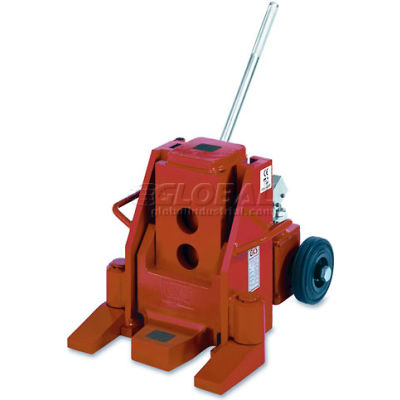

GKS Perfekt® V20 Hydraulic Toe & Saddle Jack 20 Ton Capacity

GKS Perfekt® V20 Hydraulic Toe & Saddle Jack 20 Ton Capacity

Item #: WB985493

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $5,617.00

Quantity

Customers Also Viewed

HYDRAULIC TOE & SADDLE JACK

Toe Jacks are Designed for the Vertical Lifting of Machinery and Equipment.

These jacks are specifically engineered with the highest level of safety and stability to lift heavy machinery for repair or in preparation for transportation. The height adjustable low-profile toe hook and larger surface area top saddle allow for greater flexibility. Industrial rated hand activated hydraulic pump with 7,542 psi working pressure has an integral bypass valve for safety. Cast iron toe ensures years of service and anti-slip pads on the top plate and tow hook offer the highest possible load friction for safe lifting. Coupling adapter is included for remote operation of two or more jacks with a pump. Lowering screw offers precise lowering of the load. Handle rotates 180° to allow operation in tight corners. Machinery jacks meet ANSI/ASME standards and include wheels for easy portability. Inspection certificate included with each jack. 3 Year Limited Warranty on Cast Iron Toe.

Product Specifications

  • LENGTH INCHES18 (45.72 cm)
  • WIDTH INCHES12-1/2 (31.75 cm)
  • HEIGHT INCHES12-1/2 (31.75 cm)
  • CAPACITY20 Tons
  • CAPACITY LBS44000 (20000 kg)
  • COLOR FINISHRed
  • ASSEMBLYAssembled
  • BRANDGKS Perfekt
  • CONSTRUCTIONSteel with Cast Iron Toe
  • HANDLE LENGTH INCHES17 (43.18 cm)
  • LIFTING RANGE INCHES6.3 (16 cm)
  • LIFTING TOE HEIGHT POSITIONS3
  • MANUFACTURERS PART NUMBERV20
  • MAX. TOE LOADING HEIGHT INCHES6.7 (17.02 cm)
  • MIN. TOE LOADING HEIGHT INCHES1.2 (3.05 cm)
  • OPERATIONHydraulic
  • TOP PLATE DIMENSION INCHES4.7 x 4.3
  • TOP PLATE LOADING HEIGHT INCHES12.8 (32.51 cm)
  • TYPEHydraulic Toe & Saddle Jack
  • WEIGHT LBS159 (72.27 kg)
