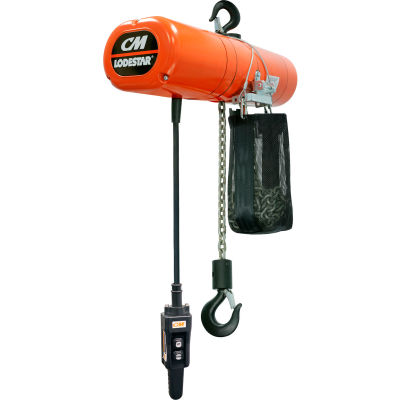

CM Lodestar 1 Ton, Electric Chain Hoist W/ Chain Container, 20' Lift, 16 FPM, 115V

CM Lodestar 1 Ton, Electric Chain Hoist W/ Chain Container, 20' Lift, 16 FPM, 115V

Item #: WBB1299514

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

$5,614.13 up to 15% OFF

Price: $4,776.00

Quantity

Customers Also Viewed

CM Lodestar Electric Chain Hoist w/Chain Container, 1 Ton, 20 Ft. Lift, 16 FPM, 115V

The benefits of superior design:
  • Heavy Duty DC Brake is designed for a long service life. Brake location allows for quick access and easy inspection.
  • Lifetime grease-lubricated Gear Box means no oil change out is required. Precision gears provide better wear and longer life.
  • Clutch located outside the Gear Box allows for easy access which eliminates the need for complete disassembly and reduces downtime.
  • Easy access to the Clutch, Motor, Electrical Control Panel and Brake Assembly.
  • Lifetime grease-lubricated Gear Box and helical gearing ensures efficient operation. Heavy duty rated motors. Hoist workmanship backed by a lifetime warranty.
  • 80% reduction in sound pressure as compared to the classic Lodestar.
  • Clutch is located outside the load path which prevents slipping of the load in an overload condition when brake is not powered.
  • 5 Pocket Lift Wheel provides better chain and lift wheel engagement for smoother lifting and reduced vibration -- which equates to less wear and a longer chain life.
  • Zinc plating to protect chain from environmental conditions.
  • With finger-safe wiring and plug and play connectors, the Control Panel allows for quick voltage change, access to terminal strips and simple fuse installation.
  • Lodestar exceeds H4 requirements, engineered for high duty cycles and the toughest applications.
  • Lifetime grease-lubricated Gear Box means no changing and disposing of hazardous oil.
  • Documented RoHS compliance.
  • Shipped in boxes made of recycled material.
  • Fabric chain container and rigid hook suspension standard on every Lodestar.
  • Lifetime Warranty.
  • Metric rated.
  • CSA/US National Recognized Testing Laboratory (NRTL).
  • Made in the USA.
    OPTIONAL FEATURES:
  • Double DC Brake - Two independent acting DC Brakes for redundant braking. Field Installation Kit available.
  • AC Electrical Brake.
  • Variable speed drive (VFD) or traditional 2 speeds available.
  • Primary and secondary transformer fusing.
  • Rotatable limit switch - Designed for quick reset of limit position.
  • Black phosphate or stainless steel load chain.
  • Metal and stainless steel chain containers.


  • LENGTH INCHES 23-1/2 (59.69 cm)
  • WIDTH INCHES 12-5/8 (32.07 cm)
  • HEIGHT INCHES 7-5/8 (19.37 cm)
  • CAPACITY LBS 2000 (909.09 kg)
  • COLOR FINISH Orange
  • ASSEMBLY Assembled
  • BRAND CM
  • CONSTRUCTION Aluminum
  • HEAD ROOM INCHES 18-9/16 (47.15 cm)
  • HORSEPOWER 1
  • LIFT FEET 20 (6.1 m)
  • LIFT SPEED FEET PER MINUTE 16 (4.88 m)
  • LIMITED WARRANTY Lifetime
  • MANUFACTURERS PART NUMBER 4223NH
  • REEVING 1
  • SERIES Lodestar
  • SUSPENSION Hook
  • TYPE Electric Chain Hoist
  • VOLTAGE 115
  • WEIGHT LBS 141 (64.09 kg)
  • PACKAGE QUANTITY 1
  • UPC 043927389254
