H-Stand Support for Ashland 12" OAW Skatewheel & 10" BF Roller Conveyor - 19-1/2" to 31"H

H-Stand Support for Ashland 12" OAW Skatewheel & 10" BF Roller Conveyor - 19-1/2" to 31"H

Item #: WBB730129

(1)

Enter postal code for delivery date estimate

Shipping to 10465 change

  • 19-1/2 to 31
  • 31 to 43

19-1/2 to 31

Price: $116.95

Quantity

Customers Also Viewed

Tripod Stand for Ashland 12" OAW Skatewheel & 10" BF - 1-3/8" Roller Dia. Conveyor - 16" to 27"H

Tripod Stand for Ashland 12" OAW Skatewheel & 10" BF - 1-3/8" Roller Dia. Conveyor - 16" to 27"H

H-Stand Support for Ashland 18" OAW Skatewheel & 16" BF Roller Conveyor - 19-1/2" to 31"H

H-Stand Support for Ashland 18" OAW Skatewheel & 16" BF Roller Conveyor - 19-1/2" to 31"H

Tripod Stand for Ashland 12" OAW Skatewheel & 10" BF - 1-3/8" Roller Dia. Conveyor - 25" to 43"H

Tripod Stand for Ashland 12" OAW Skatewheel & 10" BF - 1-3/8" Roller Dia. Conveyor - 25" to 43"H

H-Stand Support for Ashland 24" OAW Skatewheel & 22" BF Roller Conveyor - 19-1/2" to 31"H

H-Stand Support for Ashland 24" OAW Skatewheel & 22" BF Roller Conveyor - 19-1/2" to 31"H

H-Stand Support for Ashland 18" OAW Skatewheel & 16" BF Roller Conveyor - 31" to 43"H

H-Stand Support for Ashland 18" OAW Skatewheel & 16" BF Roller Conveyor - 31" to 43"H

H-Stand Support for Ashland 24" OAW Skatewheel & 22" BF Roller Conveyor - 31" to 43"H

H-Stand Support for Ashland 24" OAW Skatewheel & 22" BF Roller Conveyor - 31" to 43"H

Tripod Stand for Ashland 24" OAW Skatewheel & 22" BF - 1-3/8" Roller Dia. Conveyor - 42" to 60"H

Tripod Stand for Ashland 24" OAW Skatewheel & 22" BF - 1-3/8" Roller Dia. Conveyor - 42" to 60"H

Omni Metalcraft 1.9" Roller Conveyor Leg Support 12"W I.D. with 30" to 42"H

Omni Metalcraft 1.9" Roller Conveyor Leg Support 12"W I.D. with 30" to 42"H

Omni Metalcraft 1.9" Roller Conveyor Leg Support 18"W I.D. with 30" to 42"H

Omni Metalcraft 1.9" Roller Conveyor Leg Support 18"W I.D. with 30" to 42"H

Omni Metalcraft 1.9" Roller Conveyor Leg Support 24"W I.D. with 30" to 42"H

Omni Metalcraft 1.9" Roller Conveyor Leg Support 24"W I.D. with 30" to 42"H

Omni Metalcraft 1.9" Roller Conveyor Leg Support 24"W I.D. with 38" to 50"H

Omni Metalcraft 1.9" Roller Conveyor Leg Support 24"W I.D. with 38" to 50"H

Omni Metalcraft 1-3/8" Roller & Skate Wheel Conveyor Leg Support 18"W with 30" to 42"H

Omni Metalcraft 1-3/8" Roller & Skate Wheel Conveyor Leg Support 18"W with 30" to 42"H

Ashland 10' Straight Roller Conveyor - 10" BF - 1-3/8" Roller Diameter - 4-1/2" Axle Centers

Ashland 10' Straight Roller Conveyor - 10" BF - 1-3/8" Roller Diameter - 4-1/2" Axle Centers

H-Stand Support for Ashland 12" OAW Skatewheel & 10" BF Roller Conveyor - 19-1/2" to 31"H

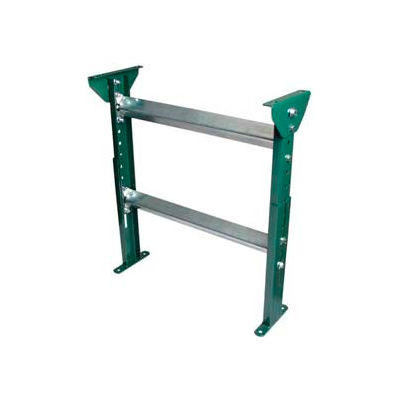

The H15 or 1500 Lbs. Capacity H-stand support may be used with 10" BF (Between the Frame) gravity skatewheel, gravity roller (2-1/2" and 3-1/2" frames), and powered belt conveyor. The H-stand is used for permanent, as opposed to portable conveyor installations. Heights listed are to the top of support. Supports ship unassembled.

Weights & Dimensions

  • Between Frame Width 10 IN (25.4 cm)
  • Max Leg Height 31 IN (78.74 cm)
  • Compatible with Conveyor Frame Size Ashland 2-1/2" x 1" Skatewheel & Roller Conveyor; 3-1/2" x 1-3/8" Roller Conveyo
  • Width 10 IN (25.4 cm)
  • Max Leg Height Range 29 to 38 IN
  • Adjustable Height 19-1/2 to 31 IN
  • Min Leg Height 19-1/2 IN (49.53 cm)
  • Weight Capacity 1500 LBS (681.82 kg)
  • Min Leg Height Range 19 to 22 IN
  • Weight 13.1 LBS (5.95 kg)

Product Details

  • Assembly Required Unassembled
  • Capacity 1,500 Lbs.
  • Type H-Brace Support
  • Package Quantity 1
  • Brand Ashland Conveyor Products
  • Material Steel
  • Warranty 1 YR
  • Style "For Ashland 12"" OAW Skatewheel & 10"" BF Roller Conveyors"
  • Manufacturers Part Number 34494
  • Conveyor Section H-Stand
  • Color Family Green
