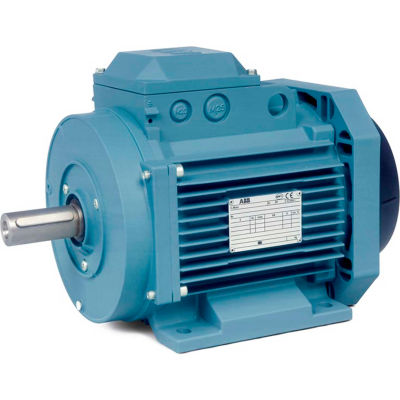

Baldor-Reliance Metric IEC Motor, MM07552-AP,3PH,230/400/460V,3000/3600RPM,.55/.75 KW/HP,50/60HZ,D71

Actual product may differ from image shown

Baldor-Reliance Metric IEC Motor, MM07552-AP,3PH,230/400/460V,3000/3600RPM,.55/.75 KW/HP,50/60HZ,D71

Item #: WBB910587

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $399.95

Quantity

Customers Also Viewed

Baldor-Reliance Metric IEC Motor, MM07552-AP, 3PH, 230/400//460V, 3000//3600RPM, .55/.75 KW/HP, 50//60Hz, D71

Features
  • ABB Process Performance (severe duty) IP55 construction
  • Choice of aluminum (-AP) or cast iron (-PP) frame and endplates
  • MM catalog motors have IE2 efficiency; EMM catalog motors have IE3 efficiency per IEC 60034-30; 6 post terminal block
  • Class F insulated motors with Class B temperature limits
  • 1.0 Service Factor
  • These ratings are marked with DOE compliance number for use on 460 volt, 60 Hz; compliant for both EISA and NRCan
  • Inverter-ready
Application(s)
  • Pumps, compressors, fans, conveyors, and other general purpose three phase applications requiring IEC metric B3 base mount replacements


Product Specifications

  • HORSEPOWER3/4
  • FRAMED71
  • MOUNTINGRigid
  • NAMEPLATE RPM3600
  • PHASE3
  • MOTOR RPM 60Hz3600
  • VOLTAGE230/400//460
  • HERTZ50//60
  • SERVICE FACTOR1
  • RPM RANGE3001-3600
  • FL EFFICIENCY78.4
  • KW/HP.55/.75
  • INSULATION CLASSF
  • FL AMPS1.3
  • 208V AMPS--
  • BRANDBaldor-Reliance
  • C-DIMENSION INCHES9.45 (24 cm)
  • TYPEMetric IEC Motor
  • MANUFACTURER PART #MM07552-AP
  • is_motorYes
