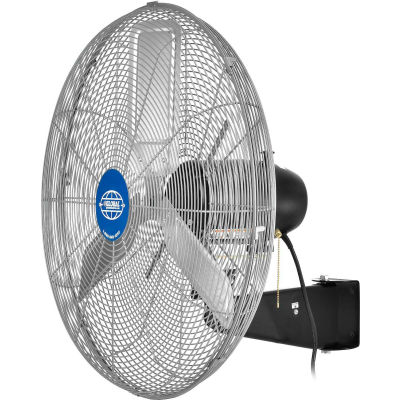

Global Industrial™ 30" Deluxe Industrial Wall Mounted Fan, Oscillating, 10000 CFM,1/2 HP

Global Industrial™ 30" Deluxe Industrial Wall Mounted Fan, Oscillating, 10000 CFM,1/2 HP

Item #: WB258322

(152)

Enter postal code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • Global Industrial™ Fan Cover, Fits 24" and 30" Fan Heads

    $32.95

  • 30 Inch Fan Shroud MERV 6 Air Filter - Global Industrial™ - Pkg Qty 12

    $237.00

Price: $286.95

Quantity

Customers Also Viewed

DELUXE OSCILLATING WALL MOUNT FANS
30 Diameter Fan
Oscillating wall fans mount to the wall for safe, out-of-the-way operation. Wall mounted fans feature a highly efficient 3-Speed Open Air Over PSC-type ball bearing motor. The Push button Style oscillating feature allows for fixed and 80° oscillating fan operation. Industrial fans include a safety clutch oscillating mechanism that prevents jamming. Industrial wall fans include quiet metal fan blades that are balanced for optimum air distribution and enclosed in steel wire guards for safety. Pivot-action fan head allows tilt angle adjustments. Overall depth measures 20 from wall. Includes pull chain control and 12'L, 3-conductor power cord. This unique feature of 12'L power cord helps avoid the use of additional extension cords. UL, cUL Listedand conforms to UL507 Standard.120V. 1 Year Limited Warranty. Horsepower rating based upon maximum speed/load.

Not rated for outdoor use. Global Outdoor Rated Units are available in the link Here

Product Specifications

  • BRANDGlobal Industrial™
  • ASSEMBLYUnassembled
  • CFM HIGH10,000
  • CFM MEDIUM8,750
  • CFM LOW7,300
  • WIDTH INCHES33 (83.82 cm)
  • HEIGHT INCHES31-1/2 (80.01 cm)
  • DEPTH INCHES20 (50.8 cm)
  • FAN DIAMETER INCHES30 (76.2 cm)
  • WEIGHT LBS46 (20.91 kg)
  • MANUFACTURER'S PART NUMBER258322
  • COLOR FINISHBlack / Silver
  • CONSTRUCTIONAluminum / Steel
  • HORSEPOWER1/2
  • FAN TYPEIndustrial
  • RPM HIGH 1,100
  • WATTS320
  • PHASE1
  • AMPS3.2
  • HERTZ (HZ)60
  • VOLTAGE120
  • SPEEDS3
  • MOTOR TYPEOpen Air Over
  • MOTOR INSULATIONClass E
  • DRIVE TYPEDirect Drive
  • DECIBELS (DBA)75
  • OSCILLATING/NON-OSCILLATINGOscillating / Fixed
  • LIMITED WARRANTY YEARS1
  • APPROVALS OR CERTIFICATIONSUL & cETL Listed, OSHA & UL507 Compliant
  • MOUNT TYPEWall
  • POWER CORD TYPESJT 3 Conductor
  • POWER CORD LENGTH FEET12 (3.66 m)
  • BLADE TYPEAluminum
  • BLADE QUANTITY3
  • COLOR FINISH_GROUP1Black
Customer Review

5.0

  • 5 Star

    87
  • 4 Star

    28
  • 3 Star

    5
  • 2 Star

    1
  • 1 Star

    1

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: DARNELL

    Date: November 16, 2020

    very good
    Your review:
    very good
  • Reviewer: PAUL

    Date: November 15, 2020

    Paul Bishop President Mid-Cities-Irrigation
    Your review:
    These are really nice fans.
  • Reviewer: Mark

    Date: October 29, 2020

    Awesome Fan!
    Your review:
    Awesome fan, works better than hoped.
  • Reviewer: ERIK

    Date: October 18, 2020

    Great FAN!
    Your review:
    GREAT FAN! Pushes the air around in our boat barn.
  • Reviewer: JAY

    Date: October 08, 2020

    Great Fan
    Your review:
    Very pleased with this purchase. This fan is extremely quiet. No good mounting instructions but husband is very handy so got it figured out.
  • Reviewer: MARY

    Date: September 24, 2020

    Exactly like picture. Does A great job!
    Your review:
    Just like it looked online. Dies a great job!
  • Reviewer: JAY

    Date: September 10, 2020

    10K CFM IS A LOT OF AIR!
    Your review:
    This fan is awesome! Setting it up is simple and it puts out a ton of air! Money well spent on my new shop's addition.
  • Reviewer: Ciriaco

    Date: September 10, 2020

    Wall industrial fan
    Your review:
    Is an awesome powerful wall fan
  • Reviewer: JOHN

    Date: September 05, 2020

    Buy this fan
    Your review:
    Wonderful. Easy install and great performance Recommend highly. Great for garages.
  • Reviewer: JUNE

    Date: September 05, 2020

    Fan
    Your review:
    Nice
Product Q & A

There are 5 questions and 5 answers for this product.

  • How long is the power cord?

    Question Asked By: Randi, June 10, 2020

    Answer This Question

    Question Answered By:

    • Product Expert, June 11, 2020

      Hello Randi, the power cord is 12 ft. long. Thank you for your question.

  • at what angle can the fan be mounted to ensure oscilating feature does not break. In other words how far can the fan be pointed down? or does it have to be vertcal, can they be pointed down 30 degrees and oscilating feature not break?

    Question Asked By: gabriel Flores, September 30, 2019

    Answer This Question

    Question Answered By:

    • Product Expert, October 01, 2019

      Hello Gabriel, it is recommended that the fan be mounted flush to a wall and not on an angle. The fan head pivots to allow positioning up and down that will not harm the oscillation feature. Thank you for your question.

  • Unfortunately after 3 1/2 years of great service the fan blade has come loose where it mounts to the shaft. Is there a replacement fan blade for this model?

    Question Asked By: Luis, May 04, 2017

    Answer This Question

    Question Answered By:

    • anonymous

      Hello Luis, Unfortuately we don't carry replacement blades for this fan. The only replacement pieces we have are the motor, grille, oscillation arm and the wall mount. You can check that the Set Screw is tightened properly. I have included a link to the manual: http://www.globalindustrial.com/site/images/chain/607050_607051_258321_258322_Industrial-Wall-Fan_Manual.pdf Thank you for your interest in our product!

  • The pull chain came out of the housing in the motor. Is there a way to open the fan motor to reattach the chain?

    Question Asked By: Jay, June 21, 2016

    Answer This Question

    Question Answered By:

    • anonymous

      Hello Jay, Unfortunately, we do not know a method of opening the fan motor and reattaching the chain.

  • Does the swing arm have enough distance to allow oscillation if mounted in a corner?

    Question Asked By: JJ, June 15, 2015

    Answer This Question

    Question Answered By:

    • Product Expert, June 15, 2015

      "No it doesn't. We actually advise for these units NOT to be mounted in corners. Not only does it stop the oscillation of the fan, but it badly effects air flow of the fan due to a minor vacuum being created in the corner where the fan would suck air from. "

You might be interested in this similar product

Global Industrial™ 24" Industrial Wall Mounted Fan, Oscillating, 7525 CFM, 1/4 HP

Item #: 607050

(244)

Ships Same day

$225.95
