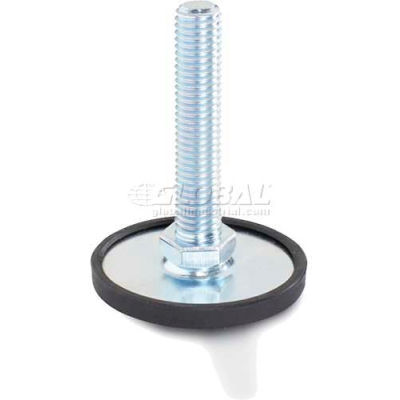

Leveling Foot W/Plastic Cap, 3/8-16 x 3.93" Stud, 1.57" Base Dia, 4.41"H, 1800 Lbs. Cap, Steel

Leveling Foot W/Plastic Cap, 3/8-16 x 3.93" Stud, 1.57" Base Dia, 4.41"H, 1800 Lbs. Cap, Steel

Item #: WBB831765

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • 5/8-11
  • 3/8-16
  • 1/2-13

3/8-16

Price: $14.75

Quantity

Customers Also Viewed

Leveling Foot W/Plastic Cap, 3/8-16 x 3.93" Stud, 1.57" Base Dia, 4.41"H, 1800 Lbs. Cap, Steel

Leveling feet are simple, economically priced components. The static load rating of these feet is limited due to the acceptable load rating of the stud (tensile strength 500/mm²). The values given in the table assume a straight compressive load, perpendicular to the foot. The bending and buckling stress factors often found in the actual application reduce the load rating of the stud, and must be compensated for accordingly. To insure proper leveling mount size, divide the machine weight by the number of feet required. This will equal the pounds or load per leveling foot.

Product Specifications

  • BASE DIAMETER1.57" (3.99 cm)
  • BRANDJ.W. Winco
  • CONSTRUCTIONSteel
  • DESCRIPTIONLeveling Foot w/ Clip-On Rubber Cap
  • MANUFACTURERS PART NUMBER40-40-3/8X16-100-A1-SK
  • HEIGHT4.41"
  • THREADED STUD & HEX NUTZinc Plated Steel w/ Blue Passivated Finish
  • UNIT OF MEASUREMENTInch (Imperial)
  • STUDPivots Up To 6°
  • PLASTIC BASE CAPElastomer Plastic
  • LOAD CAPACITY RANGE (LBS.)1000 - 2500 Lbs.
  • THREAD3/8-16
  • LOAD CAPACITY (LBS.)1800 Lbs.
  • STUD LENGTH3.94" (10.01 cm)
  • COUNTRY OF ORIGINImport
