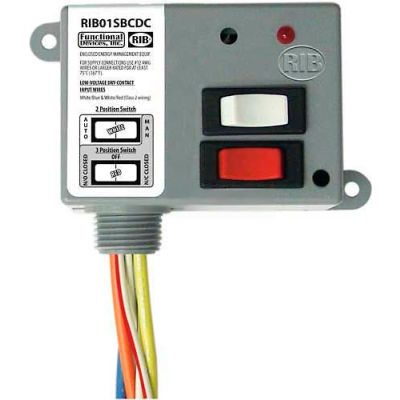

RIB® Dry Contact Input Relay RIB01SBCDC, Enclosed, 120VAC, 20A, SPDT, Override

RIB® Dry Contact Input Relay RIB01SBCDC, Enclosed, 120VAC, 20A, SPDT, Override

Item #: WBB1034346

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

$80.37 up to 40% OFF

Price: $51.95

Quantity Discount

  • Buy 1-5 $51.95 ea.
  • Buy 6+ $47.95 ea.

Quantity

Customers Also Viewed

RIB® Dry Contact Input Relay RIB01SBCDC, Enclosed, 120VAC, 20A, SPDT, Override

The Dry Contact Input RIB series offers all the advantages of the standard RIB line; plus, it can be activated by a wide range of dry-contacts such as thermostats, switches, other relays, solid-state switches, etc. The Dry Contact Input RIB provides the low-voltage (Class 2) power needed to activate the relay (self-powered) - just close the dry-contact input. The power to energize the relay can be brought to the relay on a separate pair of wires along with the control output of the controller, or can be a local power source near the relay. The relay contacts are isolated from the input power and the dry contact input; thus, they can be wired to switch any other power-load or low-voltage load (see specifications for contact ratings). One model can be used for many installations (model RIB21CDC can operate from any voltage from 120Vac - 277Vac; see specifications for the input power of other models).

Product Specifications

  • VOLTAGE120VAC
  • CONTACT TYPESPDT
  • # RELAYS1
  • PILOT DUTY1110 VA
  • WARRANTY YEARS1
  • LENGTH INCHES2.3 (5.84 cm)
  • MOTOR HORSEPOWER2
  • WIRE SIZE16"
  • HUMIDITY RANGE5 To 95 Percent (Noncondensing)
  • BRANDRIB®
  • WIRE RATING600V
  • MANUFACTURERS PART NUMBERRIB01SBCDC
  • APPROVALS OR CERTIFICATIONSUL Listed, UL916, C-UL, CE, RoHS
  • AMPS20
  • WIDTH INCHES3.2 (8.13 cm)
  • EXPECTED RELAY LIFE10 Million Cycles Minimum Mechanical
  • OPERATING TEMPERATURE-30° To 140°F
  • HEIGHT INCHES1.8 (4.57 cm)
  • DESCRIPTIONDry Contact Input Relay W/Override
