Leeson Motors Motor IEC Metric Motor-.5HP, 230/460V, 3410/2790RPM, IP55, B3/B5, 1.15 SF, 74 Eff.

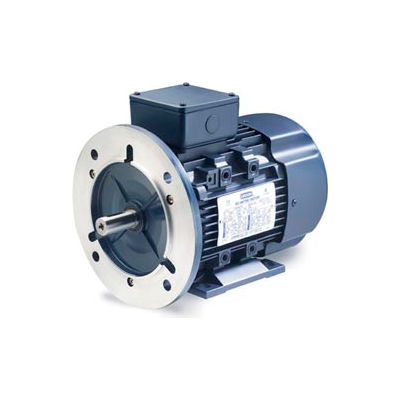

Actual product may differ from image shown

Leeson Motors Motor IEC Metric Motor-.5HP, 230/460V, 3410/2790RPM, IP55, B3/B5, 1.15 SF, 74 Eff.

Item #: WBB228331

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

$562.32 up to 42% OFF

Minimum Quantity: 24

Price: $332.95

Quantity Discount

  • Buy 1-2 $332.95 ea.
  • Buy 3+ $326.95 ea.

Quantity

Customers Also Viewed

Metric(IEC), B3/B5 Flange-Mounted Motor: .5HP, 3410/2790 RPM, Washdown (IP55) Enclosure, 71 Frame, B3/B5, 230/460V, 3PH, 60/50HZ, Name Plate Amps 1.6/.8&1.9/.95, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 74, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation.

Motor meets North American performance standards and EPACT energy efficiency mandates. Features 1.15 service factors and B3/B5 flange mounting. Typically used for replacement on machine tools, textile machinery and other equipment with metric dimensions but requiring the heavy-duty torque and performance of motors designed for use in North America.

Built to meet international standards and features IP55 weatherproof enclosures, 60/50 Hz interchangeability (60Hz 230/460 V & 50Hz 200/400V), dual stamped nameplates, CE mark, and F3 conduit box location.

Product Specifications

  • HORSEPOWER1/2
  • ENCLOSUREIP55
  • FRAME71
  • MOUNTINGFF-Flange Rigid
  • NAMEPLATE RPM3410
  • PHASE3
  • MOTOR RPM 60Hz3410
  • VOLTAGE230/460
  • HERTZ60/50
  • DUTYContinuous
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • AMBIENT TEMP C40
  • ROTATIONCCW/CW
  • WEIGHT13
  • ULY
  • CSAY
  • LEESON MODEL NO.C71T34FZ5CC
  • UPC69172003602
  • RPM RANGE3001-3600
  • COMPATIBLE WITH/REPLACES - 1Baldor MVM5300D, TechTop BL3-AL-TF-71B35-2-B-D-.5, Marathon R386
  • BEARING-DRIVE-END6203
  • FL EFFICIENCY74
  • FL AMPS1.6/.8&1.9/.95
  • BRANDLeeson
  • MANUFACTURER PART #192034.00
  • is_motorYes
  • DESIGNSq Cage Inductor Run
  • ENCLOSURE TYPEIP
  • FRAME MATERIALAluminum
