Price: $146.95
Customers Also Viewed

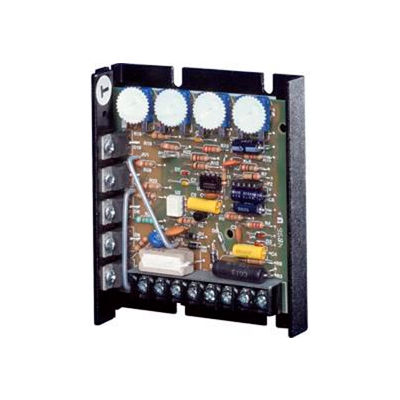

Low Voltage Input DC SCR Drive - Chassis
Dual Voltage 120/240 VAC, 50/60Hz. Adjustable horsepower settings. Barrier terminal strip. Full wave bridge supply. 1% speed regulation, ±1/2% with tach feedback. Adjustable Minimum speed. Adjustable Maximum speed. Adjustable IR Compensation. Adjustable Current Limit. Fixed Acceleration. Optional Adjustable Acceleration. Line voltage compensation. 5K ohm speed pot, knob & dial plate included. 50:1 speed range. Overload capacity: 200% for one minute. Transient voltage protection. Voltage Following mode. Inhibit circuit
Dual Voltage 120/240 VAC, 50/60Hz. Adjustable horsepower settings. Barrier terminal strip. Full wave bridge supply. 1% speed regulation, ±1/2% with tach feedback. Adjustable Minimum speed. Adjustable Maximum speed. Adjustable IR Compensation. Adjustable Current Limit. Fixed Acceleration. Optional Adjustable Acceleration. Line voltage compensation. 5K ohm speed pot, knob & dial plate included. 50:1 speed range. Overload capacity: 200% for one minute. Transient voltage protection. Voltage Following mode. Inhibit circuit
- BRAND Dart Controls
- MANUFACTURERS PART NUMBER 123D-C
- OUTPUT VOLTAGE 0-20 (24 VAC)/0-30 (36 VAC)
- PACKAGE QUANTITY 1
- DRIVE SERIES 125D Series
- INPUT VOLTAGE 24 OR 36 VAC
- HP 1/5 HP @ 30VDC
- HEIGHT INCHES 1.30 (3.3 cm)
- LENGTH INCHES 4.25 (10.8 cm)
- WIDTH INCHES 3.63 (9.22 cm)
