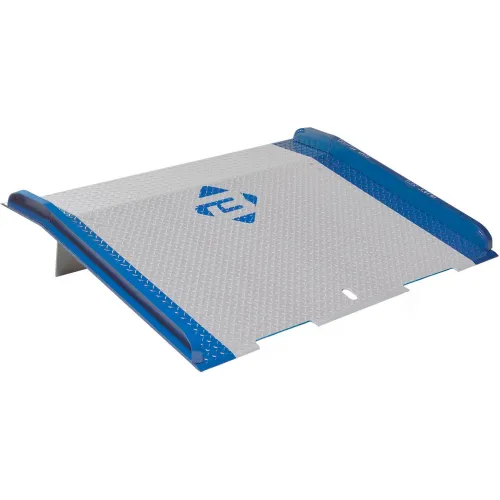

Bluff® 10SB6036 Speedy Board® Dock Board 60 x 36 10,000 Lb. Cap.
Item #: WB985059
Enter postal code for delivery date estimate
Shipping to 10465 change
- 10,000
- 15,000
- 20,000
10,000
Price: $1,704.00
Customers Also Viewed
Bluff® STEEL DOCK BOARD WITH FORKLIFT TINE NOTCHES
Bluff® Speedy Board® Dock Board offers integral Fork Cut-outs for Easy and Safe Maneuvering.
This dock board allows the fork lift driver to move, set and retrieve the dock plate without leaving the seat of the forklift. The leading edge of the board has twin "notched" holes that allow the driver to scoop the board and move it to and from the dock without having to raise lifting loops or secure chains into place. This saves time and increases productivity at high-traffic cycle dock operations, and enhances dock safety since the driver is most at risk when outside the forklift cab. All welded steel construction with anti-skid diamond tread surface provides maximum safety. Loading dock board has tapered curbs that help prevent tire damage and beveled ends offer smooth entry and exit. Safety stop on underside of the plate fits snugly between truck and dock so it will not shift under load. Complies with OSHA spec. 1910.30(A) and ANSI spec. MH30.2.
10,000 Lb. Capacity Dock Board features an 11° bend on the truck end.
NOTE:
CAPACITY is the combined weight of your maximum pallet load and lift truck. Capacity is rated for a single shift with equipment speeds of 3 mph maximum.
WIDTH should be 12" greater than lift truck or load. Usable width is 6" less than overall width.
Stackers and other narrow aisle loaders should not be used on a dock board. Refrigerated trucks require special dock plates; please call for information.
** The HT" DIFFERENCE UP is the height difference above the dock.
Application Height:
Up to 5" Above Dock with Propane or Gas Forklift
Up to 3" Above Dock with Electric Forlift or Pallet Jack
Bluff® Speedy Board® Dock Board offers integral Fork Cut-outs for Easy and Safe Maneuvering.
This dock board allows the fork lift driver to move, set and retrieve the dock plate without leaving the seat of the forklift. The leading edge of the board has twin "notched" holes that allow the driver to scoop the board and move it to and from the dock without having to raise lifting loops or secure chains into place. This saves time and increases productivity at high-traffic cycle dock operations, and enhances dock safety since the driver is most at risk when outside the forklift cab. All welded steel construction with anti-skid diamond tread surface provides maximum safety. Loading dock board has tapered curbs that help prevent tire damage and beveled ends offer smooth entry and exit. Safety stop on underside of the plate fits snugly between truck and dock so it will not shift under load. Complies with OSHA spec. 1910.30(A) and ANSI spec. MH30.2.
10,000 Lb. Capacity Dock Board features an 11° bend on the truck end.
NOTE:
CAPACITY is the combined weight of your maximum pallet load and lift truck. Capacity is rated for a single shift with equipment speeds of 3 mph maximum.
WIDTH should be 12" greater than lift truck or load. Usable width is 6" less than overall width.
Stackers and other narrow aisle loaders should not be used on a dock board. Refrigerated trucks require special dock plates; please call for information.
** The HT" DIFFERENCE UP is the height difference above the dock.
Application Height:
Up to 5" Above Dock with Propane or Gas Forklift
Up to 3" Above Dock with Electric Forlift or Pallet Jack
Weights & Dimensions
- Width 60 in (152.4 cm)
- 14% Grade Height Inches Up 3 in (7.62 cm)
- Length 36 in (91.44 cm)
- 19% Grade Height Inches Up 5 in (12.7 cm)
- Weight Capacity 10,000 lbs
- Weight 207 lbs (94.09 kg)
Product Details
- Assembly Required No
- Type Dock Board
- Brand Bluff Manufacturing
- Material Steel
- Manufacturers Part Number 10SB6036
Customer Review
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: Darron
Date: April 23, 2019
Product Q & A
There are 1 questions and 1 answer for this product.
-
Would 10SB6036 board work to load 40 foot storage container setting flat on asphalt? Thanks
Question Asked By: Bobby, May 17, 2019
Answer This Question
Question Answered By:
-
Product Expert, May 17, 2019
Hello Bobby, unfortunately that application is not suitable. We do however recommend global model 984559, which is a container ramp with a 15,000 pound capacity. Please enter global model 984559 in the global search bar at globalindustrial.com for more product details. Thank you for your question.
-
