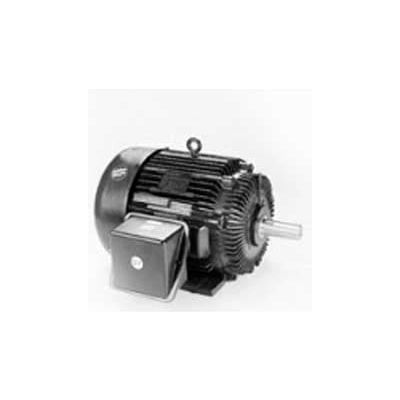

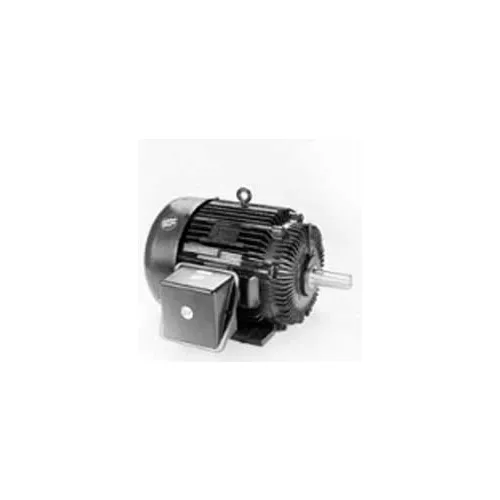

Marathon Motors Severe Duty Motor, W598, 405TSHFS9001, 100HP, 460V, 3600RPM, 3PH, 405TS FR, TEFC

Actual product may differ from image shown

Marathon Motors Severe Duty Motor, W598, 405TSHFS9001, 100HP, 460V, 3600RPM, 3PH, 405TS FR, TEFC

Item #: WBB869945

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $10,933.00

Quantity

Marathon Motors Severe Duty Motor, W598, 405TSHFS9001, 100HP, 460V, 3600RPM, 3PH, 405TS FR, TEFC

Marathon's 3600 Rpm, line of Severe Duty Neman Premium XRI Duty IEEE-841 Hazardous Duty Motor are available in TEFC construction. Horsepower sizes available from stock range from 1 HP through 350 HP.

  • HORSEPOWER 100
  • ENCLOSURE TEFC
  • FRAME 405TS
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 3600
  • RPM 3600
  • PHASE 3
  • VOLTAGE 460
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6313
  • WEIGHT 1300 (590.91 kg)
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER W598
  • RPM RANGE 3001-3600
  • INSULATION CLASS F
  • HAZARDOUS LOCATION DIVISION 2 T2B
  • INVERTER SPEED RANGE Constant 10:1
  • FL AMPS 108
  • OPPOSITE END BEARING SIZE 6313
  • DRIVE END BEARING SIZE 6313
  • ASSEMBLY F1 (F2 Modification Available)
  • BEARING-DRIVE-END 6313
  • ORIENTATION Horizontal
  • IP CODE 56
  • STARTING TYPE Line or Inverter
  • NEMA DESIGN B
  • CE Y
  • FL EFFICIENCY 95
  • is_motor Yes
  • KVA-CODE G
  • 60 HERTZ kW 75
  • 60 HERTZ RPMS 3600
  • MODEL NUMBER 405TSHFS9001
