Marathon Motors Severe Duty Motor, W580, 326THFS9026, 50HP, 460V, 1800RPM, 3PH, 326T FR, TEFC

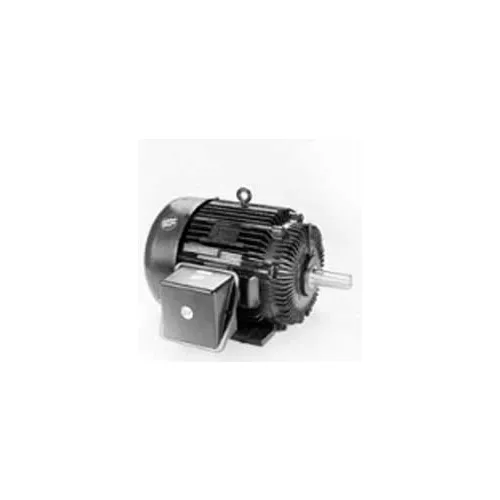

Actual product may differ from image shown

Marathon Motors Severe Duty Motor, W580, 326THFS9026, 50HP, 460V, 1800RPM, 3PH, 326T FR, TEFC

Item #: WBB868424

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $5,549.00

Quantity

Marathon Motors Severe Duty Motor, W580, 326THFS9026, 50HP, 460V, 1800RPM, 3PH, 326T FR, TEFC

Marathon's 1800 Rpm, line of Severe Duty Neman Premium XRI Duty IEEE-841 Hazardous Duty Motor are available in TEFC construction. Horsepower sizes available from stock range from 1 HP through 350 HP.

  • HORSEPOWER 50
  • ENCLOSURE TEFC
  • FRAME 326T
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 3
  • VOLTAGE 460
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6311
  • WEIGHT 757 (344.09 kg)
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER W580
  • RPM RANGE 1701-1800
  • INSULATION CLASS F
  • HAZARDOUS LOCATION DIVISION 2 T2B
  • INVERTER SPEED RANGE Constant 2:1
  • FL AMPS 60
  • OPPOSITE END BEARING SIZE 6311
  • DRIVE END BEARING SIZE 6312
  • ASSEMBLY F1 (F2 Modification Available)
  • BEARING-DRIVE-END 6312
  • ORIENTATION Horizontal
  • IP CODE 56
  • STARTING TYPE Line or Inverter
  • NEMA DESIGN B
  • CE Y
  • FL EFFICIENCY 94.5
  • is_motor Yes
  • KVA-CODE F
  • 60 HERTZ kW 37
  • 60 HERTZ RPMS 1800
  • MODEL NUMBER 326THFS9026
