Marathon Motors Severe Duty Motor, W558, 284TSHFNA9001, 25HP, 460V, 3600RPM, 3PH, 284TS FR, TEFC

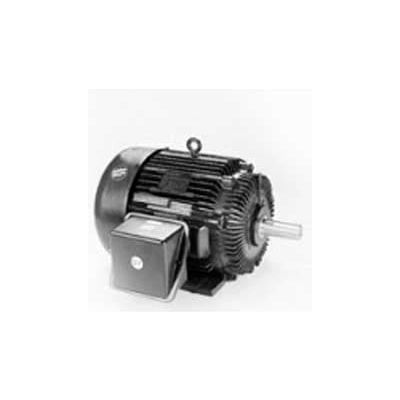

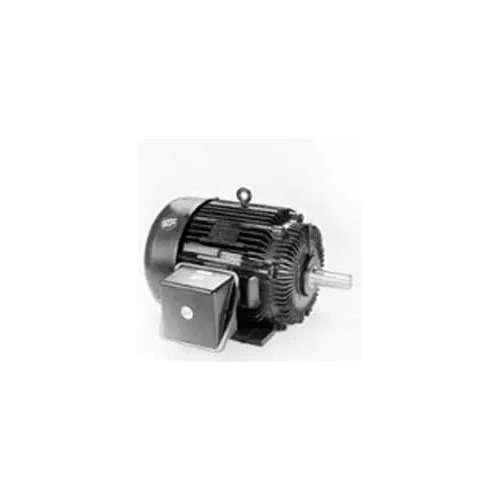

Actual product may differ from image shown

Marathon Motors Severe Duty Motor, W558, 284TSHFNA9001, 25HP, 460V, 3600RPM, 3PH, 284TS FR, TEFC

Item #: WBB869848

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $3,424.00

Quantity

Marathon Motors Severe Duty Motor, W558, 284TSHFNA9001, 25HP, 460V, 3600RPM, 3PH, 284TS FR, TEFC

Marathon's 3600 Rpm, line of Severe Duty Neman Premium XRI Duty IEEE-841 Hazardous Duty Motor are available in TEFC construction. Horsepower sizes available from stock range from 1 HP through 350 HP.

  • HORSEPOWER 25
  • ENCLOSURE TEFC
  • FRAME 284TS
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 3600
  • RPM 3600
  • PHASE 3
  • VOLTAGE 460
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6210
  • WEIGHT 472 (214.55 kg)
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER W558
  • RPM RANGE 3001-3600
  • INSULATION CLASS F
  • HAZARDOUS LOCATION DIVISION 2 T2B
  • INVERTER SPEED RANGE Constant 20:1
  • FL AMPS 28.8
  • OPPOSITE END BEARING SIZE 6210
  • DRIVE END BEARING SIZE 6311
  • ASSEMBLY F1 (F2 Modification Available)
  • BEARING-DRIVE-END 6311
  • ORIENTATION Horizontal
  • IP CODE 56
  • STARTING TYPE Line or Inverter
  • NEMA DESIGN B
  • CE Y
  • FL EFFICIENCY 93
  • is_motor Yes
  • KVA-CODE G
  • 60 HERTZ kW 18.7
  • 60 HERTZ RPMS 3600
  • MODEL NUMBER 284TSHFNA9001
