Actual product may differ from image shown
Price: $1,735.00

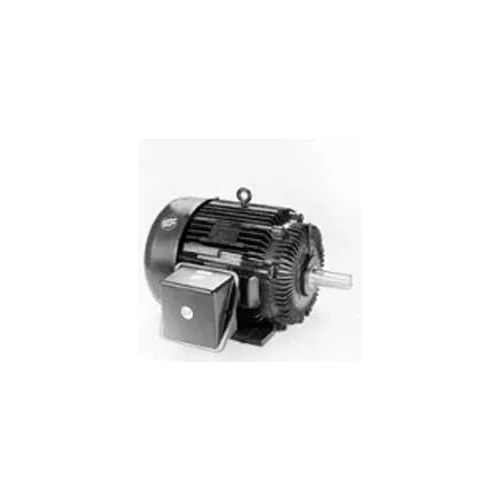

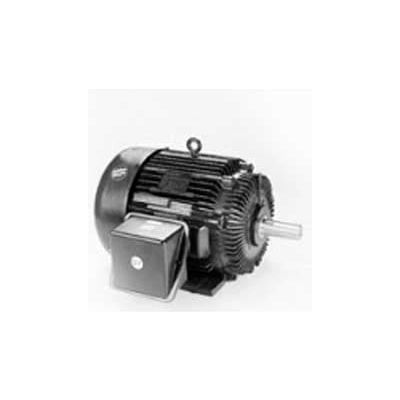

Marathon Motors Severe Duty Motor, W530, 213THTS9001, 7.5HP, 460V, 3600RPM, 3PH, 213T FR, TENV
Marathon's 3600 Rpm, line of Severe Duty Neman Premium XRI Duty IEEE-841 Hazardous Duty Motor are available in TEFC construction. Horsepower sizes available from stock range from 1 HP through 350 HP.
Marathon's 3600 Rpm, line of Severe Duty Neman Premium XRI Duty IEEE-841 Hazardous Duty Motor are available in TEFC construction. Horsepower sizes available from stock range from 1 HP through 350 HP.
- HORSEPOWER 7 1/2
- ENCLOSURE TENV
- FRAME 213T
- BRAND Marathon Motors
- MOUNTING Rigid
- MOTOR RPM 60Hz 3600
- RPM 3600
- PHASE 3
- VOLTAGE 460
- SERVICE FACTOR 1.15
- AMBIENT TEMP C 40
- ENCLOSURE TYPE Totally Enclosed
- OPPOSITE END BEARING 6206
- WEIGHT 191 (86.82 kg)
- UL Recognized Construction
- CSA Y
- DUTY Continuous
- MANUFACTURERS PART NUMBER W530
- RPM RANGE 3001-3600
- INSULATION CLASS F
- HAZARDOUS LOCATION DIVISION 2 T2B
- INVERTER SPEED RANGE Constant 2:1
- FL AMPS 8.9
- OPPOSITE END BEARING SIZE 6206
- DRIVE END BEARING SIZE 6307
- ASSEMBLY F1 (F2 Modification Available)
- BEARING-DRIVE-END 6307
- ORIENTATION Horizontal
- IP CODE 56
- STARTING TYPE Line or Inverter
- NEMA DESIGN B
- CE Y
- FL EFFICIENCY 91.7
- is_motor Yes
- KVA-CODE H
- 60 HERTZ kW 5.6
- 60 HERTZ RPMS 3600
- MODEL NUMBER 213THTS9001
