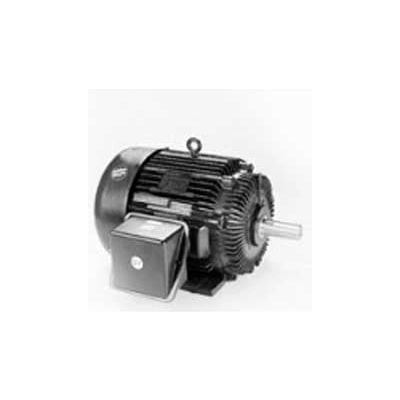

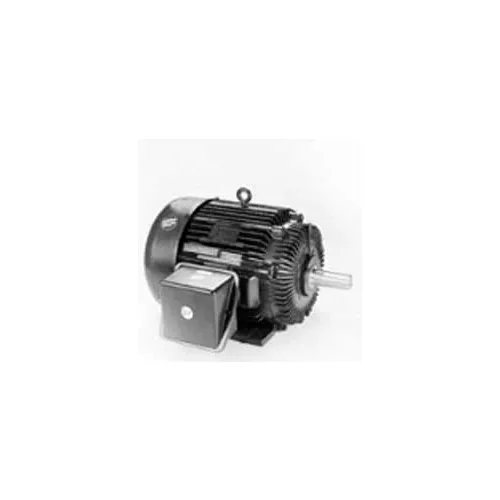

Marathon Motors Severe Duty Motor, W526, 184THFS9030, 5HP, 575V, 1800RPM, 3PH, 184T FR, TEFC

Actual product may differ from image shown

Marathon Motors Severe Duty Motor, W526, 184THFS9030, 5HP, 575V, 1800RPM, 3PH, 184T FR, TEFC

Item #: WBB868301

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $1,225.00

Quantity

Marathon Motors Severe Duty Motor, W526, 184THFS9030, 5HP, 575V, 1800RPM, 3PH, 184T FR, TEFC

Marathon's 1800 Rpm, line of 575 Volts, Severe Duty Neman Premium XRI Duty IEEE-841 Hazardous Duty Motor are available in TEFC construction. Horsepower sizes available from stock range from 1 HP through 200 HP.

  • HORSEPOWER 5
  • ENCLOSURE TEFC
  • FRAME 184T
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 3
  • VOLTAGE 575
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6205
  • WEIGHT 130 (59.09 kg)
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER W526
  • RPM RANGE 1701-1800
  • INSULATION CLASS F
  • HAZARDOUS LOCATION DIVISION 2 T2B
  • INVERTER SPEED RANGE Constant 2:1
  • FL AMPS 5
  • OPPOSITE END BEARING SIZE 6205
  • DRIVE END BEARING SIZE 6206
  • ASSEMBLY F1 (F2 Modification Available)
  • BEARING-DRIVE-END 6206
  • ORIENTATION Horizontal
  • IP CODE 56
  • STARTING TYPE Line or Inverter
  • NEMA DESIGN B
  • CE Y
  • FL EFFICIENCY 90.2
  • is_motor Yes
  • KVA-CODE J
  • 60 HERTZ kW 3.7
  • 60 HERTZ RPMS 1800
  • MODEL NUMBER 184THFS9030
