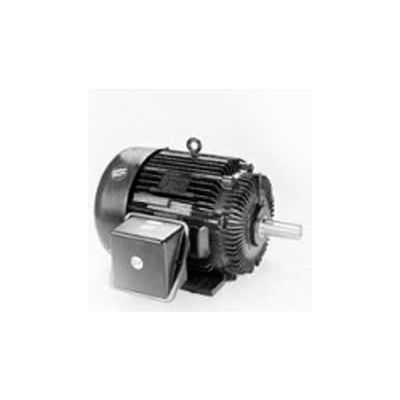

Marathon Motors Severe Duty Motor, W513, 145THTN9027, 2HP, 460V, 1800RPM, 3PH, 145T FR, TENV

Actual product may differ from image shown

Marathon Motors Severe Duty Motor, W513, 145THTN9027, 2HP, 460V, 1800RPM, 3PH, 145T FR, TENV

Item #: WBB869626

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $874.00

Quantity

Marathon Motors Severe Duty Motor, W513, 145THTN9027, 2HP, 460V, 1800RPM, 3PH, 145T FR, TENV

Marathon's 1800 Rpm, line of Severe Duty Neman Premium XRI Duty IEEE-841 Hazardous Duty Motor are available in TEFC construction. Horsepower sizes available from stock range from 1 HP through 350 HP.

  • HORSEPOWER 2
  • ENCLOSURE TENV
  • FRAME 145T
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 3
  • VOLTAGE 460
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6203
  • WEIGHT 66 (30 kg)
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER W513
  • RPM RANGE 1701-1800
  • INSULATION CLASS F
  • HAZARDOUS LOCATION DIVISION 2 T2B
  • INVERTER SPEED RANGE Constant 10:1
  • FL AMPS 3
  • OPPOSITE END BEARING SIZE 6203
  • DRIVE END BEARING SIZE 6205
  • ASSEMBLY F1 (F2 Modification Available)
  • ORIENTATION Horizontal
  • BEARING-DRIVE-END 6205
  • IP CODE 56
  • STARTING TYPE Line or Inverter
  • NEMA DESIGN B
  • CE Y
  • FL EFFICIENCY 85.5
  • KVA-CODE M
  • is_motor Yes
  • 60 HERTZ kW 1.49
  • 60 HERTZ RPMS 1800
  • MODEL NUMBER 145THTN9027
