Actual product may differ from image shown
Price: $17,627.00

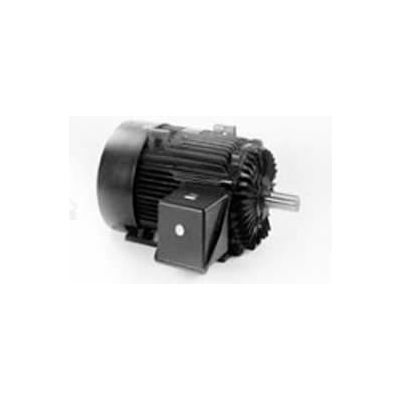

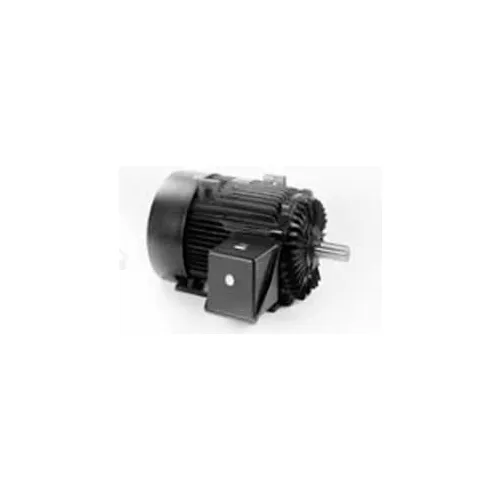

Marathon Motors Severe Duty Motor, E854, 449TTFS6540, 200HP, 460V, 1800RPM, 3PH, 447/9T FR, TEFC
Marathon's Severe Duty motors are available from 1 HP to 500 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions.
Marathon's Severe Duty motors are available from 1 HP to 500 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions.
- HORSEPOWER 200
- ENCLOSURE TEFC
- FRAME 447/9T
- BRAND Marathon Motors
- MOUNTING Rigid
- MOTOR RPM 60Hz 1800
- RPM 1800
- PHASE 3
- VOLTAGE 460
- SERVICE FACTOR 1.15
- AMBIENT TEMP C 40
- ENCLOSURE TYPE Totally Enclosed
- OPPOSITE END BEARING 6318
- WEIGHT 2765 (1256.82 kg)
- UL Recognized Construction
- CSA Y
- DUTY Continuous
- MANUFACTURERS PART NUMBER E854
- RPM RANGE 1701-1800
- INSULATION CLASS H
- HAZARDOUS LOCATION DIVISION 2 T2B
- INVERTER SPEED RANGE Constant 2:1
- FL AMPS 225
- OPPOSITE END BEARING SIZE 6318
- DRIVE END BEARING SIZE NU319
- ASSEMBLY F1 (F2 Modification Available)
- BEARING-DRIVE-END NU319
- ORIENTATION Horizontal
- IP CODE 54
- STARTING TYPE Line or Inverter
- NEMA DESIGN B
- CE Y
- FL EFFICIENCY 96.5
- is_motor Yes
- KVA-CODE G
- 60 HERTZ kW 149
- 60 HERTZ RPMS 1800
- MODEL NUMBER 449TTFS6540
