Marathon Motors Severe Duty Motor, E649, 143TTTN6526, 1HP, 460V, 1800RPM, 3PH, 143T FR, TENV

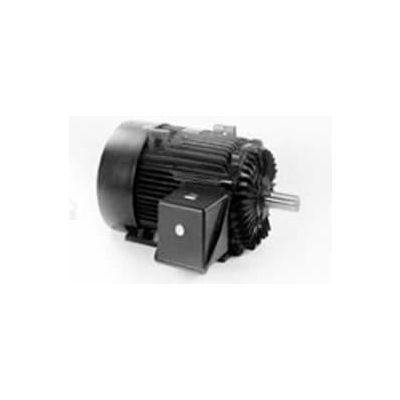

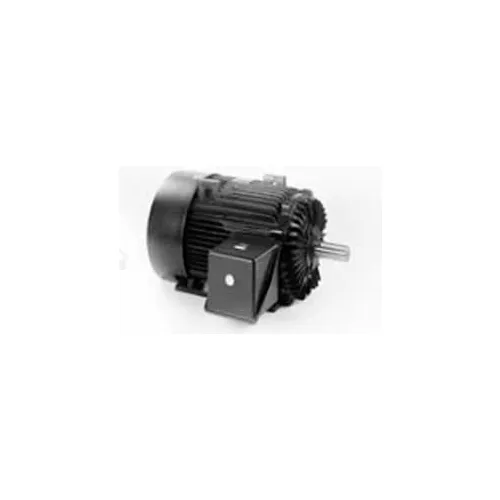

Actual product may differ from image shown

Marathon Motors Severe Duty Motor, E649, 143TTTN6526, 1HP, 460V, 1800RPM, 3PH, 143T FR, TENV

Item #: WBB869351

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $545.00

Quantity

Marathon Motors Severe Duty Motor, E649, 143TTTN6526, 1HP, 460V, 1800RPM, 3PH, 143T FR, TENV

Marathon's Severe Duty motors are available from 1 HP to 500 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions.

  • HORSEPOWER 1
  • ENCLOSURE TENV
  • FRAME 143T
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 3
  • VOLTAGE 460
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6203
  • WEIGHT 57 (25.91 kg)
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER E649
  • RPM RANGE 1701-1800
  • INSULATION CLASS F
  • HAZARDOUS LOCATION DIVISION 2 T2B
  • INVERTER SPEED RANGE Constant 10:1
  • FL AMPS 1.5
  • OPPOSITE END BEARING SIZE 6203
  • DRIVE END BEARING SIZE 6205
  • ASSEMBLY F1 (F2 Modification Available)
  • BEARING-DRIVE-END 6205
  • ORIENTATION Horizontal
  • IP CODE 54
  • STARTING TYPE Line or Inverter
  • NEMA DESIGN B
  • CE Y
  • FL EFFICIENCY 85.5
  • is_motor Yes
  • KVA-CODE M
  • 60 HERTZ kW 0.75
  • 60 HERTZ RPMS 1800
  • MODEL NUMBER 143TTTN6526
