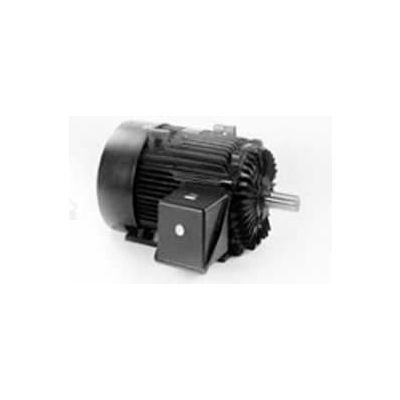

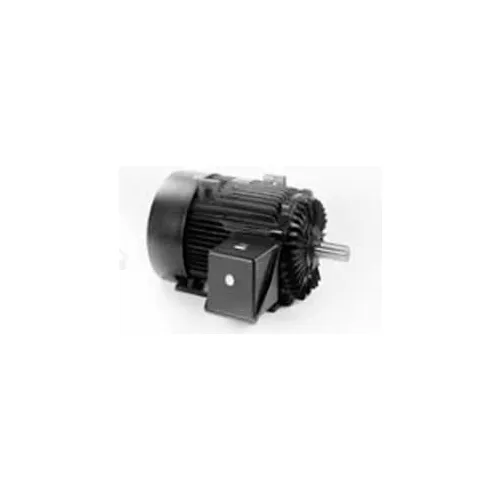

Marathon Motors Severe Duty Motor, E626, 364TTFS6536, 60HP, 460V, 1800RPM, 3PH, 364T FR, TEFC

Actual product may differ from image shown

Marathon Motors Severe Duty Motor, E626, 364TTFS6536, 60HP, 460V, 1800RPM, 3PH, 364T FR, TEFC

Item #: WBB869887

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $6,711.00

Quantity

Marathon Motors Severe Duty Motor, E626, 364TTFS6536, 60HP, 460V, 1800RPM, 3PH, 364T FR, TEFC

Marathon's Severe Duty motors are available from 1 HP to 500 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions.

  • HORSEPOWER 60
  • ENCLOSURE TEFC
  • FRAME 364T
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 3
  • VOLTAGE 460
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6312
  • WEIGHT 1028 (467.27 kg)
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER E626
  • RPM RANGE 1701-1800
  • INSULATION CLASS F
  • HAZARDOUS LOCATION DIVISION 2 T2B
  • INVERTER SPEED RANGE Constant 2:1
  • FL AMPS 70
  • OPPOSITE END BEARING SIZE 6312
  • DRIVE END BEARING SIZE 6314
  • ASSEMBLY F1 (F2 Modification Available)
  • BEARING-DRIVE-END 6314
  • ORIENTATION Horizontal
  • IP CODE 54
  • STARTING TYPE Line or Inverter
  • NEMA DESIGN B
  • CE Y
  • FL EFFICIENCY 95
  • is_motor Yes
  • KVA-CODE G
  • 60 HERTZ kW 45
  • 60 HERTZ RPMS 1800
  • MODEL NUMBER 364TTFS6536
