Marathon Motors Severe Duty Motor, E619, 215TTFS6526, 10HP, 460V, 1800RPM, 3PH, 215T FR, TEFC

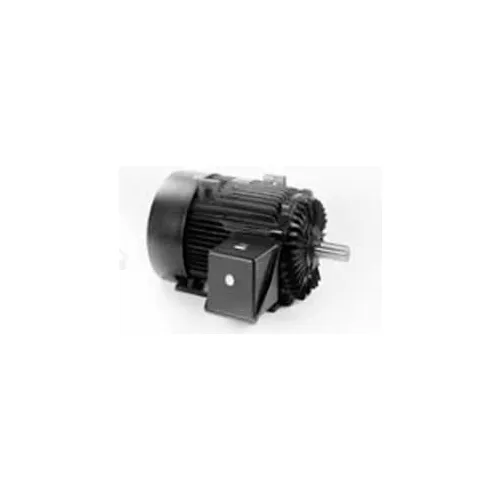

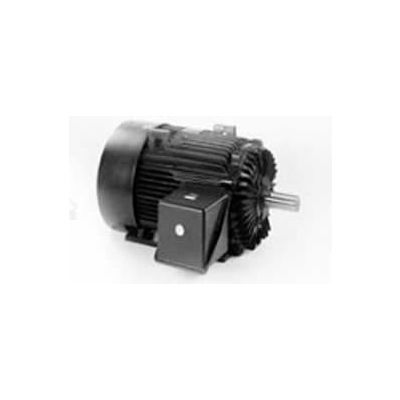

Actual product may differ from image shown

Marathon Motors Severe Duty Motor, E619, 215TTFS6526, 10HP, 460V, 1800RPM, 3PH, 215T FR, TEFC

Item #: WBB868453

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $1,594.00

Quantity

Customers Also Viewed

Marathon Motors Severe Duty Motor, E619, 215TTFS6526, 10HP, 460V, 1800RPM, 3PH, 215T FR, TEFC

Marathon's Severe Duty motors are available from 1 HP to 500 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions.

  • HORSEPOWER 10
  • ENCLOSURE TEFC
  • FRAME 215T
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 3
  • VOLTAGE 460
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6206
  • WEIGHT 224 (101.82 kg)
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER E619
  • RPM RANGE 1701-1800
  • INSULATION CLASS F
  • HAZARDOUS LOCATION DIVISION 2 T2B
  • INVERTER SPEED RANGE Constant 20:1
  • FL AMPS 12.5
  • OPPOSITE END BEARING SIZE 6206
  • DRIVE END BEARING SIZE 6307
  • ASSEMBLY F1 (F2 Modification Available)
  • BEARING-DRIVE-END 6307
  • ORIENTATION Horizontal
  • IP CODE 54
  • STARTING TYPE Line or Inverter
  • NEMA DESIGN B
  • CE Y
  • FL EFFICIENCY 91.7
  • KVA-CODE G
  • is_motor Yes
  • 60 HERTZ kW 7.5
  • 60 HERTZ RPMS 1800
  • MODEL NUMBER 215TTFS6526
