Marathon Motors Severe Duty Motor, E481, 254TTFNA6515, 15HP, 230/460V, 3600RPM, 3PH, 254T FR, TEFC

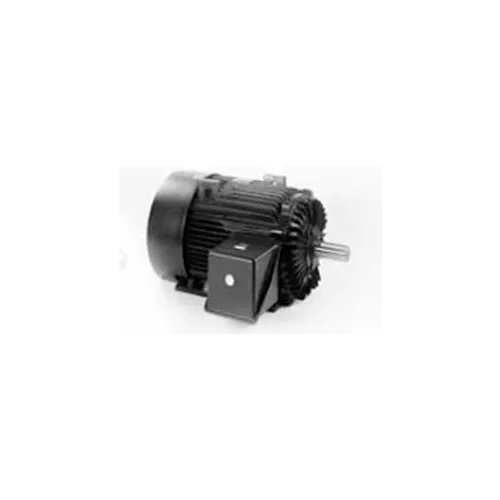

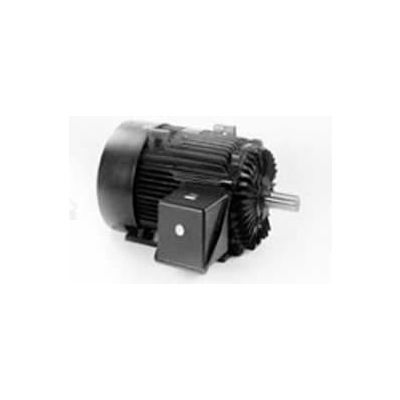

Actual product may differ from image shown

Marathon Motors Severe Duty Motor, E481, 254TTFNA6515, 15HP, 230/460V, 3600RPM, 3PH, 254T FR, TEFC

Item #: WBB869657

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $1,941.00

Quantity

Marathon Motors Severe Duty Motor, E481, 254TTFNA6515, 15HP, 230/460V, 3600RPM, 3PH, 254T FR, TEFC

Marathon's Severe Duty motors are available from 1 HP to 500 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions.

  • HORSEPOWER 15
  • ENCLOSURE TEFC
  • FRAME 254T
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 3600
  • RPM 3600
  • PHASE 3
  • VOLTAGE 230/460
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6210
  • WEIGHT 328 (149.09 kg)
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER E481
  • RPM RANGE 3001-3600
  • INSULATION CLASS F
  • HAZARDOUS LOCATION DIVISION 2 T2B
  • INVERTER SPEED RANGE Constant 20:1
  • FL AMPS 35/17.5
  • OPPOSITE END BEARING SIZE 6210
  • DRIVE END BEARING SIZE 6309
  • ASSEMBLY F1 (F2 Modification Available)
  • BEARING-DRIVE-END 6309
  • ORIENTATION Horizontal
  • IP CODE 54
  • STARTING TYPE Line or Inverter
  • NEMA DESIGN B
  • CE Y
  • FL EFFICIENCY 91.7
  • is_motor Yes
  • KVA-CODE G
  • 60 HERTZ kW 11.2
  • 60 HERTZ RPMS 3600
  • MODEL NUMBER 254TTFNA6515
