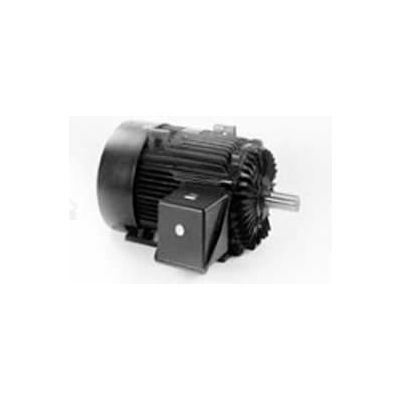

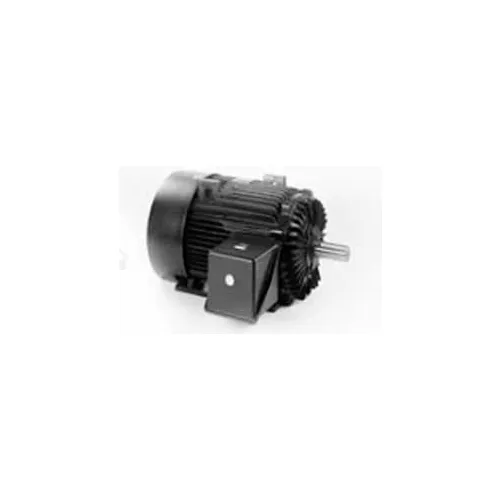

Marathon Motors Severe Duty Motor, E475, 213TTTS6502, 7.5HP, 230/460V, 3600RPM, 3PH, 213T FR, TENV

Actual product may differ from image shown

Marathon Motors Severe Duty Motor, E475, 213TTTS6502, 7.5HP, 230/460V, 3600RPM, 3PH, 213T FR, TENV

Item #: WBB869791

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $1,284.00

Quantity

Marathon Motors Severe Duty Motor, E475, 213TTTS6502, 7.5HP, 230/460V, 3600RPM, 3PH, 213T FR, TENV

Marathon's Severe Duty motors are available from 1 HP to 500 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions.

  • HORSEPOWER 7 1/2
  • ENCLOSURE TENV
  • FRAME 213T
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 3600
  • RPM 3600
  • PHASE 3
  • VOLTAGE 230/460
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6206
  • WEIGHT 190 (86.36 kg)
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER E475
  • RPM RANGE 3001-3600
  • INSULATION CLASS F
  • HAZARDOUS LOCATION DIVISION 2 T2B
  • INVERTER SPEED RANGE Constant 20:1
  • FL AMPS 17.8/8.9
  • OPPOSITE END BEARING SIZE 6206
  • DRIVE END BEARING SIZE 6307
  • ASSEMBLY F1 (F2 Modification Available)
  • BEARING-DRIVE-END 6307
  • ORIENTATION Horizontal
  • IP CODE 54
  • STARTING TYPE Line or Inverter
  • NEMA DESIGN B
  • CE Y
  • FL EFFICIENCY 90.2
  • is_motor Yes
  • KVA-CODE H
  • 60 HERTZ kW 5.60
  • 60 HERTZ RPMS 3600
  • MODEL NUMBER 213TTTS6502
