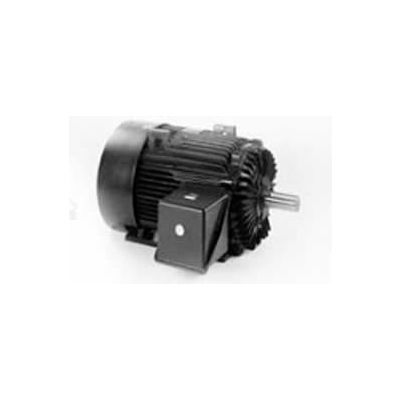

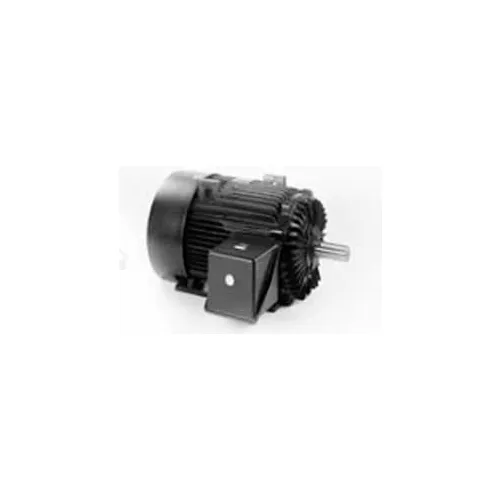

Marathon Motors Severe Duty Motor, E472, 184TTFS6810, 5HP, 230/460V, 3600RPM, 3PH, 184T FR, TEFC

Actual product may differ from image shown

Marathon Motors Severe Duty Motor, E472, 184TTFS6810, 5HP, 230/460V, 3600RPM, 3PH, 184T FR, TEFC

Item #: WBB868131

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $1,162.00

Quantity

Marathon Motors Severe Duty Motor, E472, 184TTFS6810, 5HP, 230/460V, 3600RPM, 3PH, 184T FR, TEFC

Marathon's Severe Duty motors are available from 1 HP to 500 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions.

  • HORSEPOWER 5
  • ENCLOSURE TEFC
  • FRAME 184T
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 3600
  • RPM 3600
  • PHASE 3
  • VOLTAGE 230/460
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6205
  • WEIGHT 127 (57.73 kg)
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER E472
  • RPM RANGE 3001-3600
  • INSULATION CLASS H
  • HAZARDOUS LOCATION DIVISION 2 T2B
  • INVERTER SPEED RANGE Constant 20:1
  • FL AMPS 11.8/5.9
  • OPPOSITE END BEARING SIZE 6205
  • DRIVE END BEARING SIZE 6206
  • ASSEMBLY F1 (F2 Modification Available)
  • BEARING-DRIVE-END 6206
  • ORIENTATION Horizontal
  • IP CODE 54
  • STARTING TYPE Line or Inverter
  • NEMA DESIGN B
  • CE Y
  • FL EFFICIENCY 89.5
  • is_motor Yes
  • KVA-CODE J
  • 60 HERTZ kW 3.7
  • 60 HERTZ RPMS 3600
  • MODEL NUMBER 184TTFS6810
