Global Industrial™ S56X4 Tri Sure Male Buttress to 2" Female BSP Pipe Thread

Global Industrial™ S56X4 Tri Sure Male Buttress to 2" Female BSP Pipe Thread

Item #: WBB700363

(12)

Enter postal code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • Global Industrial™ S56X4 Tri Sure Male Buttress to 2" Female BSP Pipe Thread
  • Global Industrial™ Elastic Polyethylene Drum Cover for 55 Gallon Drum - Pkg Qty 100

    $337.00

  • Oil-Dri® Universal Bonded Drum Top Pads - 22" Dia. - 3.2 Gallon Capacity - 10 Pads per Bale

    $58.95

Price: $12.00

Quantity

Customers Also Viewed

Global Industrial™ S64X5 American Male Buttress to 2" Female BSP Pipe Thread

Global Industrial™ S64X5 American Male Buttress to 2" Female BSP Pipe Thread

Global Industrial™ S70X6 European Male Buttress to 2" Female BSP Pipe Thread

Global Industrial™ S70X6 European Male Buttress to 2" Female BSP Pipe Thread

Action Pump High-Viscosity Hand Operated Lever-Action Drum Pump 3006

Action Pump High-Viscosity Hand Operated Lever-Action Drum Pump 3006

Action Pump Siphon Drum Pump 4005 for Light Oil, Kerosene, Water Based Chemicals

Action Pump Siphon Drum Pump 4005 for Light Oil, Kerosene, Water Based Chemicals

Action Pump Piston Pump THP-ST for Aggressive Chemicals

Action Pump Piston Pump THP-ST for Aggressive Chemicals

55 Gallon Triangular Drum Dolly Polyolefin Casters - T3P

55 Gallon Triangular Drum Dolly Polyolefin Casters - T3P

Global Industrial™ Drum Dolly for 55 Gallon Drum - Steel Wheels 1000 Lb. Capacity

Global Industrial™ Drum Dolly for 55 Gallon Drum - Steel Wheels 1000 Lb. Capacity

Global Industrial™ 2 Drum Spill Containment Modular Platform

Global Industrial™ 2 Drum Spill Containment Modular Platform

Wesco® Drum Bung Plug Wrench 272086

Wesco® Drum Bung Plug Wrench 272086

Antiseptic - Alcohol Isopropyl Rubbing Compound - 70% - Pkg Qty 4

Antiseptic - Alcohol Isopropyl Rubbing Compound - 70% - Pkg Qty 4

Global Industrial™ Easy-Steer Drum Cradle 5" & 3" Polyolefin Wheels - For 55 Gal. Steel Drums

Global Industrial™ Easy-Steer Drum Cradle 5" & 3" Polyolefin Wheels - For 55 Gal. Steel Drums

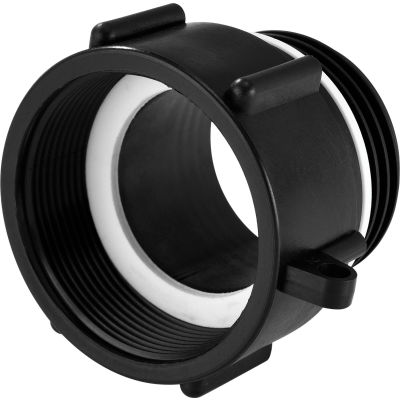

Drum bung adapters create compatible connections for installing pumps on plastic drums.

Its high-quality polypropylene construction is rated to 150 psi and suitable for use with most plastic drum chemical contents

Thread Compatibility Details:

  • S56X4 Tri Sure Male Buttress
  • 56.0mm (2.20") outside diameter and 50.0mm (2.00") inside diameter with 4.0mm (.158") thread pitch (distance between threads)


Refer to Key S56X4 in REFERENCE CHART.

Weights & Dimensions

  • Thread 56mm (2.2) O.D. x 4 Male Drum Thread to 2 Female NPT Pipe Thread IN

Product Details

  • Assembly Required Assembled
  • Description S56 x 4 Tri Sure Male Buttress to 2" Female BSP Pipe Thread
  • Type Drum Bung Adapters
  • Reference Chart S56X4
  • Package Quantity 1
  • Brand Global Industrial
  • Product Type Accessory
  • Material Polypropylene
  • Style 15, 30 or 55 Gallon Drums
  • Seal Material LDPE
  • Manufacturers Part Number B700363
  • Color Family Black
  • Body Material Polypropylene
Customer Review

5.0

  • 5 Star

    12
  • 4 Star

    0
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: RAYMOND

    Date: June 18, 2022

    Rain Barrel Project
    Your review:
    I needed to connect 55 gallon blue plastic barrels to standard 2" PVC thread. This adapter worked perfectly!
  • Reviewer: Peter

    Date: April 27, 2021

    2" BSP threads fit with 2" NPT
    Your review:
    I was a bit unsure about the female side of this adapter, as it was referred to as 2" NPT in some places, but also clearly marked 2" BSP. But after receiving the adapters, I tried a 2" male ABS NPT thread and it screws smoothly in. It didn't hit a spot where the threads themselves locked, but it looks like you could screw a nipple all the way down to the washer at the bottom, or if you are using a a 2" NPT adapter with a shoulder, you could put an o-ring or some sealant around the outside and it should hold fine, at least for low-pressure applications. I bought these for insulated fish totes (Smak, but should also work with Daco and similar), and they are a better price than the Daco/Saeplast adapters to plumb the fish tote as a live well.
  • Reviewer: Fabian

    Date: September 18, 2019

    proper
    Your review:
    Perfect fit, strong and durable.
  • Reviewer: Laura

    Date: May 17, 2019

    works when other things didn't
    Your review:
    We received a barrel made in Mexico or Europe with product in it and our pumps didn't thread properly. This adapter was perfect the moment we put it on. Highly recommend.
  • Reviewer: JOSH

    Date: April 23, 2019

    I had a hard time finding this adapter!
    Your review:
    Global is the only place I found this piece! Its the right part I ordered and is well made!
  • Reviewer: TIM

    Date: April 23, 2019

    adaptors
    Your review:
    we got these due to the OEM of our chemical stopped supplying them. Due to what I call weird thread pitch Global was the only one that carried this, that I found easily.
  • Reviewer: MIGUEL

    Date: April 23, 2019

    work great
    Your review:
    works great
  • Reviewer: Spencer

    Date: April 23, 2019

    Perfect fit
    Your review:
    Looked for three weeks to find a buttress that would join my pump to the plastic barrel. Wish I had known about you guys earlier! Thank you.
  • Reviewer: Suzette

    Date: April 23, 2019

    CPP S56 x 4 Tri Sure Male Buttress to 2" Fema
    Your review:
    Works great. It's just what we needed to make our hand pumps work perfectly with the Italian barrels.
  • Reviewer: Suzette

    Date: April 23, 2019

    Tri Sure Male Buttress
    Your review:
    We needed this piece to work with a 55g barrel to a hand-held pump. It's fantastic. Works great. Ordering many more...
