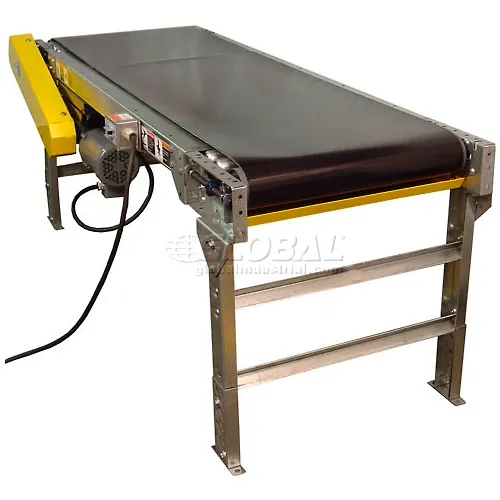

Omni Metalcraft Powered 24"W x 30'L Belt Conveyor without Side Rails BHSE24-0-32-F60-0-0.5-4
Item #: WB158915
Not Yet Rated
Enter postal code for delivery date estimate
Shipping to 10465 change
- 10
- 20
- 30
- 40
- 50
30
- 20
- 24
24
Price: $10,006.00
Quantity Discount
- Buy 1-3 $10,006.00 ea.
- Buy 4+ $9,504.00 ea.
Customers Also Viewed
Shipped complete, including controls.

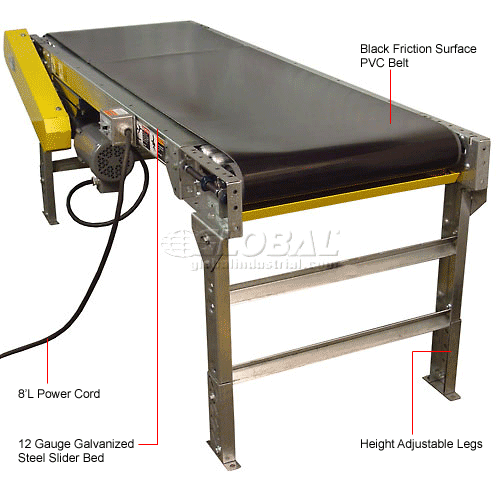

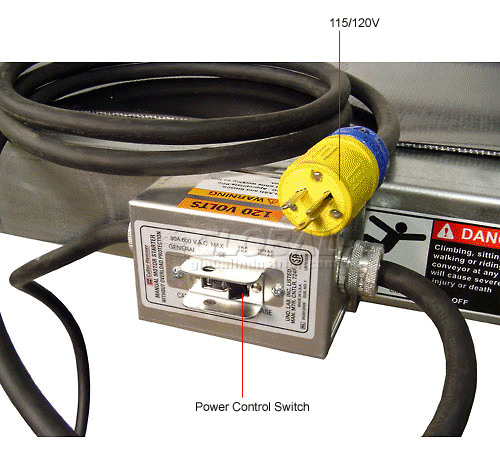

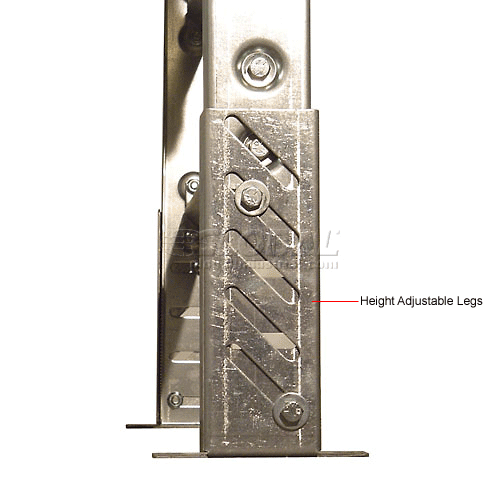

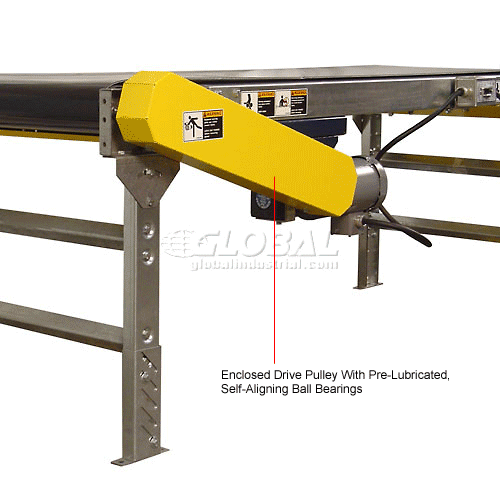

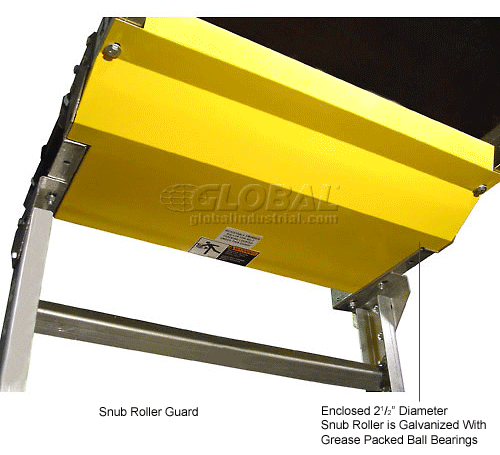

A versatile means of handling a variety of products throughout your facility. Ideal for use in assembly, sorting and inspection. 3-1/2"D x 12 gauge galvanized steel slider bed has black friction surface PVC belt. Includes permanent adjustable leg supports that adjust from 34" to 38" H for added convenience. Standard 60 FPM non-reversing belt speed. Totally enclosed 1/2 HP, 115/230V, 60 Hz single phase motor. Includes 8 ft. power cord and on/off switch for 115V use. Quality features include: crowned and fully lagged 4" drive and tail pulleys with 1-3/16" dia. shafts, 2-1/2" dia. snub roller and 1.9" dia. return rollers, and pre-lubricated, self-aligning ball bearings. Reversible conveyors and replacement parts are available; call for information.
Optional Variable Speed Motor (12-60 FPM) upgrade is available to allow greater flexibility.
Optional Horsepower upgrade is available to increase Capacity (see chart below).
| Load Capacity Lbs. Uniformly Distributed Over Length | ||
| Horsepower | 12"W Belt | 20" - 24"W Belt |
| 1/2 (Standard) | 250 | 160 |
| 3/4 (Optional) | 500 | 390 |
| 1 (Optional) | 740 | 640 |
| 1-1/2 (Optional) | 1230 | 1090 |
| 2 (Optional) | 1680 | 1580 |
Weights & Dimensions

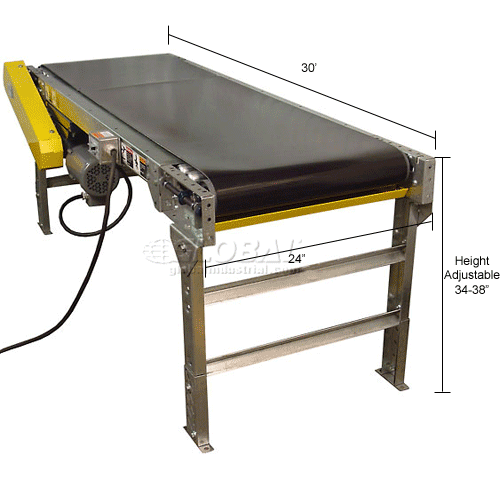

- Belt Width 24 in (60.96 cm)
- Drive Pulley Diameter 4 in (10.16 cm)
- Max Leg Height 38 in (96.52 cm)
- Belt Length 30 ft (9.14 m)
- Length 32 ft (9.75 m)
- Min Leg Height 34 in (86.36 cm)
- Weight Capacity 160 lbs (72.73 kg)
- Overall Bed Width 29 in (73.66 cm)
- Weight 909 lbs (413.18 kg)
Product Details
- Voltage 115/230 V
- Assembly Required Yes
- Horsepower 1/2 HP
- Conveyor Speed 60 FPM
- Type Standard Conveyor
- Brand Omni Metalcraft
- Material Steel
- Style Without Side Rails
- Manufacturers Part Number BHSE24-0-32-F60-0-0.5-4
- Conveyor Section Straight
