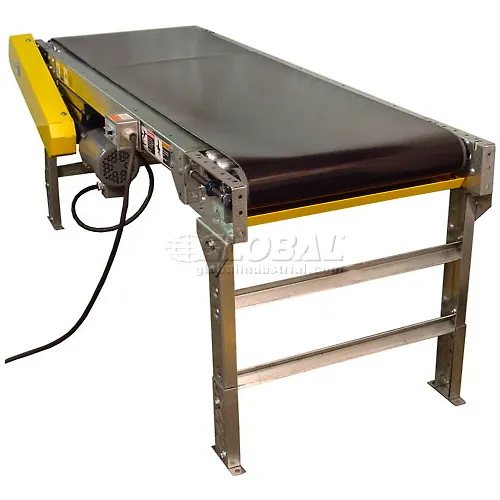

Omni Metalcraft Powered 24"W x 10'L Belt Conveyor with 6"H Side Rails BHSE24-0-12-F60-0-0.5-4-SIDES

Omni Metalcraft Powered 24"W x 10'L Belt Conveyor with 6"H Side Rails BHSE24-0-12-F60-0-0.5-4-SIDES

Item #: WB158912

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

  • 10
  • 20
  • 30
  • 50

10

  • 20
  • 24

24

Frequently Purchased Together

  • Variable Speed Upgrade for 1/2 Horsepower Omni Metalcraft Belt Conveyor

    $406.95

  • Omni Metalcraft Conveyor Box & Parts Counter 115516 with Photo Eye & Digital Display

    $1,556.00

Price: $4,507.00

Quantity

Customers Also Viewed

Omni Metalcraft POWER BELT CONVEYOR WITH 6" HIGH SIDE RAILS

Shipped complete, including controls.

A versatile means of handling a variety of products throughout your facility. Ideal for use in assembly, sorting and inspection. Includes 6"H Side Rails to help prevent cargo from falling during movement. 3-1/2"D x 12 gauge galvanized steel slider bed has black friction surface PVC belt. Includes permanent adjustable leg supports that adjust from 34" to 38" H for added convenience. Standard 60 FPM non-reversing belt speed. Totally enclosed 1/2 HP, 115/230V, 60 Hz single phase motor. Includes 8 ft. power cord and on/off switch for 115V use. Quality features include: crowned and fully lagged 4" drive and tail pulleys with 1-3/16" dia. shafts, 2-1/2" dia. snub roller and 1.9" dia. return rollers, and pre-lubricated, self-aligning ball bearings. Reversible conveyors and replacement parts are available; call for information.

Optional Variable Speed Motor (12-60 FPM) upgrade is available to allow greater flexibility.

Optional Horsepower upgrade is available to increase Capacity (see chart below).

Load Capacity Lbs. Uniformly Distributed Over Length
  Horsepower     12"W Belt     20" - 24"W Belt
  1/2 (Standard) 250 160
  3/4 (Optional) 500 390
  1 (Optional) 740 640
  1-1/2 (Optional) 1230 1090
  2 (Optional) 1680 1580


  • LENGTH FEET 12 (3.66 m)
  • CAPACITY LBS 160 (72.73 kg)
  • ASSEMBLY Unassembled
  • BELT LENGTH FEET 10 (3.05 m)
  • BELT WIDTH INCHES 24 (60.96 cm)
  • BRAND Omni Metalcraft
  • CONSTRUCTION Steel Frame and PVC Belt
  • CONVEYOR SPEED 60 FPM
  • DRIVE PULLEY DIAMETER INCHES 4 (10.16 cm)
  • HORSE POWER 1/2
  • MANUFACTURERS PART NUMBER BHSE24-0-12-F60-0-0.5-4-SIDES
  • MAXIMUM LEG HEIGHT INCHES 38 (96.52 cm)
  • MINIMUM LEG HEIGHT INCHES 34 (86.36 cm)
  • OVERALL BED WIDTH INCHES 29 (73.66 cm)
  • TYPE With 6"H Side Rails
  • VOLTAGE 115/230
  • WEIGHT LBS 557 (253.18 kg)
Customer Review

Not Yet Reviewed

Product Q & A

There are 2 questions and 2 answers for this product.

  • Can I put a 6" diameter drive pulley on this?

    Question Asked By: Eric, March 16, 2018

    Answer This Question

    Question Answered By:

    • anonymous

      Hello Eric, yes a 6" pulley would be available via special order through our sales department at 1.800.645.1232. Thank you for your interest in our product.

  • We need the shaft, sprocket and bearings for the drive roller for this conveyor. Can you email me a price quote.

    Question Asked By: Brad, June 01, 2016

    Answer This Question

    Question Answered By:

    • Product Expert, June 01, 2016

      Brad, We would love to email you a quote. However, we would not want you to post personal information on the website. May I suggest that you call our sales team directly? They can work with you for any product questions you have and provide the best pricing. Please call 188-978-7759 to generate a quote. We thank you for your interest!
