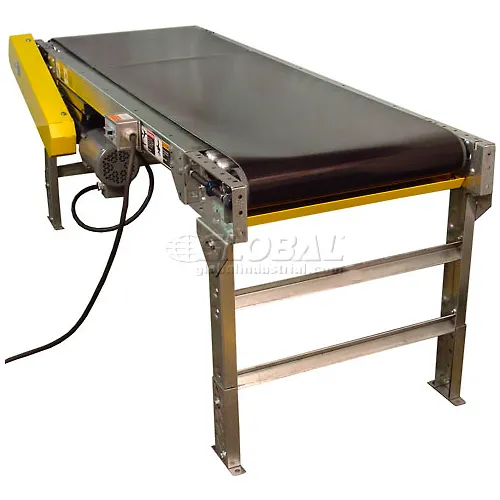

Omni Metalcraft Powered 20"W x 10'L Belt Conveyor without Side Rails BHSE20-0-12-F60-0-0.5-4

Omni Metalcraft Powered 20"W x 10'L Belt Conveyor without Side Rails BHSE20-0-12-F60-0-0.5-4

Item #: WB158901

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

  • 10
  • 20
  • 30
  • 40
  • 50

10

  • 20
  • 24

20

Frequently Purchased Together

  • Variable Speed Upgrade for 1/2 Horsepower Omni Metalcraft Belt Conveyor

    $482.95

  • Omni Metalcraft Conveyor Box & Parts Counter 115516 with Photo Eye & Digital Display

    $1,799.00

Price: $5,172.00

Quantity

Customers Also Viewed

Omni Metalcraft POWER BELT CONVEYOR

Shipped complete, including controls.

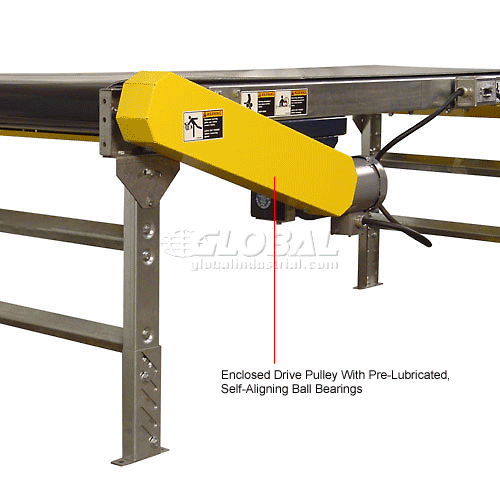

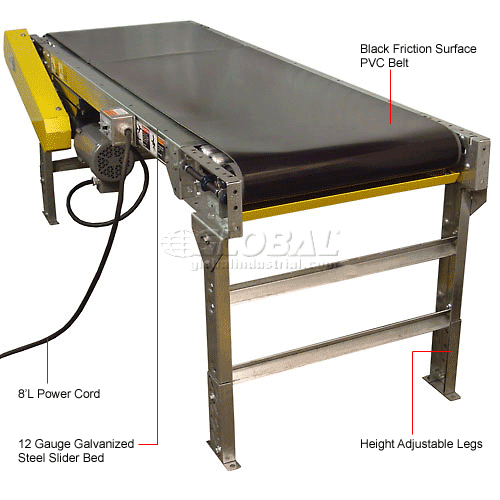

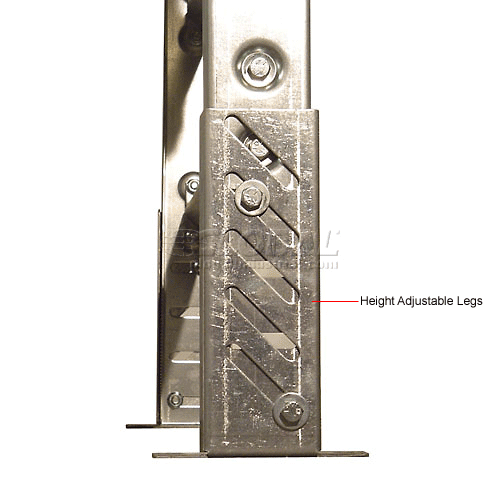

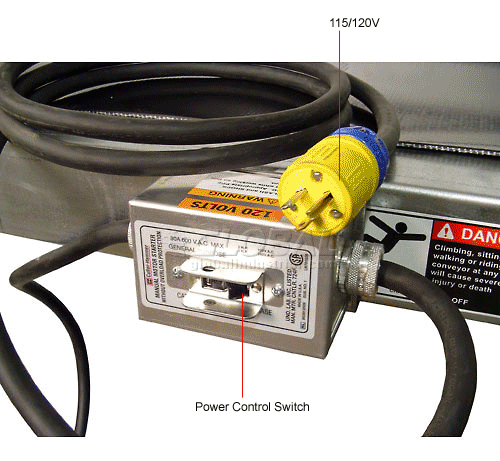

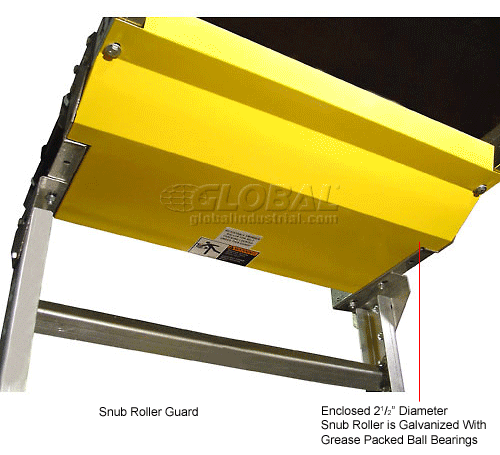

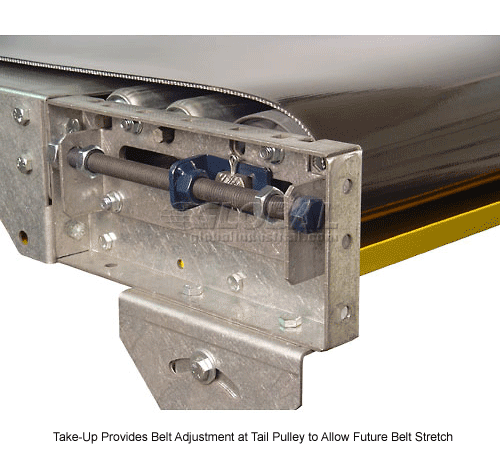

A versatile means of handling a variety of products throughout your facility. Ideal for use in assembly, sorting and inspection. 3-1/2"D x 12 gauge galvanized steel slider bed has black friction surface PVC belt. Includes permanent adjustable leg supports that adjust from 34" to 38" H for added convenience. Standard 60 FPM non-reversing belt speed. Totally enclosed 1/2 HP, 115/230V, 60 Hz single phase motor. Includes 8 ft. power cord and on/off switch for 115V use. Quality features include: crowned and fully lagged 4" drive and tail pulleys with 1-3/16" dia. shafts, 2-1/2" dia. snub roller and 1.9" dia. return rollers, and pre-lubricated, self-aligning ball bearings. Reversible conveyors and replacement parts are available; call for information.

Optional Variable Speed Motor (12-60 FPM) upgrade is available to allow greater flexibility.

Optional Horsepower upgrade is available to increase Capacity (see chart below).

Load Capacity Lbs. Uniformly Distributed Over Length
  Horsepower     12"W Belt     20" - 24"W Belt
  1/2 (Standard) 250 160
  3/4 (Optional) 500 390
  1 (Optional) 740 640
  1-1/2 (Optional) 1230 1090
  2 (Optional) 1680 1580

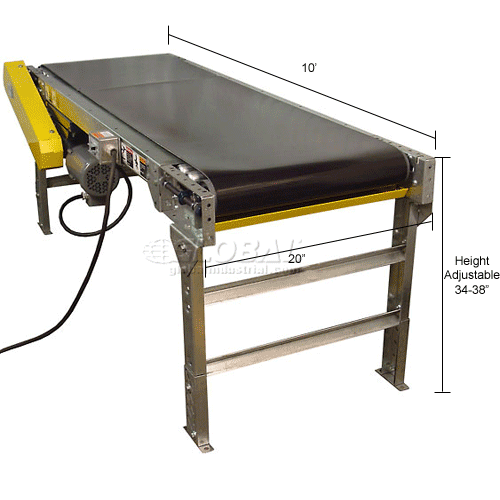

Weights & Dimensions

  • Belt Width 20 in (50.8 cm)
  • Drive Pulley Diameter 4 in (10.16 cm)
  • Max Leg Height 38 in (96.52 cm)
  • Belt Length 10 ft (3.05 m)
  • Length 12 ft (3.66 m)
  • Min Leg Height 34 in (86.36 cm)
  • Weight Capacity 160 lbs (72.73 kg)
  • Overall Bed Width 25 in (63.5 cm)
  • Weight 421 lbs (191.36 kg)

Product Details

  • Voltage 115/230 v
  • Assembly Required Unassembled
  • Horsepower 1/2 HP
  • Conveyor Speed 60 FPM
  • Type Standard Conveyor
  • Brand Omni Metalcraft
  • Material Steel Frame and PVC Belt
  • Style Without Side Rails
  • Manufacturers Part Number BHSE20-0-12-F60-0-0.5-4
