Omni Metalcraft POWER BELT CONVEYOR WITH 6" HIGH SIDE RAILS

Shipped complete, including controls.

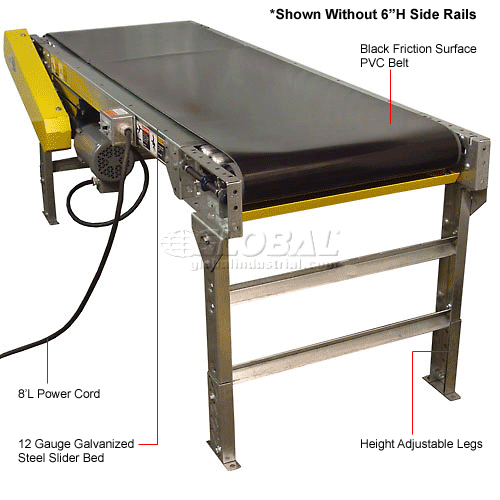

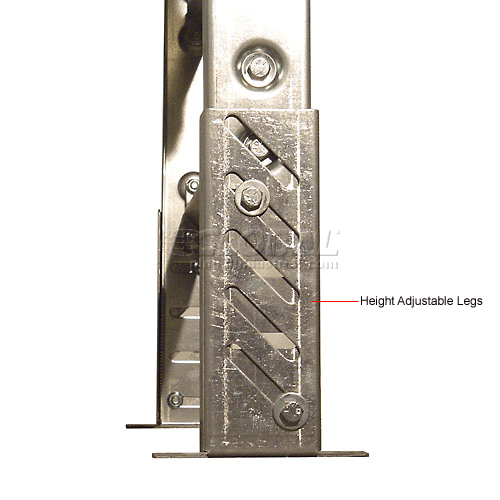

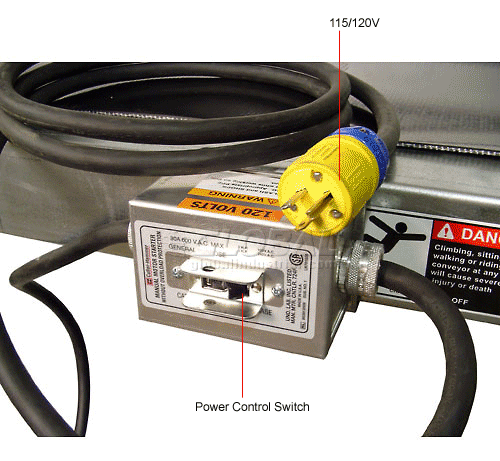

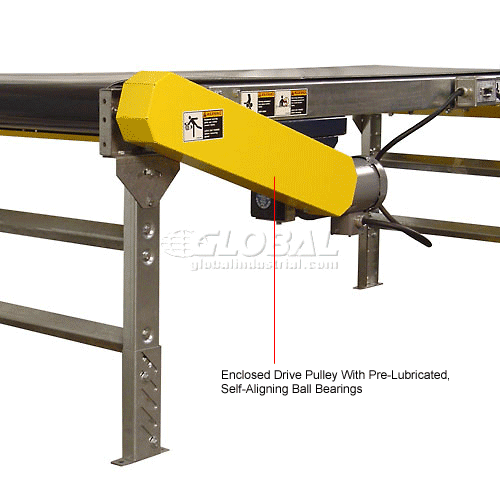

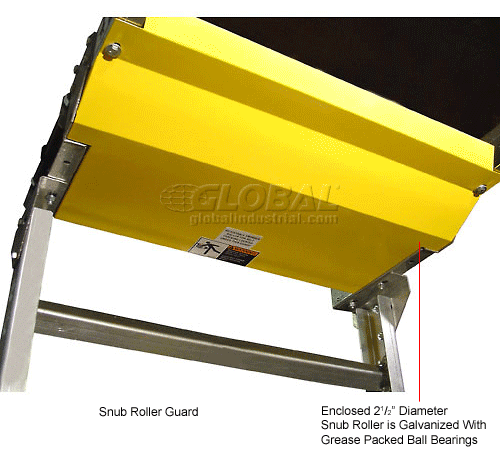

A versatile means of handling a variety of products throughout your facility. Ideal for use in assembly, sorting and inspection. Includes 6"H Side Rails to help prevent cargo from falling during movement. 3-1/2"D x 12 gauge galvanized steel slider bed has black friction surface PVC belt. Includes permanent adjustable leg supports that adjust from 34" to 38" H for added convenience. Standard 60 FPM non-reversing belt speed. Totally enclosed 1/2 HP, 115/230V, 60 Hz single phase motor. Includes 8 ft. power cord and on/off switch for 115V use. Quality features include: crowned and fully lagged 4" drive and tail pulleys with 1-3/16" dia. shafts, 2-1/2" dia. snub roller and 1.9" dia. return rollers, and pre-lubricated, self-aligning ball bearings. Reversible conveyors and replacement parts are available; call for information.

Optional Variable Speed Motor (12-60 FPM) upgrade is available to allow greater flexibility.

Optional Horsepower upgrade is available to increase Capacity (see chart below).

Load Capacity Lbs. Uniformly Distributed Over Length
  Horsepower     12"W Belt     20" - 24"W Belt
  1/2 (Standard) 250 160
  3/4 (Optional) 500 390
  1 (Optional) 740 640
  1-1/2 (Optional) 1230 1090
  2 (Optional) 1680 1580


Weights & Dimensions

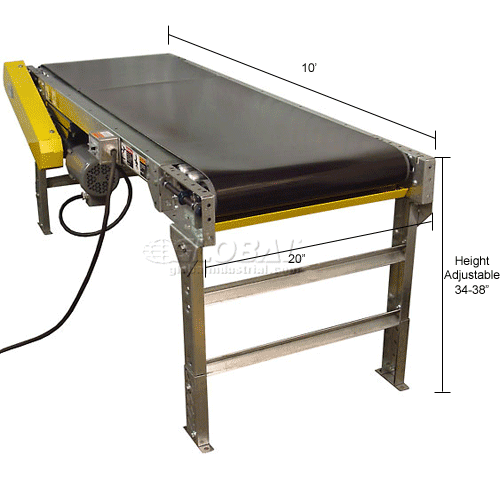

  • Belt Width 20 in (50.8 cm)
  • Drive Pulley Diameter 4 in (10.16 cm)
  • Max Leg Height 38 in (96.52 cm)
  • Belt Length 10 ft (3.05 m)
  • Length 10 ft (3.05 m)
  • Min Leg Height 34 in (86.36 cm)
  • Weight Capacity 160 lbs (72.73 kg)
  • Overall Bed Width 25 in (63.5 cm)
  • Weight 517 lbs (235 kg)

Product Details

  • Voltage 115/230 V
  • Assembly Required Unassembled
  • Horsepower 1/2 HP
  • Conveyor Speed 60 FPM
  • Type Standard Conveyor
  • Brand Omni Metalcraft
  • Material Steel
  • Style "With 6""H Side Rails"
  • Manufacturers Part Number BHSE20-0-12-F60-0-0.5-4-SIDES
  • Conveyor Section Straight
