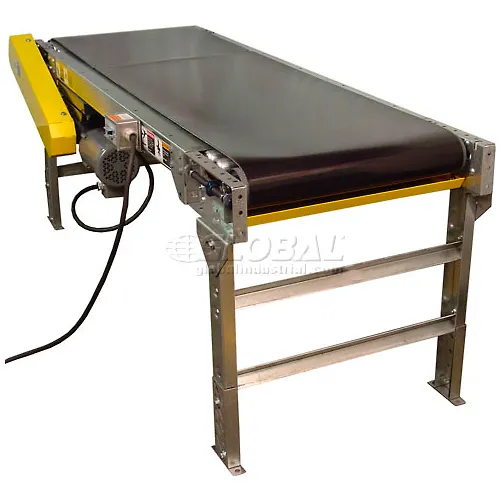

Omni Metalcraft Powered 12"W x 40'L Belt Conveyor without Side Rails BHSE12-0-42-F60-0-0.5-4

Omni Metalcraft Powered 12"W x 40'L Belt Conveyor without Side Rails BHSE12-0-42-F60-0-0.5-4

Item #: WB158897

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

  • 10
  • 20
  • 30
  • 40

40

Frequently Purchased Together

  • Omni Metalcraft Powered 12"W x 40'L Belt Conveyor without Side Rails BHSE12-0-42-F60-0-0.5-4
  • Variable Speed Upgrade for 1/2 Horsepower Omni Metalcraft Belt Conveyor

    $583.00

  • Omni Metalcraft Conveyor Box & Parts Counter 115516 with Photo Eye & Digital Display

    $1,876.00

Price: $8,062.00

Quantity

Customers Also Viewed

Hytrol® Model TL 12'1"L Heavy Duty Slider Bed Conveyor 12-1-TL30 - 24"W Belt

Hytrol® Model TL 12'1"L Heavy Duty Slider Bed Conveyor 12-1-TL30 - 24"W Belt

Hytrol® Model TL 17'1"L Heavy Duty Slider Bed Conveyor 17-1-TL30 - 24"W Belt

Hytrol® Model TL 17'1"L Heavy Duty Slider Bed Conveyor 17-1-TL30 - 24"W Belt

Hytrol® Model TL 17'1"L Heavy Duty Slider Bed Conveyor 17-1-TL42 - 36"W Belt

Hytrol® Model TL 17'1"L Heavy Duty Slider Bed Conveyor 17-1-TL42 - 36"W Belt

Omni Metalcraft Conveyor Box & Parts Counter 115516 with Photo Eye & Digital Display

Omni Metalcraft Conveyor Box & Parts Counter 115516 with Photo Eye & Digital Display

Omni Metalcraft POWER BELT CONVEYOR

Shipped complete, including controls.

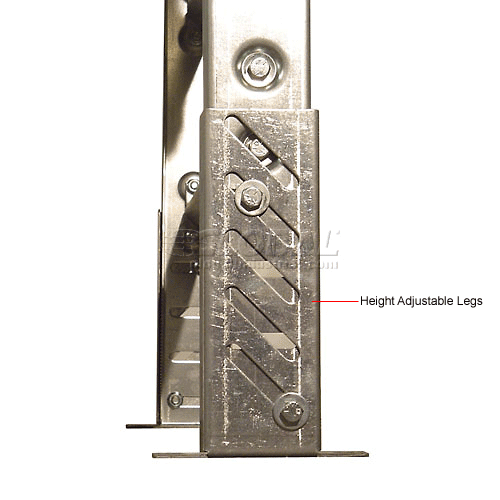

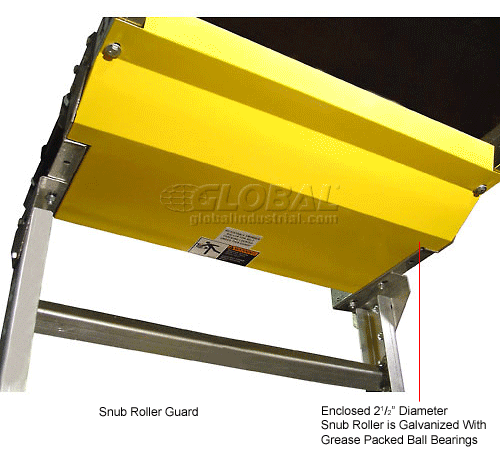

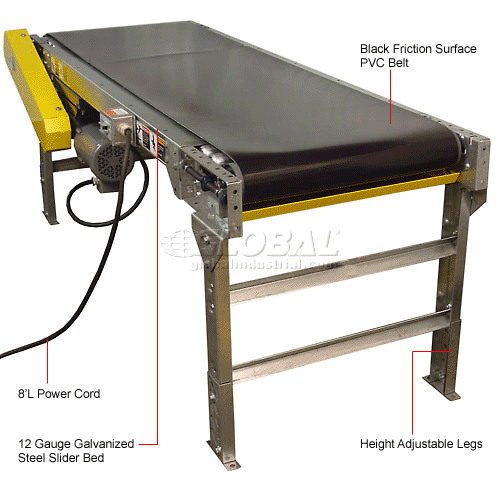

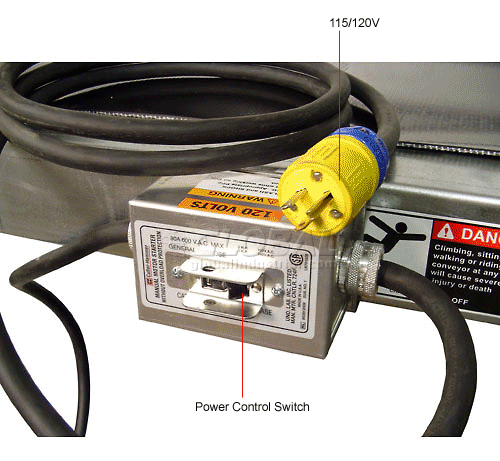

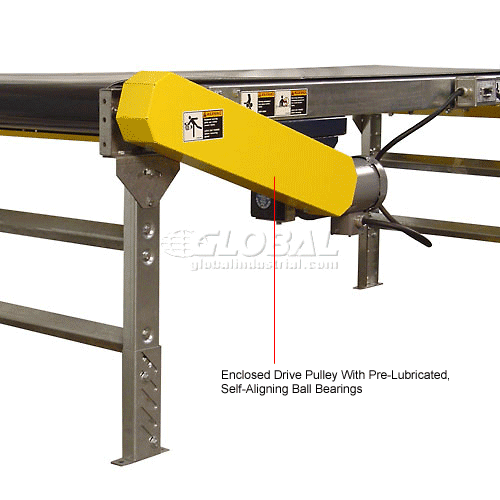

A versatile means of handling a variety of products throughout your facility. Ideal for use in assembly, sorting and inspection. 3-1/2"D x 12 gauge galvanized steel slider bed has black friction surface PVC belt. Includes permanent adjustable leg supports that adjust from 34" to 38" H for added convenience. Standard 60 FPM non-reversing belt speed. Totally enclosed 1/2 HP, 115/230V, 60 Hz single phase motor. Includes 8 ft. power cord and on/off switch for 115V use. Quality features include: crowned and fully lagged 4" drive and tail pulleys with 1-3/16" dia. shafts, 2-1/2" dia. snub roller and 1.9" dia. return rollers, and pre-lubricated, self-aligning ball bearings. Reversible conveyors and replacement parts are available; call for information.

Optional Variable Speed Motor (12-60 FPM) upgrade is available to allow greater flexibility.

Optional Horsepower upgrade is available to increase Capacity (see chart below).

Load Capacity Lbs. Uniformly Distributed Over Length
  Horsepower     12"W Belt     20" - 24"W Belt
  1/2 (Standard) 250 160
  3/4 (Optional) 500 390
  1 (Optional) 740 640
  1-1/2 (Optional) 1230 1090
  2 (Optional) 1680 1580


Weights & Dimensions

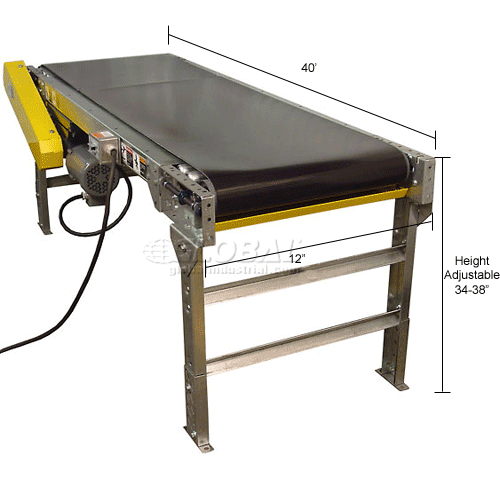

  • Belt Width 12 IN (30.48 cm)
  • Drive Pulley Diameter 4 IN (10.16 cm)
  • Max Leg Height 38 IN (96.52 cm)
  • Belt Length 40 FT (12.19 m)
  • Length 42 FT (12.8 m)
  • Min Leg Height 34 IN (86.36 cm)
  • Weight Capacity 250 LBS (113.64 kg)
  • Overall Bed Width 17 IN (43.18 cm)
  • Weight 798 LBS (362.73 kg)

Product Details

  • Voltage 115/230 V
  • Assembly Required Unassembled
  • Horsepower 1/2 HP
  • Conveyor Speed 60 FPM
  • Type Standard Conveyor
  • Brand Omni Metalcraft
  • Material Steel
  • Style Without Side Rails
  • Manufacturers Part Number BHSE12-0-42-F60-0-0.5-4
  • Conveyor Section Straight
