Global Industrial 6'2" to 24'8"L Steel Skate Wheel Conveyor, Portable & Expandable, 24" W
Item #: WB168113
Ships in One Business Day ? Items ship from warehouse within one business day (Mon. - Fri. excluding holidays). Transit times are determined by shipping method and destination.
Enter postal code for delivery date estimate
Shipping to 10465 change
- 18
- 24
24
- Nylon
- Steel
Steel
Price: $2,884.00
Customers Also Viewed
Retracts to 6'2" to Save Space!

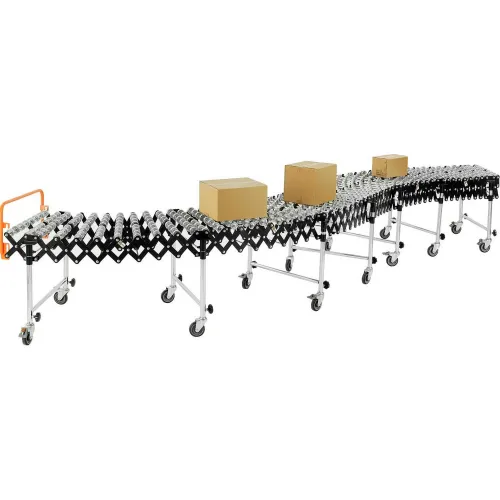

Instantly set up conveyor lines for shipping, receiving, assembly and packaging areas. Flexible, portable gravity conveyor expands from 6'2" to 24'8". Rugged 5/16" steel axles and self-tracking skate wheels with enclosed steel ball bearings offer smooth material flow. 175 lbs. per foot capacity. 1-1/4" (compressed) to 4" (expanded) axle centers for a 7" minimum package size. Seven zinc plated telescopic legs with 4" thermoplastic rubber swivel casters adjust independently from 31-3/4" to 40-1/2" to achieve maximum gravity flow and create banked curves. Units bend around a 27" radius. End legs have locking brakes. Includes convenient box stop and hook couplers to connect additional conveyors. Assembles easily. 1 Year Limited Warranty.
Weights & Dimensions
- Max Leg Height 40-1/2 in (102.87 cm)
- Width 24 in (60.96 cm)
- Inside Radius 27 in (68.58 cm)
- Axle Center 4 in (10.16 cm)
- Adjustable Length 6'2 to 24'8 in
- Min Leg Height 31-3/4 in (80.65 cm)
- Weight Capacity 175 . per ft. lbs
- Weight 474 lbs (215.45 kg)
Product Details
- Leg Sets per Unit 7
- Wheel/Roller Material Steel
- Assembly Required Yes
- Skate Wheels per Axle 8
- Type Portable Flexible Conveyor
- Brand Global Industrial
- Material Steel
- Manufacturers Part Number 168113
- Conveyor Section Flexible
Warranty
- Warranty 1 yr
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: Daniel
Date: September 13, 2019
-
Reviewer: Victor
Date: April 23, 2019
Your review:
Great product, I've had it for several months now and its a solid item -
Reviewer: ANDREW
Date: April 23, 2019
Your review:
This product saved us hours unloading a container. It decreases the amount of people you need as well. -
Reviewer: MICHELLE
Date: April 23, 2019
Your review:
WORKS GREAT -
Reviewer: Christy
Date: April 23, 2019
Your review:
We have several containers a week, and this flexible conveyor has help tremendously!! I would definitely recommend this product!! -
Reviewer: J-Lok
Date: April 23, 2019
Your review:
This skate wheel conveyor is excellent and very well built for the price. Has many useful features and is very easy to move around. The quality of the unit is much better than previous flexible conveyors we have purchased that cost significantly more. Very good investment.
There are 2 questions and 2 answers for this product.
-
Can you purchase replacement adjustable legs with locking wheel and or any component that may need to be replaced
Question Asked By: DON, May 21, 2020
Answer This Question
Question Answered By:
-
Product Expert, May 27, 2020
Hello Don, yes legs set kits with wheels are readily available, as well as replacement skate wheels. Please contact our sales team on the Contact Us Page on our website or by requesting a sales agent via our Live Chat feature. Thank you for your question.
-
-
Will this conveyer work on stairs?
Question Asked By: Diane, April 11, 2019
Answer This Question
Question Answered By:
-
Product Expert, April 11, 2019
Hello Diane, we apologize but the ability in question is not suitable for this unit. Thank you for your time.
-
