Global Industrial™ 6'2" to 24'8"L Nylon Skate Wheel Conveyor, Portable & Expandable, 24" W

Global Industrial™ 6'2" to 24'8"L Nylon Skate Wheel Conveyor, Portable & Expandable, 24" W

Item #: WB168111

(4)

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $3,114.00

Quantity

Customers Also Viewed

Global Industrial™ 6'2" to 24'8"L Steel Skate Wheel Conveyor, Portable & Expandable, 18" W

Global Industrial™ 6'2" to 24'8"L Steel Skate Wheel Conveyor, Portable & Expandable, 18" W

Global Industrial™ 6'2" to 24'8"L Steel Skate Wheel Conveyor, Portable & Expandable, 24" W

Global Industrial™ 6'2" to 24'8"L Steel Skate Wheel Conveyor, Portable & Expandable, 24" W

Global Industrial™ 6'2" to 24'8"L Nylon Skate Wheel Conveyor, Portable & Expandable, 18" W

Global Industrial™ 6'2" to 24'8"L Nylon Skate Wheel Conveyor, Portable & Expandable, 18" W

Global Industrial™ 2'4" to 8'11"L Steel Skate Wheel Conveyor, Portable & Expandable, 14" W

Global Industrial™ 2'4" to 8'11"L Steel Skate Wheel Conveyor, Portable & Expandable, 14" W

Nexelate® Wire Shelf Truck w/Brakes, 1200 lb. Capacity, 36"L x 24"W x 80"H

Nexelate® Wire Shelf Truck w/Brakes, 1200 lb. Capacity, 36"L x 24"W x 80"H

Omni Metalcraft Conveyor Box & Parts Counter 115516 with Photo Eye & Digital Display

Omni Metalcraft Conveyor Box & Parts Counter 115516 with Photo Eye & Digital Display

Global Industrial™ Steel Lower Shelf, 72"W x 14"D, Gray

Global Industrial™ Steel Lower Shelf, 72"W x 14"D, Gray

Global Industrial™ Mop Bucket & Wringer Combo, 38 Qt., Side Press, Yellow

Global Industrial™ Mop Bucket & Wringer Combo, 38 Qt., Side Press, Yellow

Global Industrial™ Upright Dust Pan & Lobby Broom Combo Kit

Global Industrial™ Upright Dust Pan & Lobby Broom Combo Kit

Global Industrial™ Janitor Cart Blue with 25 Gallon Vinyl Bag

Global Industrial™ Janitor Cart Blue with 25 Gallon Vinyl Bag

Global Industrial™ Medium Blue Looped Mop Head, Wide Band

Global Industrial™ Medium Blue Looped Mop Head, Wide Band

Global Industrial™ Industrial Duty Pallet Jack Truck, 27"W x 48"L Forks, 5500 Lb Capacity

Global Industrial™ Industrial Duty Pallet Jack Truck, 27"W x 48"L Forks, 5500 Lb Capacity

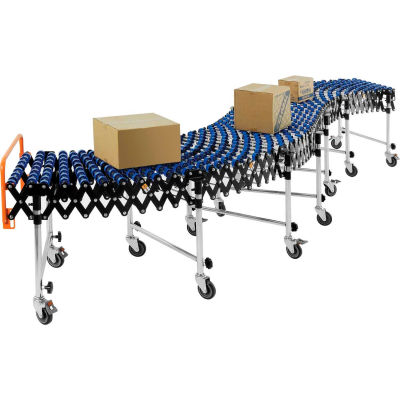

Instantly set up conveyor lines for shipping, receiving, assembly and packaging areas. Flexible, portable gravity conveyor expands from 6'2" to 24'8". Rugged 5/16" steel axles and self-tracking skate wheels with enclosed steel ball bearings offer smooth material flow. 175 lbs. per foot capacity. 1-1/4" (compressed) to 4" (expanded) axle centers for a 7" minimum package size. Seven zinc plated telescopic legs with 4" thermoplastic rubber swivel casters adjust independently from 31-3/4" to 40-1/2" to achieve maximum gravity flow and create banked curves. Units bend around a 27" radius. End legs have locking brakes. Includes convenient box stop and hook couplers to connect additional conveyors. Assembles easily. 1 Year Limited Warranty.

Click here to see our full selection of Portable Conveyors, Flexible Conveyor and Expandable Conveyors.

Weights & Dimensions

  • Max Leg Height 40-1/2 in (102.87 cm)
  • Width 24 in (60.96 cm)
  • Inside Radius 27 in (68.58 cm)
  • Axle Center 4 in (10.16 cm)
  • Adjustable Length 6'2 to 24'8 in
  • Min Leg Height 31-3/4 in (80.65 cm)
  • Weight Capacity 175 . per ft. lbs
  • Weight 474 lbs (215.45 kg)

Product Details

  • Leg Sets per Unit 7
  • Wheel/Roller Material Nylon
  • Assembly Required Unassembled
  • Skate Wheels per Axle 8
  • Type Portable Flexible Conveyor
  • Brand Global Industrial
  • Material Steel
  • Manufacturers Part Number 168111
  • Conveyor Section Flexible

Warranty

  • Warranty 1 yr
Customer Review

5.0

  • 5 Star

    4
  • 4 Star

    0
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: JOE

    Date: April 08, 2021

    Great quality, great value
    Your review:
    This conveyor is well made and handles the demands placed upon it. Factor in the low price point along with the quality and it becomes an easy decision to make. I will buy it again should the need arise.
  • Reviewer: DARRYL

    Date: January 09, 2021

    Skate conveyor
    Your review:
    Awesome skate conveyor. No issues
  • Reviewer: Constance

    Date: April 23, 2019

    Time Saver
    Your review:
    Our efficiency level rose with the addition of this conveyor. Floor loaded trailers are quickly unloaded saving time and money.
  • Reviewer: DIANA

    Date: April 23, 2019

    great time saver
    Your review:
    We use it for totes, and line up the orders for the drivers. It is much easier for them to load the orders onto the truck from height we designate. It easily moves around if we need more or less space.
Product Q & A

There are 2 questions and 2 answers for this product.

  • How much assembly is required? Estimated time to assemble?

    Question Asked By: Archie, April 08, 2020

    Answer This Question

    Question Answered By:

    • Product Expert, April 09, 2020

      Hello, please click on the [Assembly] button located on the product page to see the assembly instructions. While there is no provided time estimate, the steps and parts to attach are within a minimal amount. Thank you for your question.

  • Hi, we just ordered one of these and was wondering if there was side supports to keep boxes on the conveyors? We have to make a sharp turn and have noticed parts starting to work off the edge.

    Question Asked By: Michael, June 24, 2015

    Answer This Question

    Question Answered By:

    • Product Expert, June 24, 2015

      "There would be no side supports available for this particular model because the side supports would have to bend and move with the configuration of the conveyor as this is a flexible conveyor. I'm very sorry about that. "
