Price: $3,114.00
Customers Also Viewed

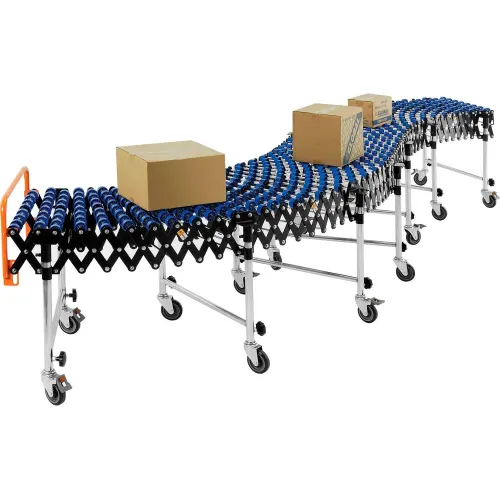

Instantly set up conveyor lines for shipping, receiving, assembly and packaging areas. Flexible, portable gravity conveyor expands from 6'2" to 24'8". Rugged 5/16" steel axles and self-tracking skate wheels with enclosed steel ball bearings offer smooth material flow. 175 lbs. per foot capacity. 1-1/4" (compressed) to 4" (expanded) axle centers for a 7" minimum package size. Seven zinc plated telescopic legs with 4" thermoplastic rubber swivel casters adjust independently from 31-3/4" to 40-1/2" to achieve maximum gravity flow and create banked curves. Units bend around a 27" radius. End legs have locking brakes. Includes convenient box stop and hook couplers to connect additional conveyors. Assembles easily. 1 Year Limited Warranty.
Click here to see our full selection of Portable Conveyors, Flexible Conveyor and Expandable Conveyors.
Click here to see our full selection of Portable Conveyors, Flexible Conveyor and Expandable Conveyors.
Weights & Dimensions
- Max Leg Height 40-1/2 in (102.87 cm)
- Width 24 in (60.96 cm)
- Inside Radius 27 in (68.58 cm)
- Axle Center 4 in (10.16 cm)
- Adjustable Length 6'2 to 24'8 in
- Min Leg Height 31-3/4 in (80.65 cm)
- Weight Capacity 175 . per ft. lbs
- Weight 474 lbs (215.45 kg)
Product Details
- Leg Sets per Unit 7
- Wheel/Roller Material Nylon
- Assembly Required Unassembled
- Skate Wheels per Axle 8
- Type Portable Flexible Conveyor
- Brand Global Industrial
- Material Steel
- Manufacturers Part Number 168111
- Conveyor Section Flexible
Warranty
- Warranty 1 yr
⚌
Photo/Video Gallery
Customer Review
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: JOE
Date: April 08, 2021
-
Reviewer: DARRYL
Date: January 09, 2021
Your review:
Awesome skate conveyor. No issues -
Reviewer: Constance
Date: April 23, 2019
Your review:
Our efficiency level rose with the addition of this conveyor. Floor loaded trailers are quickly unloaded saving time and money. -
Reviewer: DIANA
Date: April 23, 2019
Your review:
We use it for totes, and line up the orders for the drivers. It is much easier for them to load the orders onto the truck from height we designate. It easily moves around if we need more or less space.
Product Q & A
There are 2 questions and 2 answers for this product.
-
How much assembly is required? Estimated time to assemble?
Question Asked By: Archie, April 08, 2020
Answer This Question
Question Answered By:
-
Product Expert, April 09, 2020
Hello, please click on the [Assembly] button located on the product page to see the assembly instructions. While there is no provided time estimate, the steps and parts to attach are within a minimal amount. Thank you for your question.
-
-
Hi, we just ordered one of these and was wondering if there was side supports to keep boxes on the conveyors? We have to make a sharp turn and have noticed parts starting to work off the edge.
Question Asked By: Michael, June 24, 2015
Answer This Question
Question Answered By:
-
Product Expert, June 24, 2015
"There would be no side supports available for this particular model because the side supports would have to bend and move with the configuration of the conveyor as this is a flexible conveyor. I'm very sorry about that. "
-
