Global Industrial™ PORTABLE FLEXIBLE & EXPANDABLE CONVEYOR
Retracts to 6'2" to Save Space!

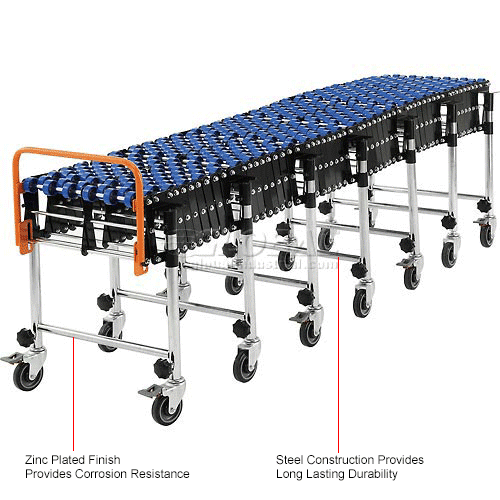

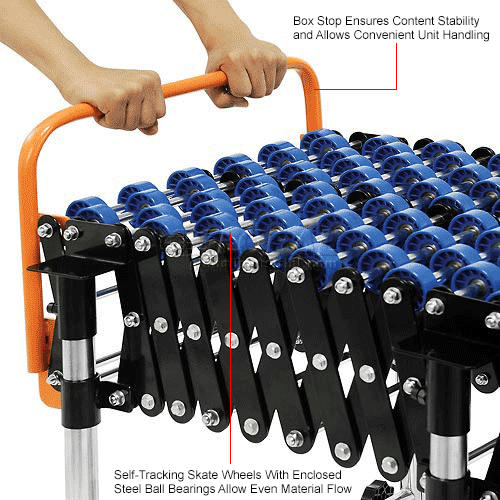

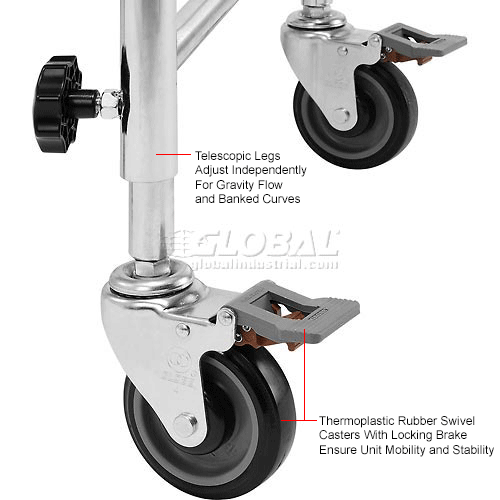

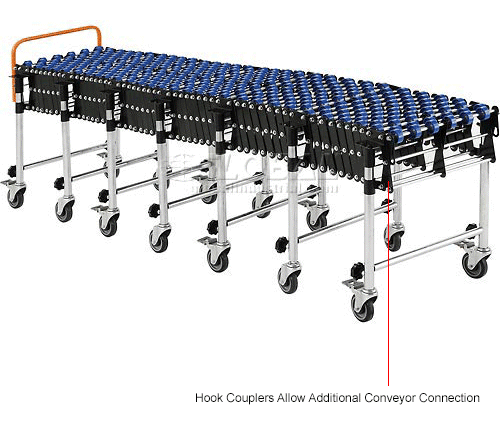

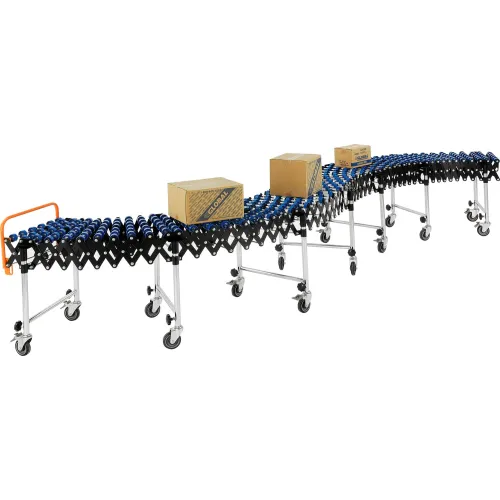

Instantly set up conveyor lines for shipping, receiving, assembly and packaging areas. Flexible, portable gravity conveyor expands from 6'2" to 24'8". Rugged 5/16" steel axles and self-tracking skate wheels with enclosed steel ball bearings offer smooth material flow. 175 lbs. per foot capacity. 1-1/4" (compressed) to 4" (expanded) axle centers for a 7" minimum package size. Seven zinc plated telescopic legs with 4" thermoplastic rubber swivel casters adjust independently from 31-3/4" to 40-1/2" to achieve maximum gravity flow and create banked curves. Units bend around a 27" radius. End legs have locking brakes. Includes convenient box stop and hook couplers to connect additional conveyors. Assembles easily. 1 Year Limited Warranty.
Retracts to 6'2" to Save Space!
Instantly set up conveyor lines for shipping, receiving, assembly and packaging areas. Flexible, portable gravity conveyor expands from 6'2" to 24'8". Rugged 5/16" steel axles and self-tracking skate wheels with enclosed steel ball bearings offer smooth material flow. 175 lbs. per foot capacity. 1-1/4" (compressed) to 4" (expanded) axle centers for a 7" minimum package size. Seven zinc plated telescopic legs with 4" thermoplastic rubber swivel casters adjust independently from 31-3/4" to 40-1/2" to achieve maximum gravity flow and create banked curves. Units bend around a 27" radius. End legs have locking brakes. Includes convenient box stop and hook couplers to connect additional conveyors. Assembles easily. 1 Year Limited Warranty.

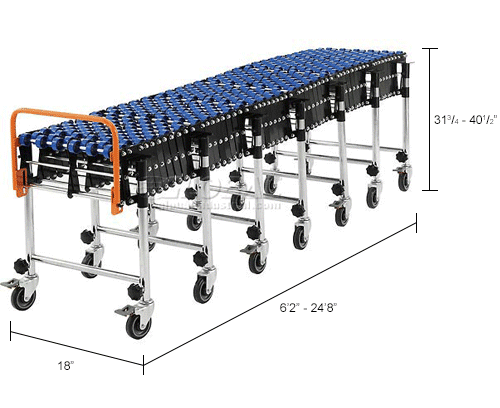

Weights & Dimensions
- Max Leg Height 40-1/2 in (102.87 cm)
- Width 18 in (45.72 cm)
- Inside Radius 27 in (68.58 cm)
- Axle Center 4 in (10.16 cm)
- Adjustable Length 6'2 to 24'8 in
- Min Leg Height 31-3/4 in (80.65 cm)
- Weight Capacity 175 . per ft. lbs
- Weight 474 lbs (215.45 kg)
Product Details
- Leg Sets per Unit 7
- Wheel/Roller Material Nylon
- Assembly Required Unassembled
- Skate Wheels per Axle 6
- Type Portable Flexible Conveyor
- Brand Global Industrial
- Material Steel
- Manufacturers Part Number 168110
- Conveyor Section Flexible
Warranty
- Warranty 1 yr
⚌
