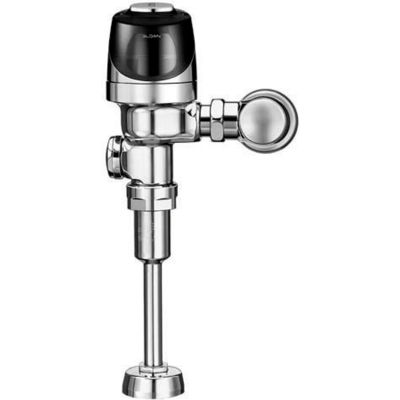

Sloan® G2 Optima Plus® 8186-1 Urinal Sensor Flushometer, Low Consumption 1GPF

Sloan® G2 Optima Plus® 8186-1 Urinal Sensor Flushometer, Low Consumption 1GPF

Item #: WB236685

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

$904.90 up to 25% OFF

Price: $677.00

Quantity

Customers Also Viewed

Sloan® G2 Optima Plus® 8186- 1 Low Consumption (1.0 gpf/3.8 Lpf)

Exposed, Battery Powered, Sensor Operated G2® Model Urinal Flushometer. Sloan G2 Optima Plus® Flushometers activate via multilobular sensor detection to provide the ultimate in sanitary protection and automatic operation. A battery powered infrared sensor sets the flushing mechanism after the user is detected and completes the flush when the user steps away. Touchless, sensor operation eliminates the need for user contact to help control the spread of infectious diseases. The G2 Optima Plus Flushometer is provided with an Override Button to allow a "courtesy flush" for individual user comfort. Sloan installed batteries speed installation and provide years of metered flushing to control the use of water and energy. Batteries can be changed without turning off the water.

Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer for either left or right hand supply with the following features:

  • PERMEX™ Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • Flex Tube Diaphragm designed for improved life and reduced maintenance
  • ADA Compliant OPTIMA Plus® Battery Powered Infrared Sensor for automatic "No Hands" operation
  • Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
  • Latching Solenoid Operator
  • Engineered Metal Cover with replaceable Lens Window
  • Courtesy Flush™ Override Button
  • Four (4) Size AA Batteries factory installed
  • "Low Battery" Flashing LED
  • Infrared Sensor Range Adjustment Screw
  • Initial Set-up Range Indicator Light (first 10 minutes)
  • Chrome Plated Metal Handle Cap
  • 3/4" I.P.S. Screwdriver Bak-Chek® Angle Stop
  • Free Spinning, Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
  • Spud Coupling and Flange for 3/4" Top Spud
  • Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID™ Technology
  • Diaphragm, Stop Seat and Vacuum Breaker to be molded fromPERMEX™ Rubber Compound for Chloramine resistance

    Product Specifications

    • COLOR FINISHChrome
    • ADA COMPLIANTYes
    • BATTERY LIFE3 Years @ 4,000 Flushes/Month
    • BATTERY TYPE(4) AA Alkaline
    • BRANDSloan
    • CONSTRUCTIONBrass
    • CONTROL CIRCUITSolid State, 6 VDC Input, 8 Second Arming Delay, 24 Hour Sentinel Flush
    • FLUSH TYPESensor
    • FOR USE WITHUrinal
    • GALLONS PER FLUSH1 (3.79 l)
    • LIMITED WARRANTY MONTHS36
    • LOW BATTERY INDICATORYes
    • MANUFACTURERS PART NUMBER3250401
    • SENSOR RANGENominal 15" - 30", Adjustable ± 8"
    • SENSOR TYPEActive Infrared
    • SPUD PLACEMENTTop
    • SPUD SIZE INCHES3/4 (1.91 cm)
    • TYPEUrinal
    • WEIGHT LBS8.69 (3.95 kg)
    • FOR USE IN15-100
    • OPERATING PRESSURE15 - 100
    • SENTINEL FLUSHOnce Every 24 Hours After the Last Flush
    • SERIESG2 Optima Plus 8186-1
    • TAILPIECE SIZE3/4
    • LITERS PER FLUSH3.8
