TG3 Shower Valve, Hand Wall Accessories,& Trim

TG3 Shower Valve, Hand Wall Accessories,& Trim

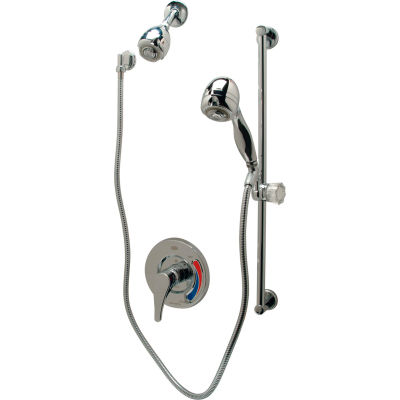

ZURN Z7300-SS-HW-MT Single handle pressure balancing mixing tub and shower unit, ceramic control cartridge with stainless steel balancing piston, built in reverse connection capability, (To reverse the hot and cold inlets simply remove cartridge and turn 180º), two service stops/check stops, and adjustable limit stop. When valve is turned on it must rotate from cold through to the hot position. All exposed trim and handle are metal with polished nickel chrome plated surface. Valve supplied with standard hand/wall shower head, hand/wall unit, 60[1524mm] flexible metal hose 24 [610mm] mounting bar, supply elbow and flange. The valve inlets, shower and tub outlet are all standard with 1/2 NPT female thread connections. THe 1/2 copper sweat options must be specifed as shown below
