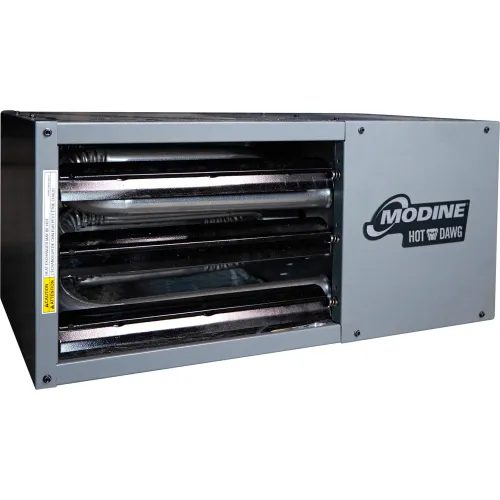

Modine Hot Dawg® Natural Gas Fired Unit Heater Low Profile 60000 BTU

Modine Hot Dawg® Natural Gas Fired Unit Heater Low Profile 60000 BTU

Item #: WB246457

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • Natural to Propane Gas Conversion Kit for Modine Hot Dawg® 30000 to 75000 BTU Unit Heaters

    $82.95

  • Quick-Sling HVAC Swivel Flush Mount With H-Bracket QSWI3000 - 22"L x 35-1/4"W

    $763.80

    Minimum Quantity 4 $190.95 each

  • Quick-Sling HVAC Swivel U Mount With H-Bracket QSWI1000 - 22"L x 26-1/4"W

    $572.85

    Minimum Quantity 3 $190.95 each

Price: $1,399.00

Quantity

MODINE HOT DAWG® LOW PROFILE GAS-FIRED UNIT HEATERS
MODINE Hot Dawg® Natural Gas Fired Unit Heater 60000 BTU
Modine Hot Dawg® Power Vented, Gas-Fired Unit Heaters are ideal for applications requiring a low profile unit. Hot Dawg® heaters can be installed in residential or commercial applications just one inch below the ceiling. Whisper quiet, vibration free operation. 80% thermal efficiency for fuel savings. Non-separated heaters draw makeup air from within the building or room. Made using 22 gauge aluminized steel cabinet housing with corrosion resistant powder coat finish. Permanently-lubricated motor for trouble-free dependability. Includes adjustable louvers and standard finger proof fan guard for safety. Tubular heat exchanger with tubular in-shot burner for reliable performance. Lightweight and easily installs 1" from ceiling with 2 included angle brackets. Heaters allow field wiring connections and include knockouts for quick access to gas and electricity. Power exhaust simplifies side-wall or roof venting with small-diameter vent pipe. CSA certified. Must be installed by a licensed contractor. MADE IN U.S.A. 10 Year Limited Warranty on Heat Exchanger, 1 Year on All Other Parts.

Click below to view the following:

  • BRAND Modine
  • LENGTH INCHES 26-13/16 (68.1 cm)
  • WIDTH INCHES 25 (63.5 cm)
  • HEIGHT INCHES 19 (48.26 cm)
  • CONNECTION SIZE INCHES 1/2 (1.27 cm)
  • FAN DIAMETER INCHES 14 (35.56 cm)
  • CLEARANCE TO ACCESS DOOR INCHES 18 (45.72 cm)
  • CLEARANCE TO COMBUSTIBLES BOTTOM INCHES 1 (2.54 cm)
  • MAXIMUM MOUNTING HEIGHT FEET 12 (3.66 m)
  • WEIGHT LBS 80 (36.36 kg)
  • CONSTRUCTION Steel
  • MANUFACTURER PART# HD60AS111FBAN
  • INPUT (BTU/H) 60000
  • OUTPUT (BTU/H) 48000
  • RPM 1625
  • OUTLET VELOCITY FPM 653
  • AIR TEMPERATURE RISE F° 45
  • VOLTAGE 115
  • HORSEPOWER 1/12
  • HEAT THROW FEET 36 (10.97 m)
  • MADE IN U.S.A. Yes
  • FUEL TYPE Natural Gas
  • MOTOR TYPE Permanent Split Capacitor
  • SAFETY FEATURES Finger Proof Fan Guard
  • TYPE Non-Combustion
  • LISTING, RATING, CERTIFICATION cETLus
  • LIMITED WARRANTY YEARS 1
  • ENTERING AIRFLOW CFM 990
  • COLOR Gray
  • CLEARANCE TO COMBUSTIBLES SIDE INCHES 1 (2.54 cm)
  • CLEARANCE TO COMBUSTIBLES TOP INCHES 1 (2.54 cm)
  • VENT CONNECTOR CLEARANCE 4
  • VENT CONNECTOR SIZE INCHES 3 (7.62 cm)
  • AMPS HIGH 1.2
  • MOTOR AMPS 2.5
Customer Review

Not Yet Reviewed

Product Q & A

There are 1 questions and 1 answer for this product.

  • I have a 32'x38' well insulated shop, what size heater would i need, shop has 10, ceilings

    Question Asked By: chris, February 26, 2015

    Answer This Question

    Question Answered By:

    • Product Expert, February 26, 2015

      To raise the temperature 50 degrees the customer would need 31,392 BTUs. 246457 has more than enough power to heat the customer's shop. It has an output of 48,000 BTUs making this a good fit for the customer's application.
