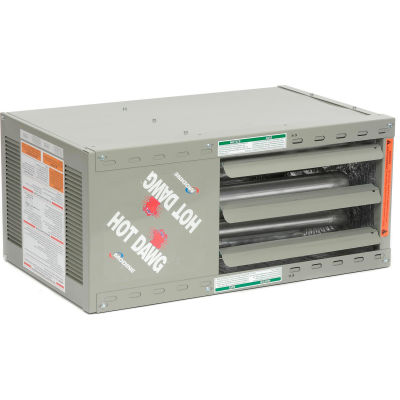

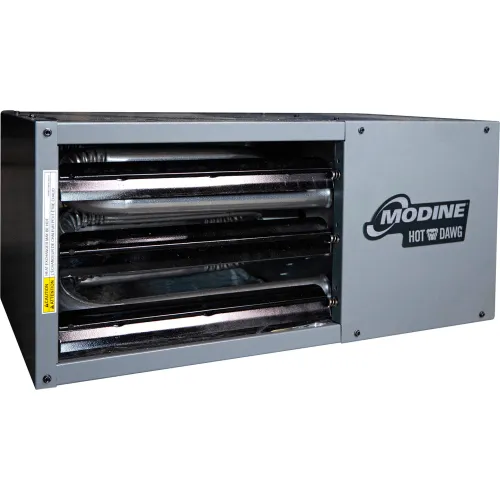

Modine Hot Dawg® Natural Gas Fired Unit Heater Low Profile 45000 BTU

Modine Hot Dawg® Natural Gas Fired Unit Heater Low Profile 45000 BTU

Item #: WB246456

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • Natural to Propane Gas Conversion Kit for Modine Hot Dawg® 30000 to 75000 BTU Unit Heaters

    $82.95

  • Quick-Sling HVAC Swivel Flush Mount With H-Bracket QSWI3000 - 22"L x 35-1/4"W

    $759.80

    Minimum Quantity 4 $189.95 each

  • Quick-Sling HVAC Swivel U Mount With H-Bracket QSWI1000 - 22"L x 26-1/4"W

    $569.85

    Minimum Quantity 3 $189.95 each

Price: $1,187.00

Quantity

MODINE HOT DAWG® LOW PROFILE GAS-FIRED UNIT HEATERS
MODINE Hot Dawg® Natural Gas Fired Unit Heater 45000 BTU
Modine Hot Dawg® Power Vented, Gas-Fired Unit Heaters are ideal for applications requiring a low profile unit. Hot Dawg® heaters can be installed in residential or commercial applications just one inch below the ceiling. Whisper quiet, vibration free operation. 80% thermal efficiency for fuel savings. Non-separated heaters draw makeup air from within the building or room. Made using 22 gauge aluminized steel cabinet housing with corrosion resistant powder coat finish. Permanently-lubricated motor for trouble-free dependability. Includes adjustable louvers and standard finger proof fan guard for safety. Tubular heat exchanger with tubular in-shot burner for reliable performance. Lightweight and easily installs 1" from ceiling with 2 included angle brackets. Heaters allow field wiring connections and include knockouts for quick access to gas and electricity. Power exhaust simplifies side-wall or roof venting with small-diameter vent pipe. CSA certified. Must be installed by a licensed contractor.MADE IN U.S.A. 10 Year Limited Warranty on Heat Exchanger, 1 Year on All Other Parts.

Click below to view the following:

  • BRAND Modine
  • LENGTH INCHES 26-13/16 (68.1 cm)
  • WIDTH INCHES 22 (55.88 cm)
  • HEIGHT INCHES 13-13/64 (33.54 cm)
  • CONNECTION SIZE INCHES 1/2 (1.27 cm)
  • FAN DIAMETER INCHES 10 (25.4 cm)
  • CLEARANCE TO ACCESS DOOR INCHES 18 (45.72 cm)
  • CLEARANCE TO COMBUSTIBLES BOTTOM INCHES 1 (2.54 cm)
  • MAXIMUM MOUNTING HEIGHT FEET 10 (3.05 m)
  • WEIGHT LBS 60 (27.27 kg)
  • CONSTRUCTION Steel
  • MANUFACTURER PART# HD45AS111FBAN
  • INPUT (BTU/H) 45000
  • OUTPUT (BTU/H) 36000
  • RPM 1550
  • OUTLET VELOCITY FPM 749
  • AIR TEMPERATURE RISE F° 46
  • VOLTAGE 115
  • HORSEPOWER 1/15
  • HEAT THROW FEET 27 (8.23 m)
  • MADE IN U.S.A. Yes
  • FUEL TYPE Natural Gas
  • MOTOR TYPE S.P.
  • SAFETY FEATURES Finger Proof Fan Guard
  • TYPE Non-Combustion
  • LISTING, RATING, CERTIFICATION cETLus
  • LIMITED WARRANTY YEARS 1
  • ENTERING AIRFLOW CFM 720
  • COLOR Gray
  • CLEARANCE TO COMBUSTIBLES SIDE INCHES 1 (2.54 cm)
  • CLEARANCE TO COMBUSTIBLES TOP INCHES 1 (2.54 cm)
  • VENT CONNECTOR CLEARANCE 4
  • VENT CONNECTOR SIZE INCHES 3 (7.62 cm)
  • AMPS HIGH 2.4
  • MOTOR AMPS 3.7
Customer Review

Not Yet Reviewed

Product Q & A

There are 4 questions and 4 answers for this product.

  • When hooked up to propane, approximately how much does it use in and hour?

    Question Asked By: January 07, 2013

    Answer This Question

    Question Answered By:

    • Product Expert, January 07, 2013

      The Modine Hot Dawg when hooked to propane would use approx .5 gallons per hour.

  • Is this unit set up to run on propane or natural gas? I need a propane unit. Why does it have a 10' max height mounting limitation? What difference does it make if I need to mount it on a 12' ceiling?

    Question Asked By: February 21, 2012

    Answer This Question

    Question Answered By:

    • Product Expert, February 21, 2012

      The Modine Heater is set to run on natural gas however the optional LP conversion kit Global Industrial model number 246467 can be used for field conversion of the unit to LP. The unit has a 10 foot maximum height based on performance and can work when mounted at 12 feet with lesser performance. A link for the instruction manual and wiring diagrams are located on our website below the product description. The low voltage thermostat is included along with a built-in transformer.

  • Where are the installation instructions/wire diagrams available? Is the thermostat require line voltage or low voltage? If low voltage, do I have to buy a seperate transformer or is it built in?

    Question Asked By: February 21, 2012

    Answer This Question

    Question Answered By:

    • Product Expert, February 21, 2012

      The Modine Heater is set to run on natural gas however the optional LP conversion kit Global Industrial model number 246467 can be used for field conversion of the unit to LP. The unit has a 10 foot maximum height based on performance and can work when mounted at 12 feet with lesser performance. A link for the instruction manual and wiring diagrams are located on our website below the product description. The low voltage thermostat is included along with a built-in transformer.

  • can this item be connected to a thermostat?

    Question Asked By: August 24, 2011

    Answer This Question

    Question Answered By:

    • Product Expert, August 24, 2011

      Field installed thermostats commonly used on the Modine Hot Dawg 45000 BTU Gas Fired Unit Heater (model no. 246456) are single-stage room and two-stage room, digital or a duct thermostats. Visit our website, www.Globalindustrial, for additional product information, instruction manual and wiring diagrams.
