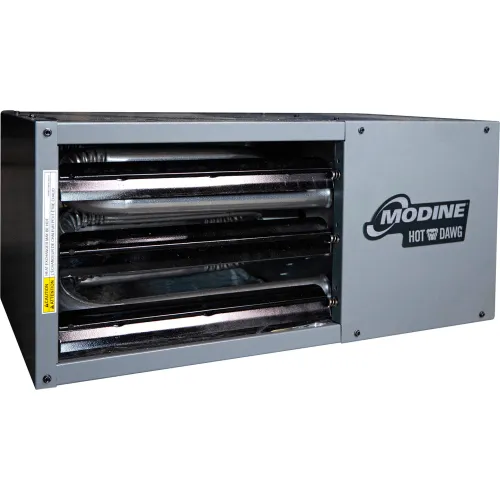

Modine Hot Dawg® Natural Gas Fired Unit Heater Low Profile 30000 BTU

Modine Hot Dawg® Natural Gas Fired Unit Heater Low Profile 30000 BTU

Item #: WB246455

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • Natural to Propane Gas Conversion Kit for Modine Hot Dawg® 30000 to 75000 BTU Unit Heaters

    $82.95

  • Quick-Sling HVAC Swivel Flush Mount With H-Bracket QSWI3000 - 22"L x 35-1/4"W

    $759.80

    Minimum Quantity 4 $189.95 each

  • Quick-Sling HVAC Swivel U Mount With H-Bracket QSWI1000 - 22"L x 26-1/4"W

    $569.85

    Minimum Quantity 3 $189.95 each

Price: $1,239.00

Quantity

MODINE HOT DAWG® LOW PROFILE GAS-FIRED UNIT HEATERS
MODINE Hot Dawg® Natural Gas Fired Unit Heater 30000 BTU
Modine Hot Dawg® Power Vented, Gas-Fired Unit Heaters are ideal for applications requiring a low profile unit. Hot Dawg® heaters can be installed in residential or commercial applications just one inch below the ceiling. Whisper quiet, vibration free operation. 80% thermal efficiency for fuel savings. Non-separated heaters draw makeup air from within the building or room. Made using 22 gauge aluminized steel cabinet housing with corrosion resistant powder coat finish. Permanently-lubricated motor for trouble-free dependability. Includes adjustable louvers and standard finger proof fan guard for safety. Tubular heat exchanger with tubular in-shot burner for reliable performance. Lightweight and easily installs 1" from ceiling with 2 included angle brackets. Heaters allow field wiring connections and include knockouts for quick access to gas and electricity. Power exhaust simplifies side-wall or roof venting with small-diameter vent pipe. CSA certified. Must be installed by a licensed contractor. MADE IN U.S.A. 10 Year Limited Warranty on Heat Exchanger, 1 Year on All Other Parts.

Click below to view the following:

  • BRAND Modine
  • LENGTH INCHES 26-13/16 (68.1 cm)
  • WIDTH INCHES 22 (55.88 cm)
  • HEIGHT INCHES 13-13/64 (33.54 cm)
  • CONNECTION SIZE INCHES 1/2 (1.27 cm)
  • FAN DIAMETER INCHES 10 (25.4 cm)
  • CLEARANCE TO ACCESS DOOR INCHES 18 (45.72 cm)
  • CLEARANCE TO COMBUSTIBLES BOTTOM INCHES 1 (2.54 cm)
  • MAXIMUM MOUNTING HEIGHT FEET 10 (3.05 m)
  • WEIGHT LBS 55 (25 kg)
  • CONSTRUCTION Steel
  • MANUFACTURER PART# HD30AS111FBAN
  • INPUT (BTU/H) 30000
  • OUTPUT (BTU/H) 24000
  • RPM 1550
  • OUTLET VELOCITY FPM 523
  • AIR TEMPERATURE RISE F° 44
  • VOLTAGE 115
  • HORSEPOWER 1/15
  • HEAT THROW FEET 25 (7.62 m)
  • MADE IN U.S.A. Yes
  • FUEL TYPE Natural Gas
  • MOTOR TYPE S.P.
  • SAFETY FEATURES Finger Proof Fan Guard
  • TYPE Non-Combustion
  • LISTING, RATING, CERTIFICATION cETLus
  • LIMITED WARRANTY YEARS 1
  • ENTERING AIRFLOW CFM 505
  • COLOR Gray
  • CLEARANCE TO COMBUSTIBLES SIDE INCHES 1 (2.54 cm)
  • CLEARANCE TO COMBUSTIBLES TOP INCHES 1 (2.54 cm)
  • VENT CONNECTOR CLEARANCE 4
  • VENT CONNECTOR SIZE INCHES 3 (7.62 cm)
  • AMPS HIGH 2.4
  • MOTOR AMPS 3.7
Customer Review

Not Yet Reviewed

Product Q & A

There are 1 questions and 1 answer for this product.

  • Is there a LP conversion kit for this unit?

    Question Asked By: May 06, 2014

    Answer This Question

    Question Answered By:

    • anonymous

      Yes. Global Item # 246467
