Price: $3,466.00
MODINE HIGH-EFFICIENCY II™ GAS-FIRED UNIT HEATERS

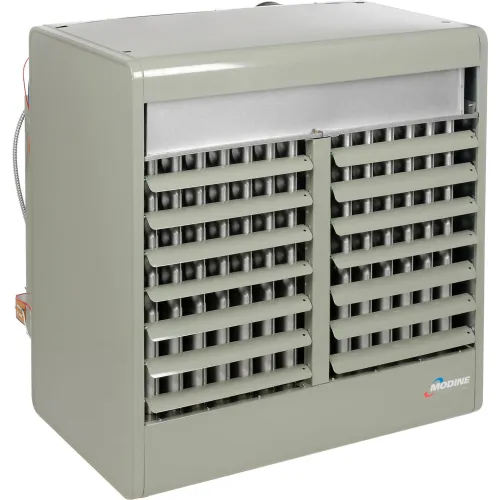

Modine High-Efficiency II™ 400000 BTU Gas-Fired Unit Heater
Modine High-Efficiency II™ Gas-Fired Unit Heaters are quick to install, easy to use and offer excellent thermal efficiency. Ideal for commercial or industrial applications that require high input ratings. Power-exhausted unit heaters provide 80% thermal efficiency to maximize seasonal heating through the use of a collector box and the power exhauster. Non-separated heaters draw makeup air from within the building or room. Made using 20 gauge aluminized steel cabinet housing with an aluminized steel heat exchanger and burner. Power exhaust can be rotated 180°. Unit can be vented vertically or horizontally. 100% shut-off, intermittent pilot-ignition system with continuous retry. 3/4 HP PSC motor. Safety pressure-switch assures safe venting conditions. Operates against 0.5 inches of external static pressure. Includes adjustable louvers, control terminal board, gas controls and fan delay timer. Units can be field-converted to propane. Corrosion resistant baked-on, powder coat finish. Level hanging mechanism allows easy field adjustments. ETL Listed. Must be installed by a licensed contractor. .MADE IN U.S.A.10 years Limited Warranty on Heat Exchanger, 1 year on All Other Parts.
Click below to view the following:
Modine High-Efficiency II™ 400000 BTU Gas-Fired Unit Heater
Modine High-Efficiency II™ Gas-Fired Unit Heaters are quick to install, easy to use and offer excellent thermal efficiency. Ideal for commercial or industrial applications that require high input ratings. Power-exhausted unit heaters provide 80% thermal efficiency to maximize seasonal heating through the use of a collector box and the power exhauster. Non-separated heaters draw makeup air from within the building or room. Made using 20 gauge aluminized steel cabinet housing with an aluminized steel heat exchanger and burner. Power exhaust can be rotated 180°. Unit can be vented vertically or horizontally. 100% shut-off, intermittent pilot-ignition system with continuous retry. 3/4 HP PSC motor. Safety pressure-switch assures safe venting conditions. Operates against 0.5 inches of external static pressure. Includes adjustable louvers, control terminal board, gas controls and fan delay timer. Units can be field-converted to propane. Corrosion resistant baked-on, powder coat finish. Level hanging mechanism allows easy field adjustments. ETL Listed. Must be installed by a licensed contractor. .MADE IN U.S.A.10 years Limited Warranty on Heat Exchanger, 1 year on All Other Parts.
Click below to view the following:
- BRAND Modine
- LENGTH INCHES 38-3/16 (97 cm)
- WIDTH INCHES 40 (101.6 cm)
- HEIGHT INCHES 40-1/4 (102.24 cm)
- CONNECTION SIZE INCHES 3/4 (1.91 cm)
- FAN DIAMETER INCHES 24 (60.96 cm)
- MAXIMUM MOUNTING HEIGHT FEET 19 (5.79 m)
- WEIGHT LBS 418 (190 kg)
- ASSEMBLY Assembled
- CONSTRUCTION Steel
- MANUFACTURER PART# PDP400AE0130FBAN
- INPUT (BTU/H) 400000
- OUTPUT (BTU/H) 320000
- RPM 1125
- OUTLET VELOCITY FPM 1016
- AIR TEMPERATURE RISE F° 54
- VOLTAGE 115
- HORSEPOWER 3/4
- HEAT THROW FEET 69 (21.03 m)
- MADE IN U.S.A. Yes
- FUEL TYPE Natural Gas
- MOTOR TYPE Permanent Split Capacitor
- SAFETY FEATURES Finger Proof Fan Guard
- LISTING, RATING, CERTIFICATION cETLus
- LIMITED WARRANTY YEARS 1
- ENTERING AIRFLOW CFM 5440
- COLOR Gray
⚌
