Modine High-Efficiency II™ Gas Fired Unit Heater, 300000 BTU PDP Series

Modine High-Efficiency II™ Gas Fired Unit Heater, 300000 BTU PDP Series

Item #: WB246465

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $2,768.00

Quantity

MODINE HIGH-EFFICIENCY II™ GAS-FIRED UNIT HEATERS

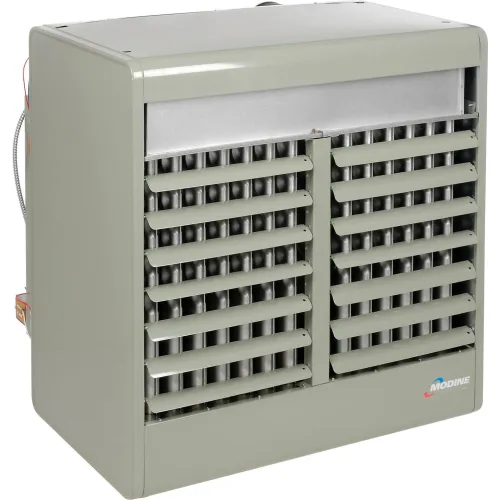

Modine High-Efficiency II™ 300000 BTU Gas-Fired Unit Heater
Modine High-Efficiency II™ Gas-Fired Unit Heaters are quick to install, easy to use and offer excellent thermal efficiency. Ideal for commercial or industrial applications that require high input ratings. Power-exhausted unit heaters provide 80% thermal efficiency to maximize seasonal heating through the use of a collector box and the power exhauster. Non-separated heaters draw makeup air from within the building or room. Made using 20 gauge aluminized steel cabinet housing with an aluminized steel heat exchanger and burner. Power exhaust can be rotated 180°. Unit can be vented vertically or horizontally. 100% shut-off, intermittent pilot-ignition system with continuous retry. 1/2 HP PSC motor. Safety pressure-switch assures safe venting conditions. Operates against 0.5 inches of external static pressure. Includes adjustable louvers, control terminal board, gas controls and fan delay timer. Units can be field-converted to propane. Corrosion resistant baked-on, powder coat finish. Level hanging mechanism allows easy field adjustments. ETL Listed. Must be installed by a licensed contractor. .MADE IN U.S.A.10 years Limited Warranty on Heat Exchanger, 1 year on All Other Parts.

Click below to view the following:

  • BRAND Modine
  • LENGTH INCHES 34-3/4 (88.27 cm)
  • WIDTH INCHES 28-5/8 (72.71 cm)
  • HEIGHT INCHES 40-1/4 (102.24 cm)
  • CONNECTION SIZE INCHES 1/2 (1.27 cm)
  • FAN DIAMETER INCHES 22 (55.88 cm)
  • MAXIMUM MOUNTING HEIGHT FEET 21 (6.4 m)
  • WEIGHT LBS 269 (122.27 kg)
  • ASSEMBLY Assembled
  • CONSTRUCTION Steel
  • MANUFACTURER PART# PDP300AE0130FBAN
  • INPUT (BTU/H) 300000
  • OUTPUT (BTU/H) 240000
  • RPM 1075
  • OUTLET VELOCITY FPM 1123
  • AIR TEMPERATURE RISE F° 50
  • VOLTAGE 115
  • HORSEPOWER 1/2
  • HEAT THROW FEET 74 (22.56 m)
  • MADE IN U.S.A. Yes
  • FUEL TYPE Natural Gas
  • MOTOR TYPE Permanent Split Capacitor
  • SAFETY FEATURES Finger Proof Fan Guard
  • LISTING, RATING, CERTIFICATION cETLus
  • LIMITED WARRANTY YEARS 1
  • ENTERING AIRFLOW CFM 4460
  • COLOR Gray
