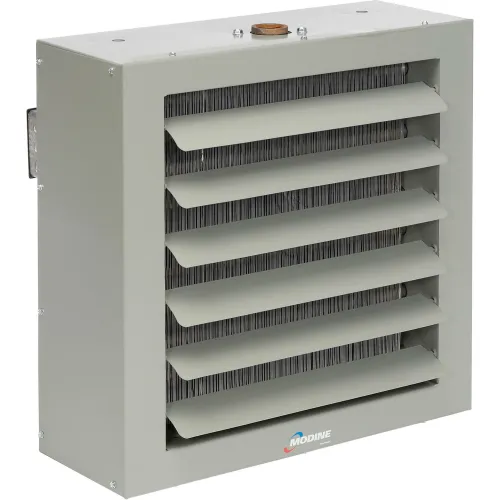

Modine Steam or Hot Water Unit Heater HSB86SB01SA, 86000 BTU

Modine Steam or Hot Water Unit Heater HSB86SB01SA, 86000 BTU

Item #: WB246448

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $1,341.00

Quantity

Customers Also Viewed

MODINE STEAM & HOT WATER HORIZONTAL UNIT HEATERS
Modine 86000 BTU Steam & Hot Water Unit Heater
Modine Horizontal Steam/Hot Water Unit Heaters are ideal for general commercial and industrial applications. Horizontal unit heaters are ideal for heating buildings with large open areas and low ceilings. Used to counter heat loss along outside building walls, especially where windows are present. Utilizes top/bottom inlet/outlet piping to install quickly, easily and at low cost. Built to resist rigorous handling and on-the-job abuse. Steel housing is treated for corrosion resistance and finished with a baked-on, powder coat finish. Totally-enclosed 1/8 HP motor with thermal overload protection ensures long life. Adjustable horizontal louvers direct air flow. Venturi fan-shroud reduces noise. Built-in safety guard provides protection from an exposed fan. Electrical junction box allows easy electrical connections. Must be installed by a licensed contractor. ETL Listed. MADE IN U.S.A. 1 Year Limited Warranty.

Click below to view the following:

  • BRAND Modine
  • LENGTH INCHES 21-1/2 (54.61 cm)
  • WIDTH INCHES 16-1/2 (41.91 cm)
  • HEIGHT INCHES 20-7/16 (51.91 cm)
  • CONNECTION SIZE INCHES 1-1/4 (3.18 cm)
  • FAN DIAMETER INCHES 14 (35.56 cm)
  • MAXIMUM MOUNTING HEIGHT FEET 15 (4.57 m)
  • WEIGHT LBS 52 (23.64 kg)
  • CONSTRUCTION Steel
  • MANUFACTURER PART# HSB86SB01SA
  • INPUT (BTU/H) 2 LB STEAM 60°F ENTERING AIR 86000
  • OUTPUT (BTU) HOT WATER 200°F IN 60°F ENTERING AIR 60200
  • FINAL AIR TEMPERATURE °F (STEAM) 118
  • FINAL AIR TEMPERATURE °F (HOT WATER) 101
  • VOLTAGE 115
  • HORSEPOWER 1/8
  • HEAT THROW FEET 31 (9.45 m)
  • MADE IN U.S.A. Yes
  • WATER FLOW (GPM) 6.3
  • TYPE Horizontal
  • LISTING, RATING, CERTIFICATION ETL Listed
  • LIMITED WARRANTY YEARS 1
  • ENTERING AIRFLOW CFM 1340
  • COLOR Gray
  • HEAT SPREAD FEET --
