MODINE STEAM & HOT WATER HORIZONTAL UNIT HEATERS

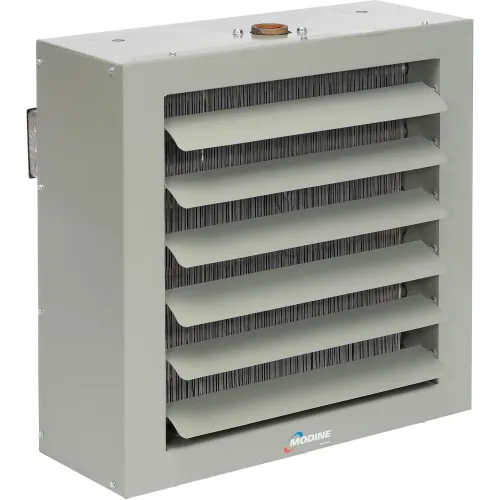

Modine 340000 BTU Steam & Hot Water Unit Heater
Modine Horizontal Steam/Hot Water Unit Heaters are ideal for general commercial and industrial applications. Horizontal unit heaters are ideal for heating buildings with large open areas and low ceilings. Used to counter heat loss along outside building walls, especially where windows are present. Utilizes top/bottom inlet/outlet piping to install quickly, easily and at low cost. Built to resist rigorous handling and on-the-job abuse. Steel housing is treated for corrosion resistance and finished with a baked-on, powder coat finish. Totally-enclosed 1/2 HP motor with thermal overload protection ensures long life. Adjustable horizontal louvers direct air flow. Venturi fan-shroud reduces noise. Built-in safety guard provides protection from an exposed fan. Electrical junction box allows easy electrical connections. Must be installed by a licensed contractor. ETL Listed. MADE IN U.S.A. 1 Year Limited Warranty.
Click below to view the following:
Modine 340000 BTU Steam & Hot Water Unit Heater
Modine Horizontal Steam/Hot Water Unit Heaters are ideal for general commercial and industrial applications. Horizontal unit heaters are ideal for heating buildings with large open areas and low ceilings. Used to counter heat loss along outside building walls, especially where windows are present. Utilizes top/bottom inlet/outlet piping to install quickly, easily and at low cost. Built to resist rigorous handling and on-the-job abuse. Steel housing is treated for corrosion resistance and finished with a baked-on, powder coat finish. Totally-enclosed 1/2 HP motor with thermal overload protection ensures long life. Adjustable horizontal louvers direct air flow. Venturi fan-shroud reduces noise. Built-in safety guard provides protection from an exposed fan. Electrical junction box allows easy electrical connections. Must be installed by a licensed contractor. ETL Listed. MADE IN U.S.A. 1 Year Limited Warranty.
Click below to view the following:
- BRAND Modine
- LENGTH INCHES 44-1/2 (113.03 cm)
- WIDTH INCHES 22-1/2 (57.15 cm)
- HEIGHT INCHES 38-1/2 (97.79 cm)
- CONNECTION SIZE INCHES 1-1/4 (3.18 cm)
- FAN DIAMETER INCHES 24 (60.96 cm)
- MAXIMUM MOUNTING HEIGHT FEET 20 (6.1 m)
- WEIGHT LBS 176 (80 kg)
- CONSTRUCTION Steel
- MANUFACTURER PART# HSB340SB01SA
- INPUT (BTU/H) 2 LB STEAM 60°F ENTERING AIR 340000
- OUTPUT (BTU) HOT WATER 200°F IN 60°F ENTERING AIR 271100
- FINAL AIR TEMPERATURE °F (STEAM) 120
- FINAL AIR TEMPERATURE °F (HOT WATER) 108
- VOLTAGE 115
- HORSEPOWER 1/2
- HEAT THROW FEET 46 (14.02 m)
- MADE IN U.S.A. Yes
- WATER FLOW (GPM) 28.2
- TYPE Horizontal
- LISTING, RATING, CERTIFICATION ETL Listed
- LIMITED WARRANTY YEARS 1
- ENTERING AIRFLOW CFM 5130
- COLOR Gray
- HEAT SPREAD FEET --
⚌
