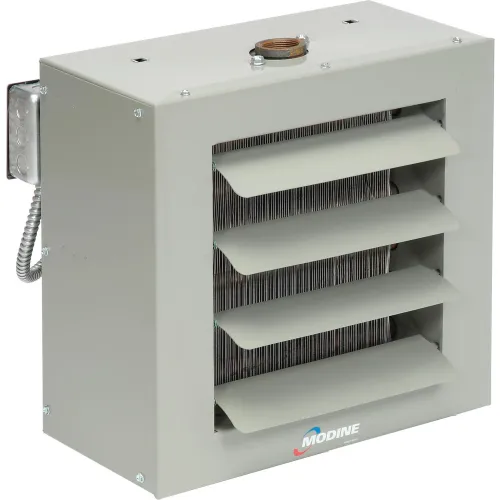

Modine Steam or Hot Water Unit Heater HSB33SB01SA, 33000 BTU

Modine Steam or Hot Water Unit Heater HSB33SB01SA, 33000 BTU

Item #: WB246445

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $994.00

Quantity

Customers Also Viewed

MODINE STEAM & HOT WATER HORIZONTAL UNIT HEATERS
Modine 33000 BTU Steam & Hot Water Unit Heater
Modine Horizontal Steam/Hot Water Unit Heaters are ideal for general commercial and industrial applications. Horizontal unit heaters are ideal for heating buildings with large open areas and low ceilings. Used to counter heat loss along outside building walls, especially where windows are present. Utilizes top/bottom inlet/outlet piping to install quickly, easily and at low cost. Built to resist rigorous handling and on-the-job abuse. Steel housing is treated for corrosion resistance and finished with a baked-on, powder coat finish. Totally-enclosed 1/25 HP motor with thermal overload protection ensures long life. Adjustable horizontal louvers direct air flow. Venturi fan-shroud reduces noise. Built-in safety guard provides protection from an exposed fan. Electrical junction box allows easy electrical connections. Must be installed by a licensed contractor. ETL Listed. MADE IN U.S.A. 1 Year Limited Warranty.

Click below to view the following:

  • BRAND Modine
  • LENGTH INCHES 17-1/2 (44.45 cm)
  • WIDTH INCHES 14-3/4 (37.47 cm)
  • HEIGHT INCHES 16-3/8 (41.59 cm)
  • CONNECTION SIZE INCHES 1-1/4 (3.18 cm)
  • FAN DIAMETER INCHES 12 (30.48 cm)
  • MAXIMUM MOUNTING HEIGHT FEET 10 (3.05 m)
  • WEIGHT LBS 34 (15.45 kg)
  • CONSTRUCTION Steel
  • MANUFACTURER PART# HSB33SB01SA
  • INPUT (BTU/H) 2 LB STEAM 60°F ENTERING AIR 33000
  • OUTPUT (BTU) HOT WATER 200°F IN 60°F ENTERING AIR 21700
  • FINAL AIR TEMPERATURE °F (STEAM) 108
  • FINAL AIR TEMPERATURE °F (HOT WATER) 91
  • VOLTAGE 115
  • HORSEPOWER 1/25
  • HEAT THROW FEET 21 (6.4 m)
  • MADE IN U.S.A. Yes
  • WATER FLOW (GPM) 2.3
  • TYPE Horizontal
  • LISTING, RATING, CERTIFICATION ETL Listed
  • LIMITED WARRANTY YEARS 1
  • ENTERING AIRFLOW CFM 630
  • COLOR Gray
  • HEAT SPREAD FEET --
Customer Review

Not Yet Reviewed

Product Q & A

There are 1 questions and 1 answer for this product.

  • what is the sound rating?

    Question Asked By: JP, November 14, 2019

    Answer This Question

    Question Answered By:

    • Product Expert, November 19, 2019

      Hello, the heater sound rating is approximately 60 dB which is comparable to that of an air conditioner. Thank you for your question.
