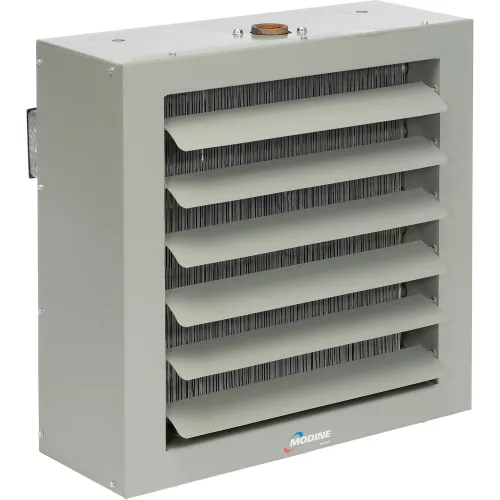

Modine 193000 BTU Steam & Hot Water Unit Heater
Modine Horizontal Steam/Hot Water Unit Heaters are ideal for general commercial and industrial applications. Horizontal unit heaters are ideal for heating buildings with large open areas and low ceilings. Used to counter heat loss along outside building walls, especially where windows are present. Utilizes top/bottom inlet/outlet piping to install quickly, easily and at low cost. Built to resist rigorous handling and on-the-job abuse. Steel housing is treated for corrosion resistance and finished with a baked-on, powder coat finish. Totally-enclosed 1/3 motor with thermal overload protection ensures long life. Adjustable horizontal louvers direct air flow. Venturi fan-shroud reduces noise. Built-in safety guard provides protection from an exposed fan. Electrical junction box allows easy electrical connections. Must be installed by a licensed contractor. ETL Listed. MADE IN U.S.A. 1 Year Limited Warranty.
Click below to view the following:
- BRAND Modine
- LENGTH INCHES 30-1/2 (77.47 cm)
- WIDTH INCHES 17-3/4 (45.09 cm)
- HEIGHT INCHES 30-1/2 (77.47 cm)
- CONNECTION SIZE INCHES 1-1/4 (3.18 cm)
- FAN DIAMETER INCHES 22 (55.88 cm)
- MAXIMUM MOUNTING HEIGHT FEET 18 (5.49 m)
- WEIGHT LBS 98 (44.55 kg)
- CONSTRUCTION Steel
- MANUFACTURER PART# HSB193SB01SA
- INPUT (BTU/H) 2 LB STEAM 60°F ENTERING AIR 193000
- OUTPUT (BTU) HOT WATER 200°F IN 60°F ENTERING AIR 143000
- FINAL AIR TEMPERATURE °F (STEAM) 121
- FINAL AIR TEMPERATURE °F (HOT WATER) 105
- VOLTAGE 115
- HORSEPOWER 1/3
- HEAT THROW FEET 38 (11.58 m)
- MADE IN U.S.A. Yes
- WATER FLOW (GPM) 14.9
- TYPE Horizontal
- LISTING, RATING, CERTIFICATION ETL Listed
- LIMITED WARRANTY YEARS 1
- ENTERING AIRFLOW CFM 2900
- COLOR Gray
- HEAT SPREAD FEET --
There are 1 questions and 1 answer for this product.
-
I'm looking to put this in an enviromental chamber. I was wondering if these have been used in that type of application before.
Question Asked By: ryan, December 01, 2012
Answer This Question
Question Answered By:
-
Product Expert, December 01, 2012
A clear understanding of the purpose may be helpful to determine if a model with an explosion proof motor would be more applicable. Reference model B631187 or B631211.
-
