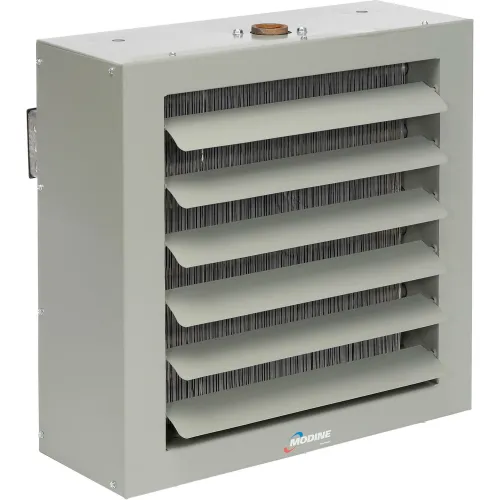

Modine Steam or Hot Water Unit Heater HSB165SB01SA, 165000 BTU

Modine Steam or Hot Water Unit Heater HSB165SB01SA, 165000 BTU

Item #: WB246451

(1)

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $2,097.00

Quantity

Customers Also Viewed

MODINE STEAM & HOT WATER HORIZONTAL UNIT HEATERS
Modine 165000 BTU Steam & Hot Water Unit Heater
Modine Horizontal Steam/Hot Water Unit Heaters are ideal for general commercial and industrial applications. Horizontal unit heaters are ideal for heating buildings with large open areas and low ceilings. Used to counter heat loss along outside building walls, especially where windows are present. Utilizes top/bottom inlet/outlet piping to install quickly, easily and at low cost. Built to resist rigorous handling and on-the-job abuse. Steel housing is treated for corrosion resistance and finished with a baked-on, powder coat finish. Totally-enclosed 1/3 HP motor with thermal overload protection ensures long life. Adjustable horizontal louvers direct air flow. Venturi fan-shroud reduces noise. Built-in safety guard provides protection from an exposed fan. Electrical junction box allows easy electrical connections. Must be installed by a licensed contractor. ETL Listed. MADE IN U.S.A. 1 Year Limited Warranty.

Click below to view the following:

  • BRAND Modine
  • LENGTH INCHES 30-1/2 (77.47 cm)
  • WIDTH INCHES 17-3/4 (45.09 cm)
  • HEIGHT INCHES 30-1/2 (77.47 cm)
  • CONNECTION SIZE INCHES 1-1/4 (3.18 cm)
  • FAN DIAMETER INCHES 22 (55.88 cm)
  • MAXIMUM MOUNTING HEIGHT FEET 19 (5.79 m)
  • WEIGHT LBS 92 (41.82 kg)
  • CONSTRUCTION Steel
  • MANUFACTURER PART# HSB165SB01SA
  • INPUT (BTU/H) 2 LB STEAM 60°F ENTERING AIR 165000
  • OUTPUT (BTU) HOT WATER 200°F IN 60°F ENTERING AIR 130900
  • FINAL AIR TEMPERATURE °F (STEAM) 106
  • FINAL AIR TEMPERATURE °F (HOT WATER) 96
  • VOLTAGE 115
  • HORSEPOWER 1/3
  • HEAT THROW FEET 40 (12.19 m)
  • MADE IN U.S.A. Yes
  • WATER FLOW (GPM) 13.6
  • TYPE Horizontal
  • LISTING, RATING, CERTIFICATION ETL Listed
  • LIMITED WARRANTY YEARS 1
  • ENTERING AIRFLOW CFM 3240
  • COLOR Gray
  • HEAT SPREAD FEET --
Customer Review

5.0

  • 5 Star

    1
  • 4 Star

    0
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Scott

    Date: December 16, 2020

    Very satisfied. Highly recommended.
    Your review:
    We run steam through it in the winter and cooling water in the summer. It makes a big difference to the working conditions where we have them installed. We have about ten of them in various location throughout the plant. .
