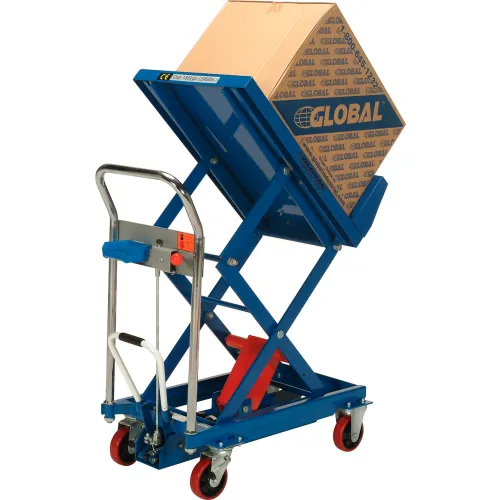

MOBILE LIFT AND TILT SCISSOR LIFT TABLE

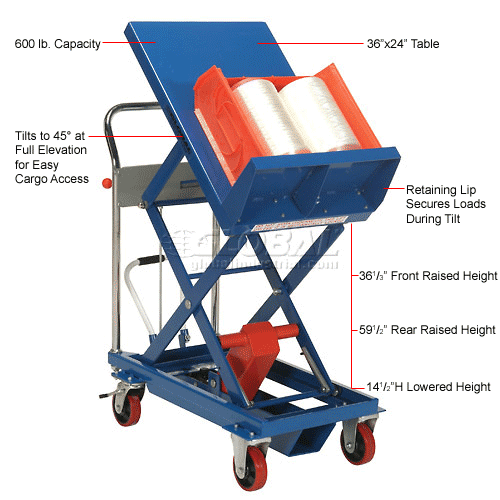

Tilts to 45 degrees for Easy Access

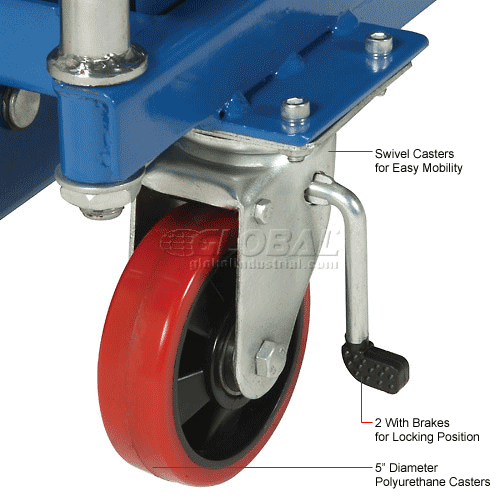

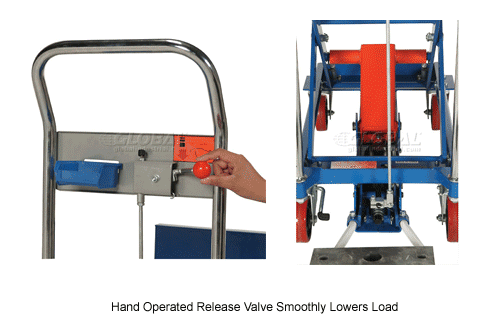

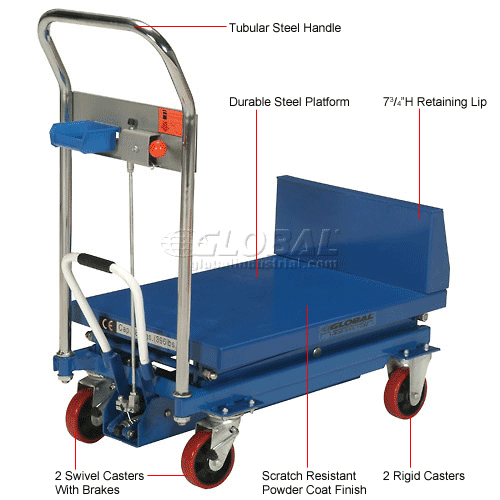

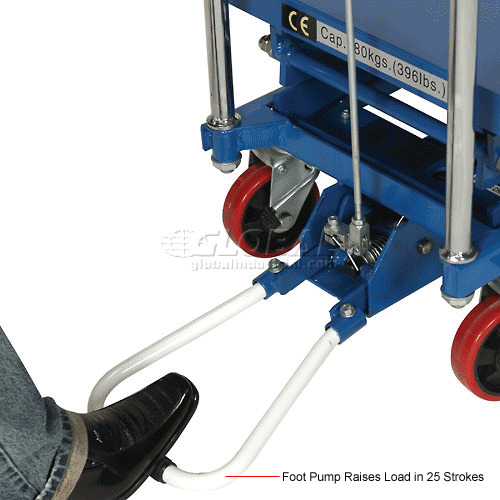

Allows operator to feed and unload parts from tote boxes or containers quickly and easily. Reduces risk of injury associated with lifting, bending and reaching. As the strong steel platform is raised, it automatically tilts to 45 degrees at full elevation, providing optimum positioning of the load. Reliable foot activated hydraulic pump provides smooth lift and tilt. Front has 7-3/4" retaining lip which secures load during tilt. Hand operated release valve lowers load smoothly. Slip-resistant handle grip and pedal surfaces. Rolls easily on 2 swivel (with brakes), 2 rigid 5" polyurethane casters. Scratch-resistant powder coat finish. 2 Year Limited Warranty.
Tilts to 45 degrees for Easy Access
Allows operator to feed and unload parts from tote boxes or containers quickly and easily. Reduces risk of injury associated with lifting, bending and reaching. As the strong steel platform is raised, it automatically tilts to 45 degrees at full elevation, providing optimum positioning of the load. Reliable foot activated hydraulic pump provides smooth lift and tilt. Front has 7-3/4" retaining lip which secures load during tilt. Hand operated release valve lowers load smoothly. Slip-resistant handle grip and pedal surfaces. Rolls easily on 2 swivel (with brakes), 2 rigid 5" polyurethane casters. Scratch-resistant powder coat finish. 2 Year Limited Warranty.
Weights & Dimensions
- Wheel Diameter 5 in (12.7 cm)
- Platform Length 36 in (91.44 cm)
- Width 24 in (60.96 cm)
- Platform Width 24 in (60.96 cm)
- Length 36 in (91.44 cm)
- Lowered Height 14-1/2 in (36.83 cm)
- Caster Size 5 in (12.7 cm)
- Raised Height 36 Front, 59 Rear in
- Weight Capacity 600 lbs (272.73 kg)
- Weight 331 lbs (150.45 kg)
Product Details
- Operation Manual
- Assembly Required No
- Type Single Scissor Lift Table
- Seconds/Stroke Strokes
- Material Steel
- Wheel Type Polyurethane
- Lift Time 23 Strokes
- Lift Type Hydraulic
- Brand Global Industrial
- Control Foot Operated
- Manufacturers Part Number 168080
- Color Blue
Warranty
- Warranty 2 yr
⚌
Photo/Video Gallery
Customer Review
Product Q & A
There are 1 questions and 1 answer for this product.
-
I need to know what the maim frame width is.the frame is what the wheels are attached to. I know that the platform is 24 wide and 36 long
Question Asked By: DAVID, August 08, 2016
Answer This Question
Question Answered By:
-
anonymous
Hello, The overall size of the lift is 42" x 27". Thank you for your interest in our product!
-
